Overview; Specifications; Features; Installation Instructions - Altronix NetWay1512 Installation Manual

Altronix NetWay1512 and NetWay3012 adapters convert PoE or PoE+ into a 12VDC output and pass IP data.
NetWay1512:
• 12VDC/15W adapter for non-PoE compliant
IP devices.
• PoE Mode "B" compliant.
Agency Listings:
• UL 60950-1 Information Technology Equipment.
• CE European Conformity.
NetWay1512/NetWay3012 is compatible with PoE+ switches or midspans.
The unit is not intended to be connected to outside plant leads.

NetWay1512 for 12VDC IP Devices up to 15W:

1. Mount NetWay1512 in proximity to IP device (Fig. 1, pg. 2). Affix one side of velcro (supplied) to
NetWay1512 and place the second side of the velcro in the desired location.
2. Connect structured cable from port marked [PoE IN] on NetWay1512 to any ports marked [OUT] of NetWay1,
NetWay8, NetWay8M, NetWay16, or NetWay16M (Fig. 1, pg. 2).
3. Connect structured cable from port marked [Data OUT] on NetWay1512 to the IP device (Fig. 1, pg. 2).
4. Connect 12VDC output from NetWay1512 terminals marked [+ 12VDC Output –] to the power input of the
IP device (Fig. 1, pg. 2). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay1512 under normal conditions (Fig. 1, pg. 2).

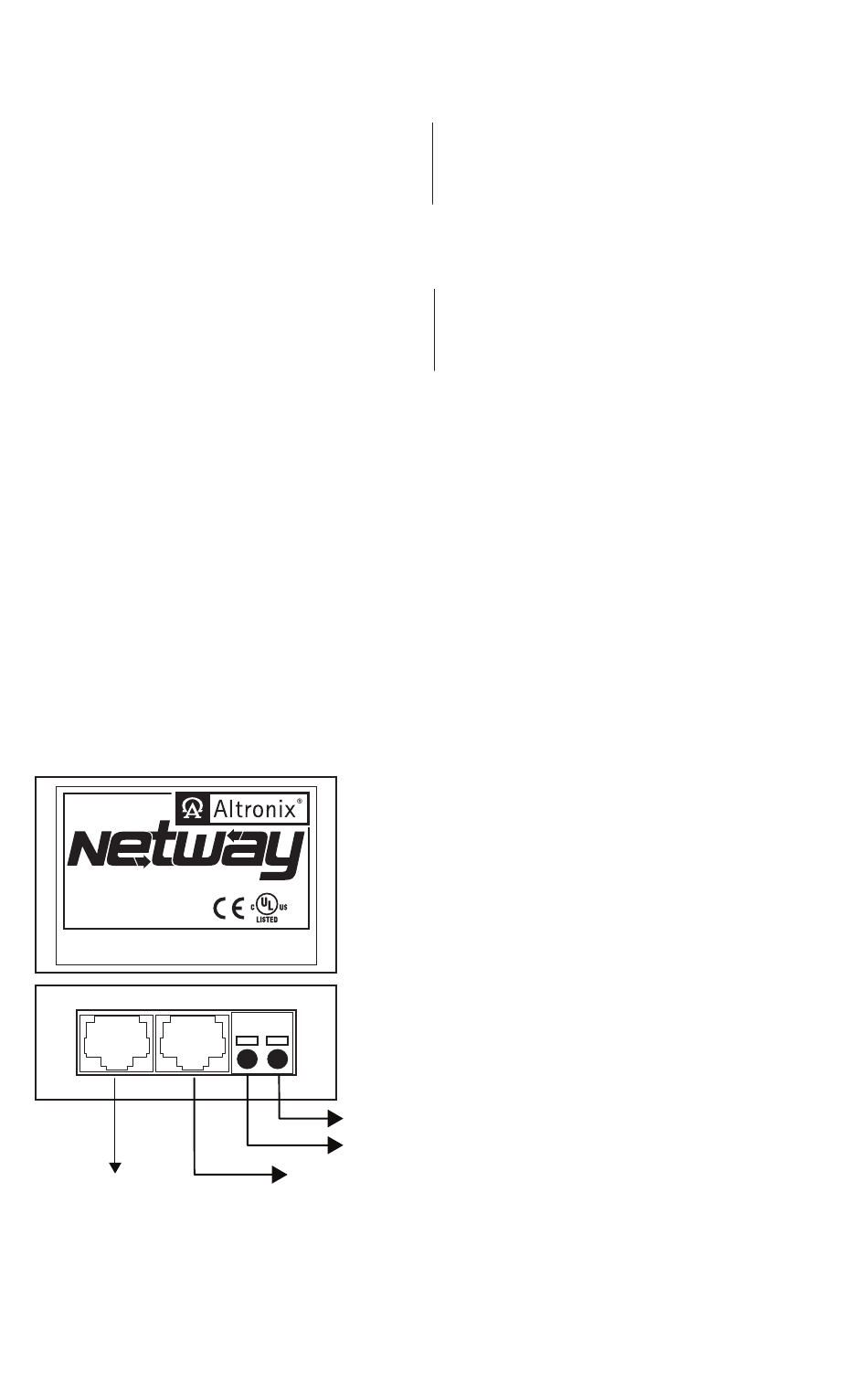

Fig. 1
Brooklyn, NY, U.S.A.
Netway1512
Adapter
www.altronix.com
PoE IN Data OUT
Structured Cable from
NetWay1, NetWay8,
NetWay8M, NetWay16
or NetWay16M
- 2 -

Overview:

Specifications:

Features:

Installation Instructions:

I.T.E.
43KC
12VDC
+ Output –
12VDC
--
Power to
+
Device
Structured Cable
from IP Device
NetWay3012:
• 12VDC/30W adapter for non-PoE compliant
IP devices.
• PoE+ Mode "A / B" compliant.
Additional Features:
• Power LED indicator.
• Compact insulated housing.
• Plug-and-play installation.
NetWay1512 / NetWay3012 Installation Guide
