Terminal Panel - NEC MultiSync P402 User Manual

40" professional-grade large-screen display.
Hide thumbs

Advertisement

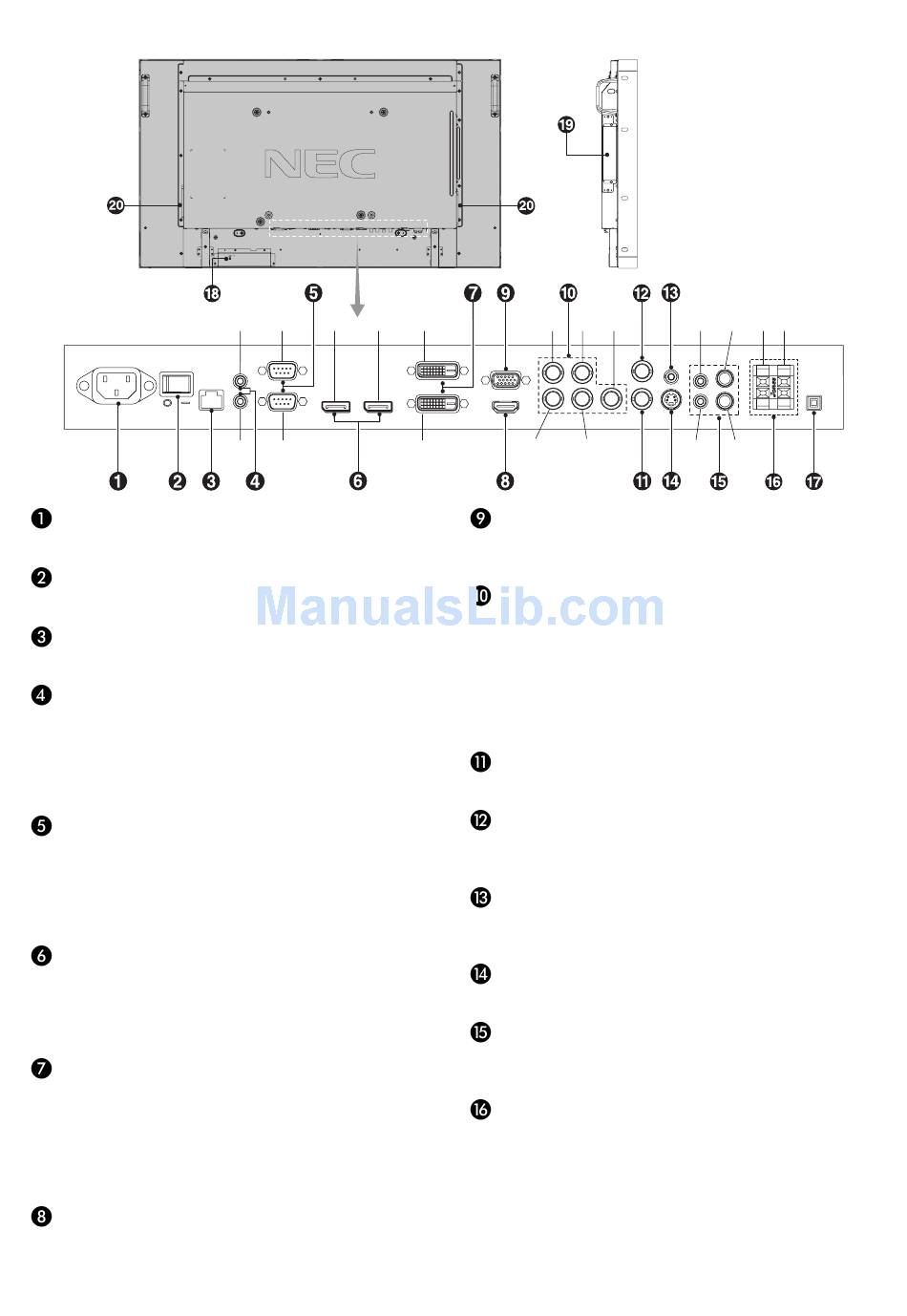

Terminal Panel

AC IN connector
Connects with the supplied power cord.
Main Power Switch
On/Off switch to turn main power ON/OFF.
LAN port (RJ-45)
LAN connection. See page 31.
REMOTE IN/OUT
Use the optional wired remote control by connecting it to your
monitor.
NOTE: When you use Remote IN/OUT, IR CONTROL in OSD
menu should be NORMAL.
NOTE: Do not use this connector unless specifi ed.
RS-232C (D-Sub 9 pin)
IN connector: Connect RS-232C input from external
equipment such as a PC in order to control RS-232C
functions.
OUT connector: Connect RS-232C output. To connect
multiple MultiSync monitors via RS-232C daisy Chain.
DISPLAYPORT connector
IN connector: To input DisplayPort signals.
OUT connector: To output DisplayPort signals.
NOTE: DisplayPort connectors are for image only. No sound
comes out.
DVI (DVI-D)
IN connector: To input digital RGB signals from a computer
or HDTV device having a digital RGB output.
* This connector does not support analog input.
OUT connector: To output the DVI signal from either DVI IN
or HDMI connection. To output the DVI signal from the HDMI
connection, the HDMI input must be selected.
HDMI connector
To input digital HDMI signals.
Out
Out
Out
In
In
In
H
V
Out
(IN)
(IN)
In
R, Cr/Pr
G, Y, VIDEO
(IN)
(IN)
VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment.
RGB/HV IN [R, G, B, H, V] (BNC)*
To input analog RGB signals or signals from other RGB
equipment.
This is also to connect equipment such as a DVD player,
HDTV device and Set-Top-Box. Sync-on-Green signal can be
connected to the G connector.
This input can be used with an RGB, DVD/HD or Video
source. Please select signal type in TERMINAL SETTING.
VIDEO1 IN connector (BNC)*
To input a composite video signal.
VIDEO OUT connector (BNC)
To output the composite video signal from the VIDEO IN
connector.
AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, 3 and
HDMI to an external device (stereo receiver, amplifi er, etc.).
S-VIDEO IN connector (Mini DIN 4 pin)
To input the S-video (Y/C separate signal).
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a
computer, VCR or DVD player.
EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2, 3 and HDMI.
Red terminal is plus (+).
Black terminal is minus (-).
Note: This speaker terminal is for 15W + 15W (8 ohm)
speaker.
English-8
B, Cb/Pb
L/R
L
(IN)
(IN2)
(IN3)
R
L/R
R
(IN1)
(IN3)
L
