P402 Installation Guide
40" LCD Display
Contents:

Product Description

Type:
Resolution:
Aspect Ratio:
FCC:
Power Consumption:
BTU's:
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.

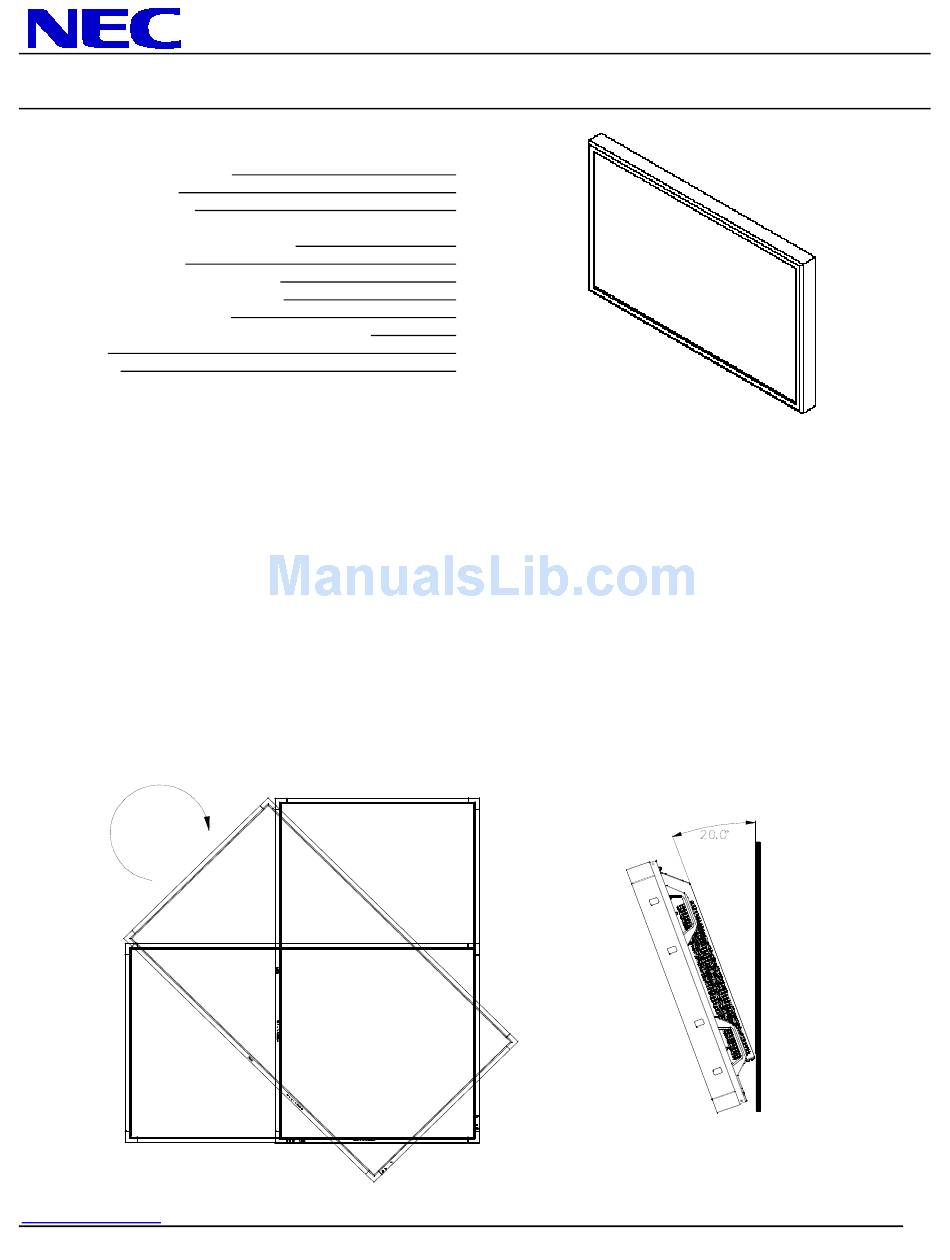

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape/Portrait: 20deg
CLOCKWISE ROTATION ONLY
www.necdisplay.com
LCD Display
1920 x 1080
16:9
Class B
145W (typ)
494.76 BTU/hour
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 9
Screen Surface:
Dimensions without stand: 36.2"(W) x 21.0"(H) x 4.1"(D)
Dimensions with stand:
Weight without stand:
Weight with stand:
MAXIMUM TILT ANGLE
Rev 1.0
Anti-Reflective
41.6"(W) x 25.4"(H) x 13.8" (D)
62.8 lbs / 28.5 kg
66.8 lbs / 30.3 kg
P462
Page 1 of 9

Advertisement

Table of Contents
loading

  Also See for NEC P402

  Related Manuals for NEC P402

  Summary of Contents for NEC P402

  • Page 1: Table Of Contents

    Tilt Angle and Rotation Below are the maximum angles that the monitor can be tilted in the landscape position only. Landscape/Portrait: 20deg CLOCKWISE ROTATION ONLY www.necdisplay.com NEC Display Solutions of America, Inc. Page 1 Page 1 Page 2 Page 3...
  • Page 2: Ventilation Requirements

    The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Display dimensions: www.necdisplay.com P462 Page 3 of 9...
  • Page 4: Rear & Bottom

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Display dimensions (cont.): www.necdisplay.com P462 Page 4 of 9...
  • Page 5: Display Dimensions W/Optional Stand

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Dimensions with optional stand: www.necdisplay.com P462 Page 5 of 9...
  • Page 6: Optional Table Top Stand Dimensions

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Optional Table Top Stand Dimensions (ST-4020): www.necdisplay.com P462 Page 6 of 9...
  • Page 7: Optional Speaker Dimensions

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Optional Speaker Dimensions (SP-4046PV): www.necdisplay.com P462 Page 7 of 9...
  • Page 8: Dimensions With Optional Wall Mount (Wmk-3257)

    NEC Display Solutions of America, Inc. P402 Installation Guide 40” LCD Display Rev 1.0 Dimensions with Optional Wall Mount Kit (WMK3257): NOTE: Vertical rails on WMK-3257 are shown with 400mm extension rail attached. Extension rails included with mount. www.necdisplay.com P462...
  • Page 9: Input Panels

    SCREEN MODE: NORMAL FULL WIDE ZOOM AUTO SETUP EXECUTE FILM MODE AUTO NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable. Cable Connection: Communication Protocol: Interface: RS-232C Communication: Asynchronous Baud Rate: 9600 bps Data Length:...
