MODEL # 2170
Visit our EarthWay
website to see the
assembly video
Prior to assembly, you will need:
Needle nose pliers
#2 Phillips screwdriver
Two 7/16" adjustable or
box wrenches
2170_M52164_RevMar2021

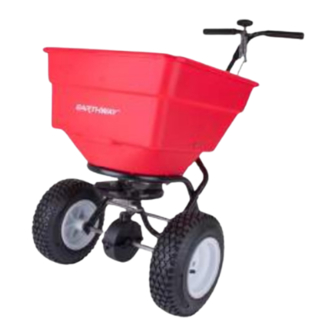

Commercial Broadcast Spreader
with Side Spread Control
ASSEMBLY INSTRUCTIONS
SIDE SPREAD CONTROL
SIDE SPREAD CONTROL
SIDE SPREAD CONTROL
SIDE SPREAD CONTROL
Your EarthWay spreader includes a
patented feature to prevent fertilizer from
being spread to the left side. To activate this
feature, slide the lever below the hopper to the back (if
standing behind the spreader) and position the left wheel
6"-12" from your sidewalk or border. While activated,
the spreader will not waste fertilizer like competitor
designs. Competitor deflectors leave 7X the fertilizer
inside the wheels from blocking all the material leaving
the impeller.
ASSEMBLY HARDWARE
ASSEMBLY HARDWARE
ASSEMBLY HARDWARE
ASSEMBLY HARDWARE
AGITATOR
Qty 2 NUT
BUSHING
¼" X 1"
Qty 2
¼" X 1 ½"
Qty 4
BEARING
SPREADER COMPONENTS
SPREADER COMPONENTS
SPREADER COMPONENTS
SPREADER COMPONENTS
HANDLES
AXLE
GEAR BOX
SPACER
Qty 15 LOCK NUT
LG & SM
¼" X 1 ½"
COTTER PIN
Qty 4
¼" X 2"
Qty 5
¼" X 2 1/4"
Qty 2
HOPPER
FRAME
GUAGE
METER
REST
ROD
X-BRACE
PIVOT
IMPELLER
PAGE 1
Advertisement
Related Manuals for EarthWay 2170-XL
Summary of Contents for EarthWay 2170-XL
- Page 1 SIDE SPREAD CONTROL SIDE SPREAD CONTROL SIDE SPREAD CONTROL SIDE SPREAD CONTROL Visit our EarthWay Your EarthWay spreader includes a website to see the patented feature to prevent fertilizer from assembly video being spread to the left side. To activate this...
-
Page 2: Helpful Hints
Assembly and Operation Instructions HELPFUL HINTS Read the directions before assembly. If your spreader does not spread evenly, be sure “FRONT” on the GEARBOX points to the front of the spreader. The impeller must turn clockwise when pushing forward. Reversing the GEARBOX during assembly will cause issues. ... - Page 3 Step 4: SHAFT into hole in center of HOPPER bottom. The word “FRONT” on the GEARBOX must point to Front of the HOPPER. NOTE: Place EarthWay brand towards the front of the hopper. (A) Install Step 5: LOWER HANDLES onto FRAME to both sides as shown.
- Page 4 AXLE (not thru the wheel). Bend with pliers to prevent pin from falling out. New for 2021 EarthWay listened to customers who desired an adjustable handle for taller operators. Step 9: Select three ¼” x 2” bolts and three nylon lock nut to complete this step.
- Page 5 Assembly and Operation Instructions TALL OPERATOR CONFIGUATION – with the four handle holes, use the bottom two holes for the guage and use the top hole for the spacer. 2170_M52164_RevJune2021 PAGE 5...
- Page 6 Assembly and Operation Instructions Take the shortest end of the PIVOT Step 10: ROD and insert into the SHUT-OFF PLATE. You may have two holes, use the SHUT-OFF PLATE hole towards the back of the spreader. Insert it through the hole (downward) and then rotate 90 degrees so that end is turned parrellel as shown.
- Page 7 Assembly and Operation Instructions CALIBRATION Pull lever back to setting “30” as Step 15: shown. Next push pivot & bracket forward so that the shut off plate in the hopper is in the full open position. REMEMBER SETTING “30” ON THE FLOW CONTROL LEVER MUST PLACE THE SHUT-OFF PLATE IN THE FULL OPEN POSITION TO BE PROPERLY CALIBRATED.
- Page 8 Next tighten each nut so that they contact the pivot bracket without moving it. Carefully Visit our tighten each nut fully so they do not loosen during use. Recheck adjust as outlined in #1 EarthWay above. website to see the...
-
Page 9: Customer Service
ONE YEAR WARRANTY EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay. - Page 10 Assembly and Operation Instructions HOW TO ORDER SPARE PARTS – CALL or EMAIL: TURF DEPOT 800-305-9255 or earthway@turfdepot.com 100 POUND (2170) Broadcast Spreader Parts List SERIES PART # DESCRIPTION SERIES PART # DESCRIPTION 40003 60175 OPERATOR T-HANDLES SQUARE SCREEN (2.1 – 2.6) 60333 GEARBOX &...
