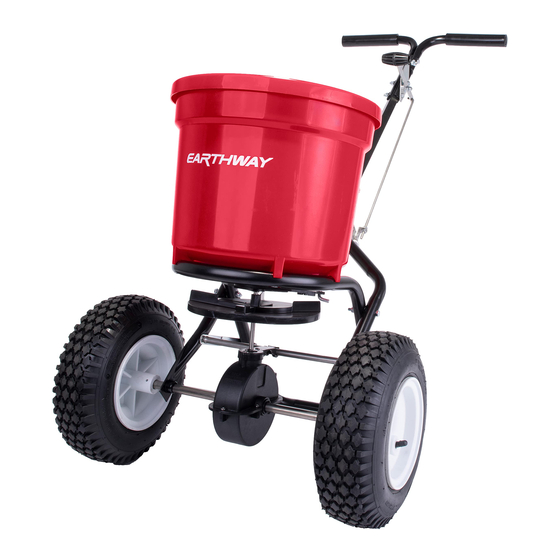

EarthWay 2150 Assembly Instructions Manual

50 lb commercial spreader with side spread control
Hide thumbs Also See for 2150:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL # 2150
Prior to assembly, you will
need the following tools:
Needle nose pliers
#2 Phillips screwdriver
Adjustable wrench or ½"
box wrench
ROCK SALT and POWDERED MATERIALS should not be
used in this spreader as it will damage the gearbox and
can void warranty. Use only granular materials.
2150_December2023
Your EarthWay spreader includes a feature called side
spread control. This feature turns off fertilizer from being
spread to the left side. To activate this feature, slide the
lever below the hopper to the right (if standing behind the
spreader) and walk along a sidewalk or flowerbed that is
12"-14" on your left side. Fertilizer will not spread to the
left. This feature is better than a deflector as no material is
wasted by the deflector.
M6 X
2 X
40M
M
M6 X
10
25mm
40 mm
50 mm
60 mm
70
mm
50 lb Commercial Spreader
with Side Spread Control
ASSEMBLY INSTRUCTIONS
SIDE SPREAD CONTROL
ASSEMBLY HARDWARE
M6 X 5 X
M6 x
M6 x 2 x
60 mm
4 x
55mm
SPREADER COMPONENTS
Agitator
Hog
Bushing
Ring
Bearing
M6 X 2
PAGE 1

Advertisement

Table of Contents
loading

Related Manuals for EarthWay 2150

Summary of Contents for EarthWay 2150

  • Page 1 MODEL # 2150 ASSEMBLY INSTRUCTIONS SIDE SPREAD CONTROL Your EarthWay spreader includes a feature called side spread control. This feature turns off fertilizer from being spread to the left side. To activate this feature, slide the lever below the hopper to the right (if standing behind the spreader) and walk along a sidewalk or flowerbed that is 12″-14″...

  • Page 2: Helpful Hints

    50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS HELPFUL HINTS  Read the directions before assembly.  If your spreader does not spread evenly, be sure “FRONT” on the GEARBOX points to the front of the spreader. The impeller must turn clockwise when pushing forward.
  • Page 3 Step 4: into hole in center of HOPPER bottom. The word “FRONT” on the GEARBOX must point to Front of the HOPPER. NOTE: The EarthWay logo on on the front of the hopper. (A) Install LOWER HANDLES onto FRAME to Step 5: both sides as shown.
  • Page 4 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Slide AXLE into the LOWER HANDLE, then the Step 6: GEARBOX and into the other LOWER HANDLE as shown above. Next, install AXLE BEARINGS over the AXLE and into both LOWER HANDLES as shown above.
  • Page 5 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Insert 2″ (M6 X 1 X 40MM) bolt through Step 9: Gauge & Lever assembly, next through upper handle, then the handle shaft and then the other upper handle and secure with locknut.
  • Page 6 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Install HANDLE SHAFT to LOWER HANDLEs and PIVOT & BRACKET assembly as shown. Using 2″ (M6 X 1 X Step 12: 40MM) bolts and locknuts. TIGHTEN BOLTS AND NUTS NOW.
  • Page 7 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Insert agitator to pinion shaft on inside of Step 16: hopper. Note: the position of flat side of the agitator. This pin should be installed as shown.

  • Page 8: How To Order Parts

    ASSEMBLY INSTRUCTIONS HOW TO ORDER PARTS Call or Email: TURF DEPOT 800-305-9255 or earthway@turfdepot.com You can find replacement Nuts and Bolts at your local hardware store. 2150 Broadcast Spreader Parts List SERIES PART # DESCRIPTION SERIES PART # DESCRIPTION 40002...
  • Page 9 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Broadcast Setting Matrix Calibration Techniques How to ensure your spreader is properly calibrated Make sure the drop holes in the bottom of the hopper are fully open when the Rate Control handle is on #30. If not, please adjust control cable or control rod to allow for a full open hopper position at #30.

  • Page 10: Customer Service

    If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, improper storage, or normal wear and tear as determined by EarthWay.
