EarthWay 2150 Assembly Instructions Manual

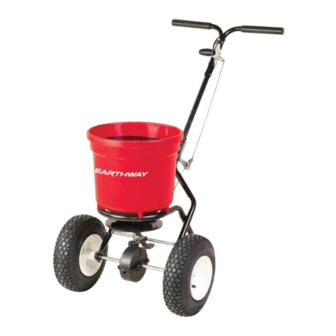

50 lb commercial spreader with side spread control
Hide thumbs Also See for 2150:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL # 2150
Prior to assembly, you will
need the following tools:
Needle nose pliers
#2 Phillips screwdriver
Adjustable wrench or ½"
box wrench
ROCK SALT and POWDERED MATERIALS should not be
used in this spreader as it will damage the gearbox and
can void warranty. Use only granular materials.
Earthway 2150 Manual
Your EarthWay spreader includes a feature called side
spread control. This feature turns off fertilizer from being
spread to the left side. To activate this feature, slide the
lever below the hopper to the right (if standing behind the
spreader) and walk along a sidewalk or flowerbed that is
12"-14" on your left side. Fertilizer will not spread to the
left. This feature is better than a deflector as no material is
wasted by the deflector.
M6 X
2 X
40M
M
M6 X
10
25mm
40 mm
50 mm
60 mm
70
mm
50 lb Commercial Spreader
with Side Spread Control
ASSEMBLY INSTRUCTIONS
SIDE SPREAD CONTROL
ASSEMBLY HARDWARE
M6 X 5 X
M6 x
M6 x 2 x
60 mm
4 x
55mm
40m
m
SPREADER COMPONENTS
Agitator
Hog
Ring
Bushing
Bearing
M6 X 2
PAGE 1

Advertisement

Table of Contents
loading

Related Manuals for EarthWay 2150

Summary of Contents for EarthWay 2150

  • Page 1 MODEL # 2150 ASSEMBLY INSTRUCTIONS SIDE SPREAD CONTROL Your EarthWay spreader includes a feature called side spread control. This feature turns off fertilizer from being spread to the left side. To activate this feature, slide the lever below the hopper to the right (if standing behind the spreader) and walk along a sidewalk or flowerbed that is 12″-14″...

  • Page 2: Helpful Hints

    50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS HELPFUL HINTS  Read the directions before assembly.  If your spreader does not spread evenly, be sure “FRONT” on the GEARBOX points to the front of the spreader. The impeller must turn clockwise when pushing forward.
  • Page 3 SHAFT into hole in center of HOPPER bottom. The word “FRONT” on the GEARBOX must point to Front of the HOPPER. NOTE: The EarthWay logo is on the front of the hopper. (A) Install LOWER HANDLES onto FRAME to Step 5: both sides as shown.
  • Page 4 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Install DRIVE WHEEL onto the Step 8: AXLE and align with the Spring Clip hole nearest to LOWER HANDLE as shown. Insert spring clip through wheel and through AXLE.
  • Page 5 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Insert 2″ (M6 X 1 X 40MM) bolt through Gauge Step 10: & Lever assembly, next through upper handle, then the handle shaft and then the other upper handle and secure with locknut.
  • Page 6 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS Install (1) 1/4-20 (M6 X 1) regular nut (not a Step 14: locknut) on to CONTROL ROD as shown. Install flattened end of CONTROL ROD in to Step 15: LEVER on GAUGE as shown.
  • Page 7 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS POSITION TO BE PROPERLY CALIBRATED. Now tighten the nuts against the PIVOT BRACKET to prevent change in calibration. NOTE: Tension on the flow control lever may be adjusted by tightening or loosening the tension nut as shown.
  • Page 8 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS SERIES PART # DESCRIPTION SERIES PART # DESCRIPTION 40002 60602 OPERATOR HANDLES ASSEMBLY ROUND SCREEN (2.1 – 2.6) 60333 GEARBOX & IMPELLER SHAFT KIT 60332 HOPPER ASSEMBLY KIT 38168 (3.1 - 3.92)

  • Page 9: Customer Service

    ONE YEAR WARRANTY EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay.

  • Page 10: How To Order Spare Parts

    The SideSpred-Control™ maintains the correct application rate while it is activated, giving you excellent results in seeding or spreading while controlling the spread pattern on the left side of the spreader. The SideSpred-Control™ is an EarthWay exclusive.
  • Page 11 50 lb Commercial Spreader with Side Spread Control MODEL # 2150 ASSEMBLY INSTRUCTIONS You can find replacement Nuts and Bolts at your local hardware store. Broadcast Setting Matrix Calibration Techniques How to ensure your spreader is properly calibrated Make sure the drop holes in the bottom of the hopper are fully open when the Rate Control handle is on #30. If not, please adjust control cable or control rod to allow for a full open hopper position at #30.
