Syscom Video HCZP572W Manual page 17

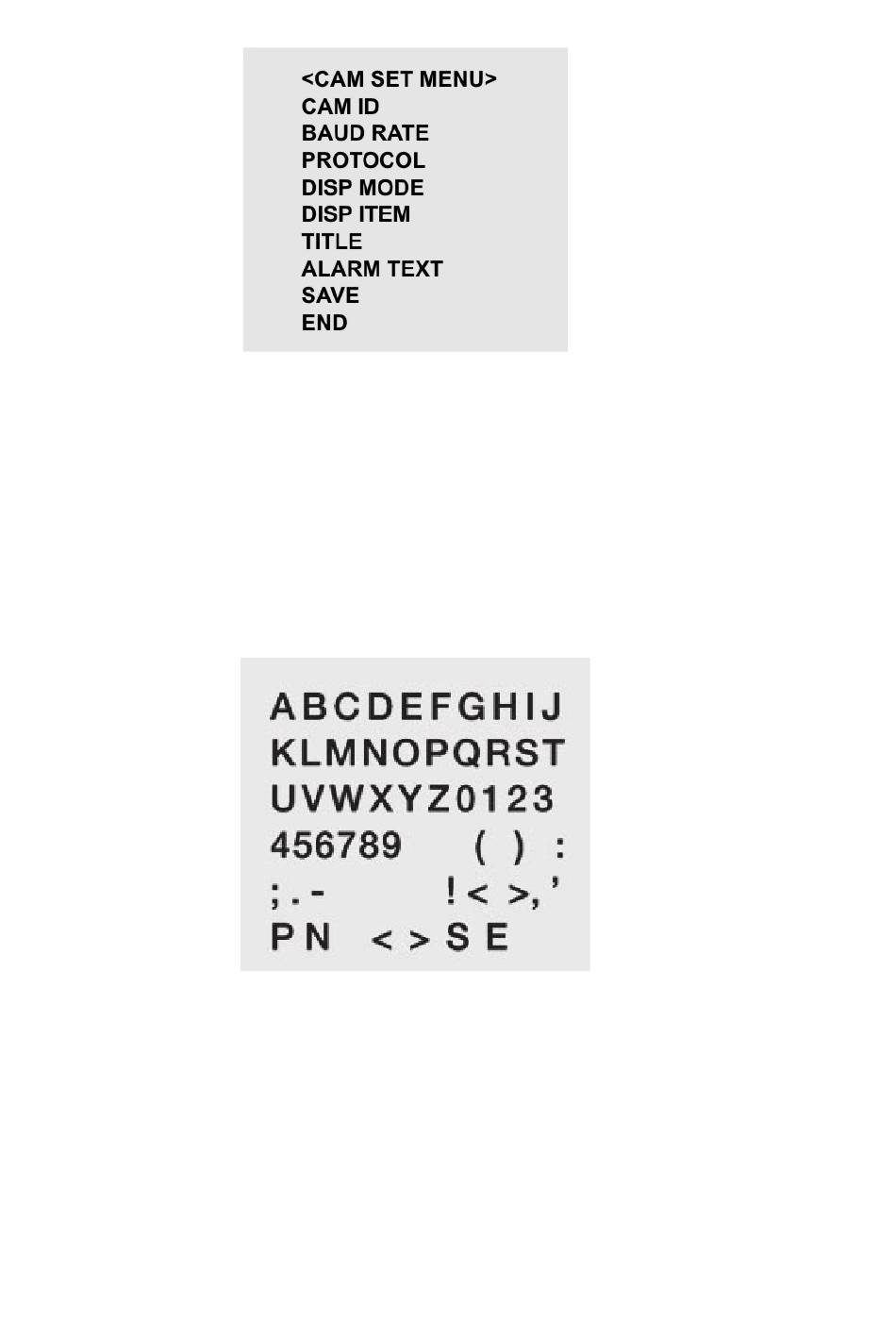

CAM ID
BAUD RATE
PROTOCOL
DISP MODE
DISP ITEM
1
2
TITLE
ALARM TEXT
SAVE
NOTE 1 : You can choose BPS menu appropriate for keyboard protocol.
NOTE 2 : Although you change BAUD RATE or PROTOCOL menu,
the terms of change is not applied unless you select SAVE menu.
NOTE 3 : Do not power source down while saving
Select the camera ID. (1~255)
Select serial communication speed. (2400/4800/9600/19200bps)
Select operating protocol.
(FASTRAX/PELCO-P/PELCO-D/COMMAND)
Select display mode. (ON//PUSH ON/OFF)
Select display item. (1~2)
Camera Title and ID display.
Camera Title and ID, Zoom lens position display.
Select camera title menu. (A~Z, 0~9)
If the alarm is occurred, the ALARM TEXT established at this
menu will be displayed.
Save preset parameters of CAM SET MENU.
17
