MODE
AREA SEL
DEFAULT
ADJ TOP/LEFT
ADJ BOT/RIGHT
SENSITIVITY
DWELL TIME
ALARM MODE
PRESET SEL

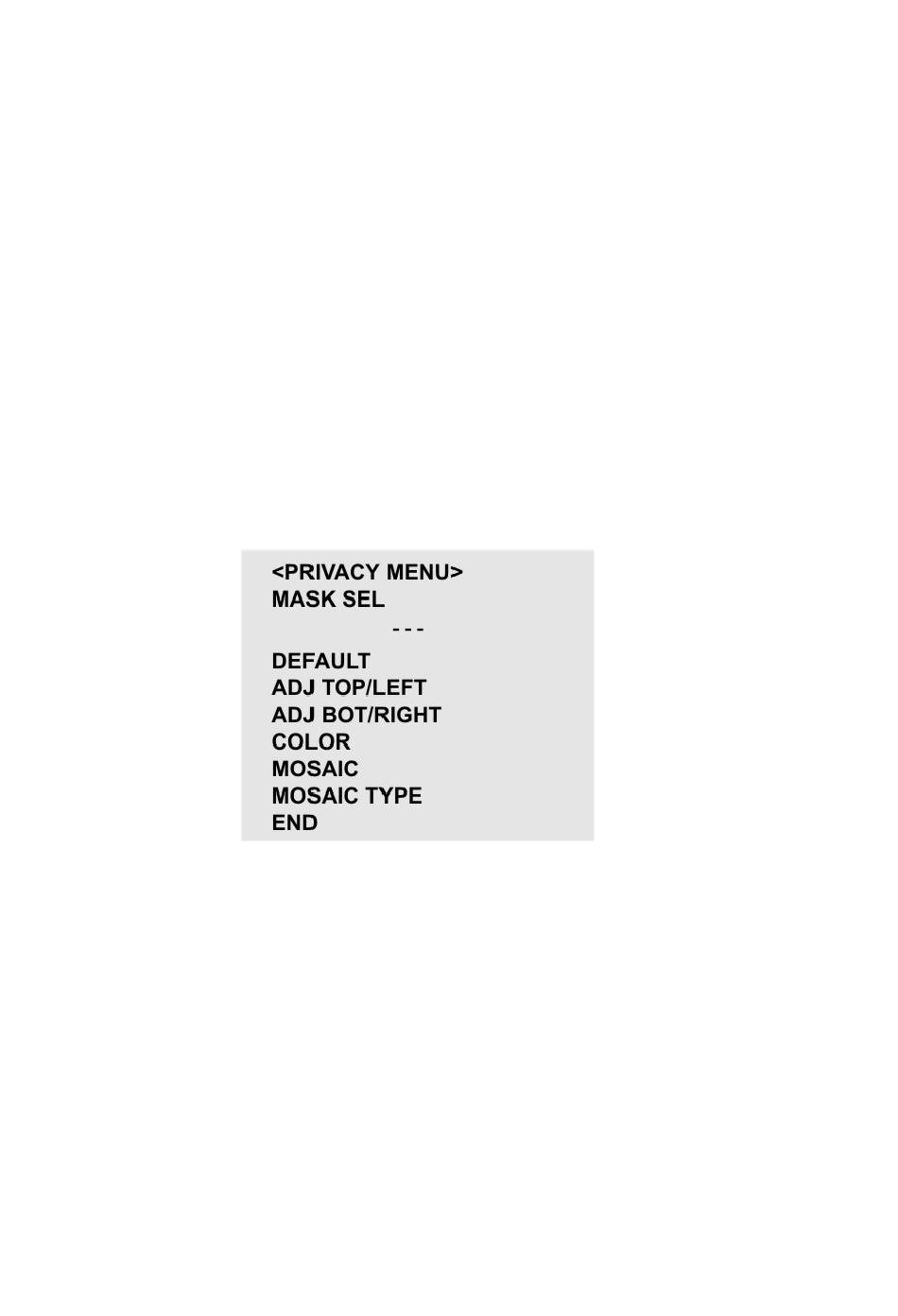

5.2.6 PRIVACY
MASK SEL
DEFAULT
ADJ TOP/LEFT
ADJ BOT/RIGHT
COLOR
MOSAIC
MOSAIC TYPE
NOTE1 : The mosaic when the color is transparent, is possible
Select alarm and MD/EXT mode.
(OFF/MD/EXT/ MD+EXT)
Select MD area number. (1~4)
Select MD enable/disable.
Set MD area as default.
Adjust the location of the MD area with boundary top and left.
Adjust the location of the MD area with boundary bottom and right.
Adjust sensitivity of MD area. (MD:1~10)
Dwell time setup of zoom preset. (10,20,...,180sec)
One of two options can be selected for EXT mode. BW/PRESET.
Select zoom preset number. (0FF,1~10)
(When the MD and/or Alarm is/are occurred.)
Select mask area number. (1~16)
Select mask enable/disable.
Set mask area as default.
Adjust the location of the mask area with boundary top and left.
Adjust the location of the mask area with boundary bottom and
right.
Select mask color. (1~8)
Mosaic display on/off.
Mosaic roughness setting. (1 ~ 4)
