- Page 1 Operating instructions Heating actuator 6-gang with controller Art. no. 360061SR ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 20.07.2023 82406413 J0082406413 www.jung.de...
-
Page 2: Table Of Contents
Heating actuator 6-gang with controller Safety instructions ...................... 3 Device components ...................... 4 Intended use ........................ 5 Operation .......................... 5 Information for electrically skilled persons ................ 8 Technical data ........................ 10 82406413 2 / 11 20.07.2023 J0082406413... -
Page 3: Safety Instructions
Heating actuator 6-gang with controller Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Device Components

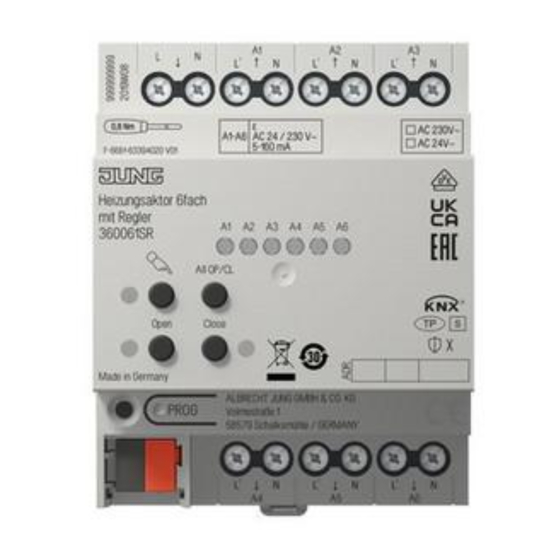

Heating actuator 6-gang with controller Device components Image 1: Front view Supply of electrothermal valve drives Connection of electrothermal valve drives (A1 to A6) Status LEDs for outputs Button field for manual operation Programming button and LED Bus connection If all of the status LEDs (3) are flashing (2 Hz), the device is indicating that there is no power supply to the electrothermal valve drives (1). -
Page 5: Intended Use
Heating actuator 6-gang with controller Intended use – Switching of electrothermal valve drives for heaters or cooling ceilings – Operation in KNX system – Installation in sub-distribution units on DIN rail according to DIN EN 60715 Operation Status LEDs for outputs ǃ... - Page 6 Heating actuator 6-gang with controller ￭ Press the ǃ button briefly. Status LED A1 flashes, LED ǃ flashes. After 5 seconds without button actuation, the actuator returns automatically to bus mode. Switching off temporary manual operation mode The device is in short-term manual mode. ￭...
- Page 7 Heating actuator 6-gang with controller Short-term manual mode: After running through all of the outputs the device exits manual mode after another brief actuation. Operating all outputs simultaneously The device is in permanent manual operation mode. ￭ Press the ALL OP / CL button. All the valves open and close alternately.
-
Page 8: Information For Electrically Skilled Persons
Heating actuator 6-gang with controller Information for electrically skilled persons DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Always disconnect before carrying out work on the device or load. For this, switch off all the corresponding circuit breakers, secure against being switched on again, and check that there is no voltage. - Page 9 Heating actuator 6-gang with controller Image 2: Connection of actuators 230 V ￭ Connect AC 24 V valve drives according to the connection diagram (see figure 3). Image 3: Connection of actuators 24 V ￭ Connect the supply for the valve drives to the terminals 8(L) and 8(N) (1). ￭...
-
Page 10: Technical Data
Heating actuator 6-gang with controller Technical data KNX medium TP256 Commissioning mode S mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX 4.5 ... 10 mA Heating outputs Contact type Semi-conductor (Triac), ε Switching voltage AC 24 / 230 V ~ Mains frequency 50 / 60 Hz Switching current... - Page 11 Heating actuator 6-gang with controller ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82406413 11 / 11 20.07.2023 J0082406413...
