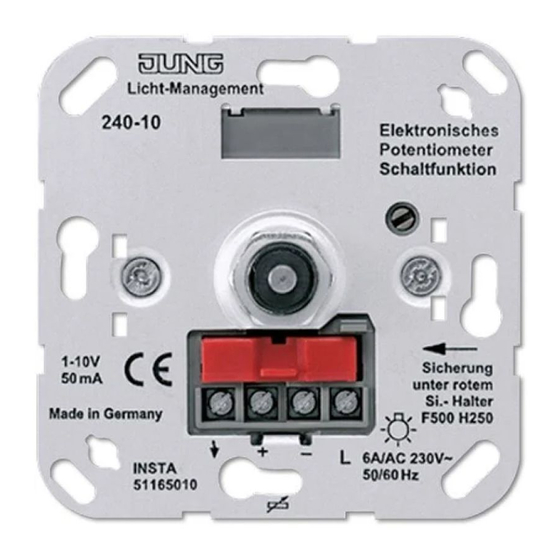

- Page 1 Operating instructions Rotary controller 1-10 V Art. no. 240-10 ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 12.07.2023 32406703 J0082406703 www.jung.de...
- Page 2 Rotary controller 1-10 V Table of contents Safety instructions ...................... 3 Device components ...................... 3 Intended use ........................ 3 Product characteristics ..................... 4 Operation .......................... 4 Information for electrically skilled persons ................ 4 Commissioning ......................... 6 Technical data ........................ 7 Warranty ........................... 7 32406703 2 / 7 12.07.2023...
- Page 3 Rotary controller 1-10 V Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage.
- Page 4 Rotary controller 1-10 V – Mounting in appliance box with dimensions according to DIN 49073 Product characteristics – Basic brightness adjustable – Short-circuit protection of switching contact with integrated fine-wire fuse Operation Switching electronic operating devices on or off ￭ Press the control button. Adjusting the brightness Light is switched on.
- Page 5 Rotary controller 1-10 V Connecting and fitting the device Image 2: Connection diagram - Potentiometer switches the lamp operating devices directly Image 3: Connection diagram - Potentiometer and contactor for switching the lamp operating devices Electronic potentiometer Lamp operating device with 1-10 V interface, electronic ballast Control cable: appropriate type, cross-section and routing for the VDE specific- ations for 250 V cables, control voltage has basic insulation.
- Page 6 Rotary controller 1-10 V CAUTION! Device defect when the 1-10 V interface is connected to mains voltage Do not connect 1-10 V interface to mains voltage. ￭ Connect electronic potentiometer with switching function according to connec- tion diagram (see figure 2) or (see figure 3). ￭...
- Page 7 Max. 4 mm² Fine-wire fuse T 6.3 H 250 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
