KNX room controller LS TOUCH
KNX room controller LS TOUCH
Ref.-no.: L .. 459 D 1S .., .. 459 D 1S ..
L .. Z 459 BF D 1S .., L .. Z .. 459 BF D 1S ..
LC 459 D 1S ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the regulations and standards
which apply for SELV circuits.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
(1) Supporting frame
(2) LS TOUCH with integrated frame (LS 990)
(3) Proximity sensor
(4) External sensor connection (optional)
(5) KNX connection
(6) Prog. LED
(7) Prog. button
0024026400
1
2

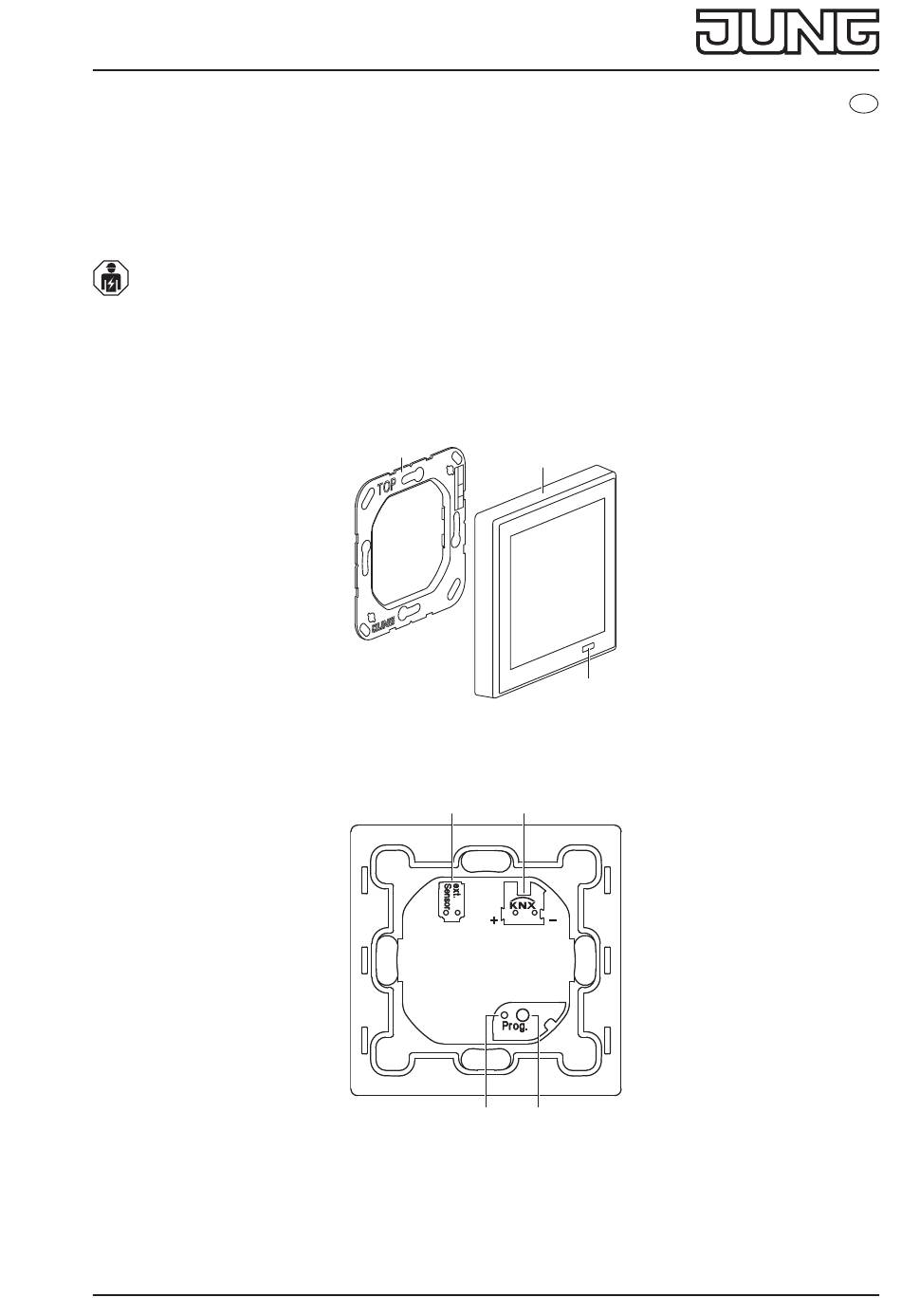

Fig. 1: Device components
4
5
6
7
Fig. 2: Device components
1 / 6
3
GB
31.05.2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung LS TOUCH
Summary of Contents for Jung LS TOUCH
- Page 1 These instructions are an integral part of the product, and must remain with the end customer. 2 Device components Fig. 1: Device components (1) Supporting frame (2) LS TOUCH with integrated frame (LS 990) (3) Proximity sensor Fig. 2: Device components (4) External sensor connection (optional) (5) KNX connection (6) Prog.
-
Page 2: Information For Electrically Skilled Persons
KNX room controller LS TOUCH 3 Function System information The device can be updated. Firmware can be easily updated. The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. Detailed specialist knowledge is required. A device certificate, which is attached to the device, is required for safe commissioning. - Page 3 KNX room controller LS TOUCH Connecting the external sensor Only one of the following sensors can be connected: - external temperature sensor (art. no.: FF NTC) - external switching contacts (e.g. installation buttons or reed contacts) Observe the technical data: - cable type (J-Y(St)Y 2×2×0.8)
-
Page 4: Operation
KNX room controller LS TOUCH 6 Configuration The device is configured via parameters in the ETS product database. You can find detailed information about the configuration or parameterisation of the device in the product documentation. The product documentation can be downloaded from our website. -
Page 5: Displaying Menus
KNX room controller LS TOUCH Displaying menus Fig. 7: Displaying menus Favourites: • Perform a swiping motion from top to bottom. Main menu: • Perform a swiping motion from bottom to top. i The favourites and the main menu can be displayed directly from all menus. -
Page 6: Technical Data
KNX room controller LS TOUCH Scrolling through pages Fig. 10: Scrolling through pages • Perform a swiping motion to the left or right. Alternatively, tap on the squares. Adjusting functions Fig. 11: Adjusting functions The adjustment options for the functions depend on the function type.
