KNX
825 603 03
Stand: Mai-07

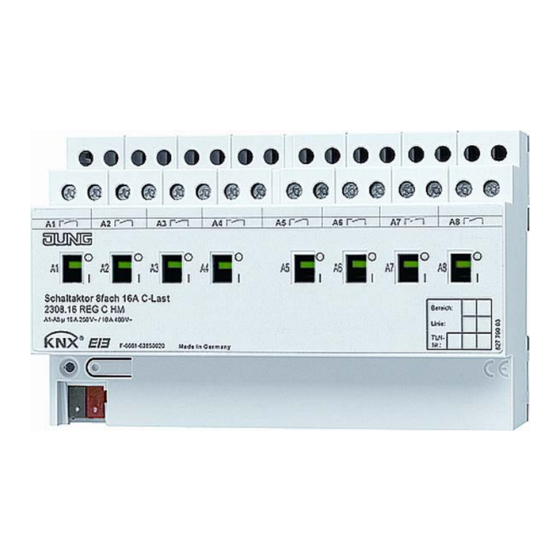

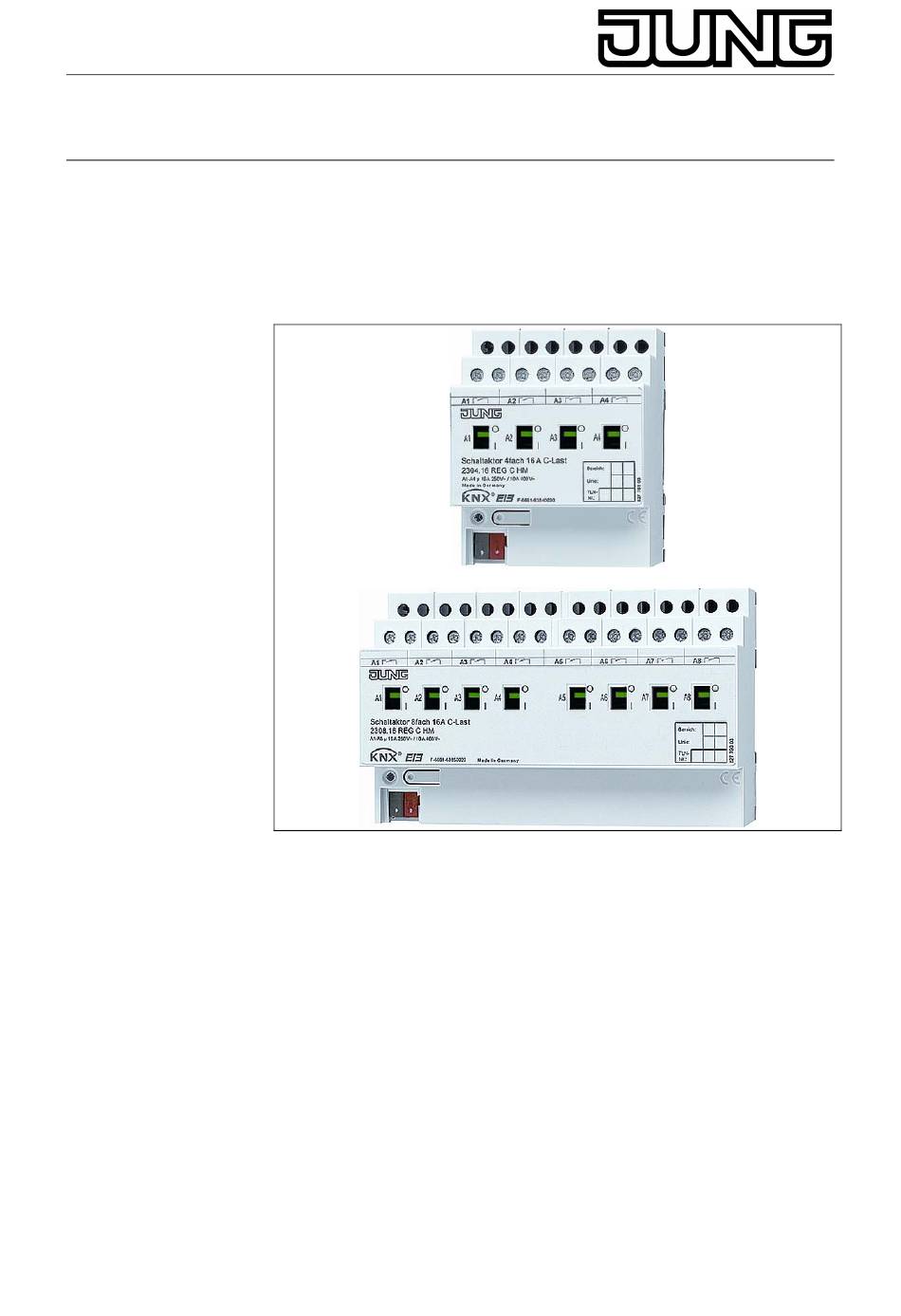

4-/8-channel switching actuator 16A / C-load
Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM
Operation Instructions
4-/8-channel switching actuator 16A
4-/8-channel switching actuator 16A /
C-load with current detection
1. Safety instructions
Electrical equipment must be installed and fitted by qualified
electricians only. Observe the current accident prevention
regulations. Failure to observe the instructions may cause damage
to the device and result in fire or other hazards. The device is not
suited for safe disconnection of the mains supply. Do not connect
mains voltage consumers together with SELV/ PELV consumers to
the same switching actuator. Do not connect three-phase AC
motors to the actuator. The current detection and load monitoring
functions must not be used for safety-related applications, e.g.
overload detection. These operating instructions are part of the
product and must be left with the final customer.
2. System information
This device is a product of the KNX-system and complies with KNX
directives. Technical knowledge obtained in KNX training courses is a
prerequisite to proper understanding. The functionality of this device
depends on the software. Detailed information on loadable software and
4-/8-channel switching actuator 16A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung KNX 230 .16 REGHM Series
Summary of Contents for Jung KNX 230 .16 REGHM Series
- Page 1 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM Operation Instructions 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16A / C-load with current detection 1. Safety instructions Electrical equipment must be installed and fitted by qualified electricians only.
- Page 2 The full functionality with KNX commissioning software from version ETS3.0d. onwards. The product database, technical descriptions and conversion programs and other utilities are available in the Internet at www.jung.de. 3. Designated use Switching of electrical consumers AC 230 V or 24 V AC/DC with...
- Page 3 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16 A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM 4. Manual operation The switching state of the relays is indicated by the switching position indicators (1) on the front panel The indicators can be used at the same time for manual switching of the relay outputs.
- Page 4 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16 A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM Information for qualified electricians 5. Installation and electrical connection DANGER Electric shock in case of accidental contact with live parts. Electric shocks may be fatal. Before working on the device, disconnect the mains voltage and cover up live parts in the surroundings.
- Page 5 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16 A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM 5.3. Sliding on the protective cap To protect the bus lines against dangerous voltages at the connecting terminal, slide on the protective cap. Lead out the bus line at the rear of the device. Slide the cap over the bus terminal (Fig.
- Page 6 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16 A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM 7. Technical Data Medium: Mode of commissioning: S-Mode KNX supply: 21...32 V DC KNX connection: Connecting terminals Connection of outputs: Screw terminals solid wire 0.5...4 mm² stranded wire without ferrule 0.5...4 mm²...
- Page 7 4-/8-channel switching actuator 16A 4-/8-channel switching actuator 16 A / C-load Art.-Nr.: 230x.16 REGHM, 230x.16REGCHM 8. Switching capacitiy...
- Page 8 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
