Flush-mounted dimming actuator, 1-gang, with satellite input
Flush-mounted dimming actuator, 1-gang, with satellite input
Art.-No.: 3210 UP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock on the KNX installation. Do not connect any external voltage to
the inputs. Doing so may damage the device(s), and the SELV potential on the KNX bus
line will no longer be available.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Danger of electric shock. Before working on the device or before exchanging light bulbs,
disconnect mains voltage and switch off circuit breakers.
Do not connect any lights with integrated dimmers. Device can be damaged.
Do not connect any electronic lamps, e.g. switchable or dimmable compact fluorescent
lamps or LED lamps. Device can be damaged.
Fire hazard. For operation with inductive transformers, each transformer must be fused
on the primary side in accordance with the manufacturer's instructions. Only safety
transformers according to EN 61558-2-6 may be used.
These instructions are an integral part of the product, and must remain with the end
customer.

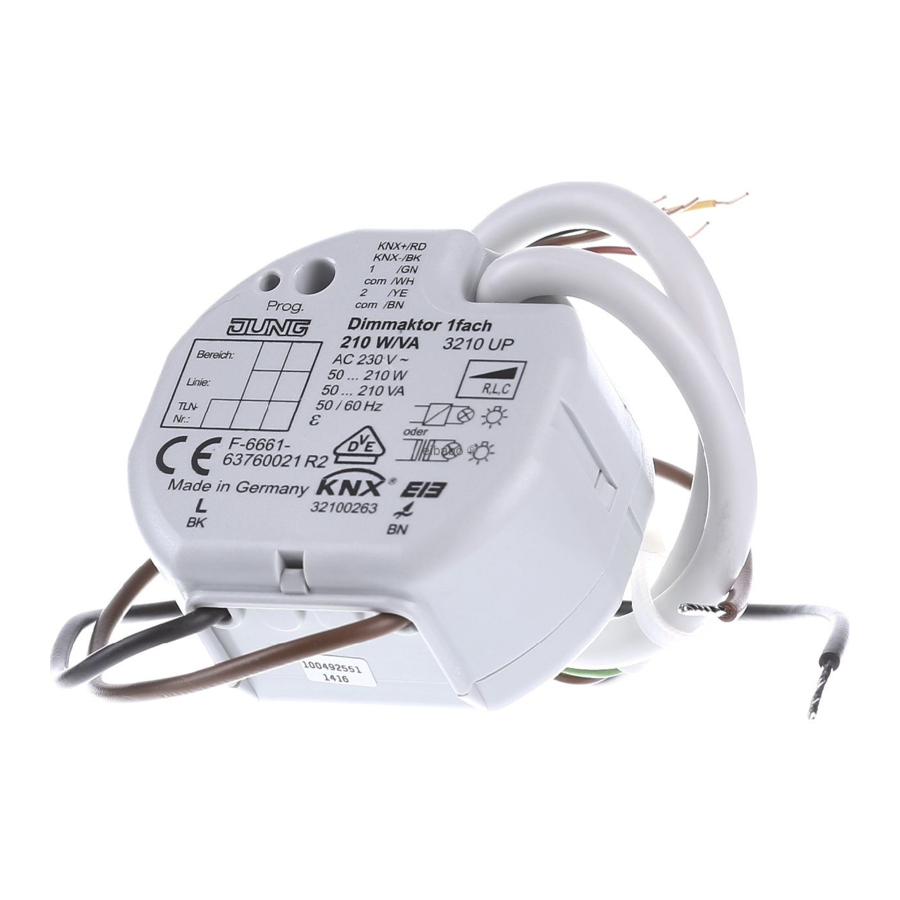

2 Device components

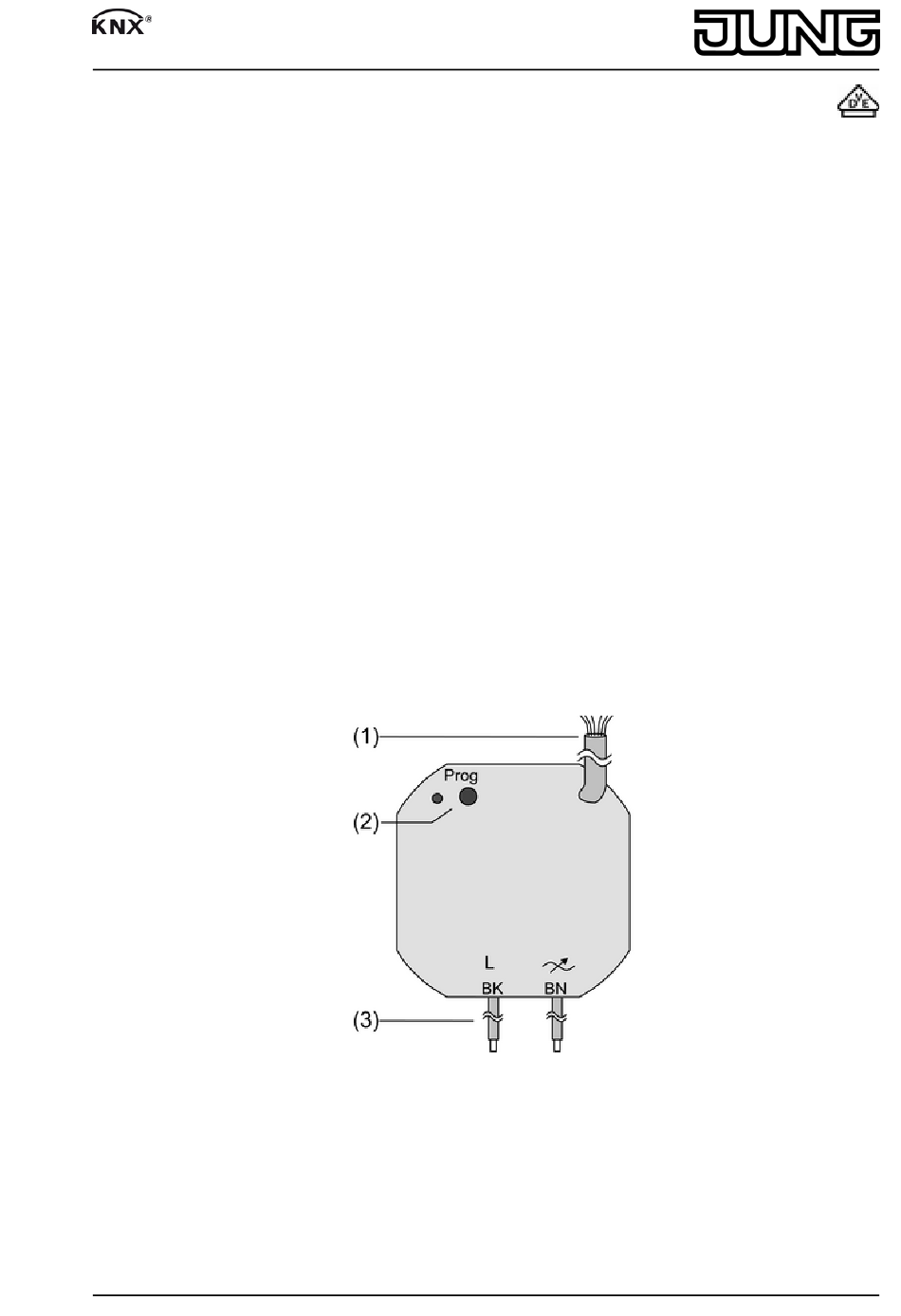

(1) Control cable
(2) Programming button and LED
(3) Connection of mains and power cables
Connection assignment, power cables
BK, black: connection conductor L
BN, brown: dimming output
82576313
J:0082576313
Figure 1: Flush-mounted dimmer actuator
1/7
06.01.2012
