Switch actuators flush mounted – 1gang 16A, 2gang 6A
Switch actuator, 1-gang
Art. No. 2131.16 UP

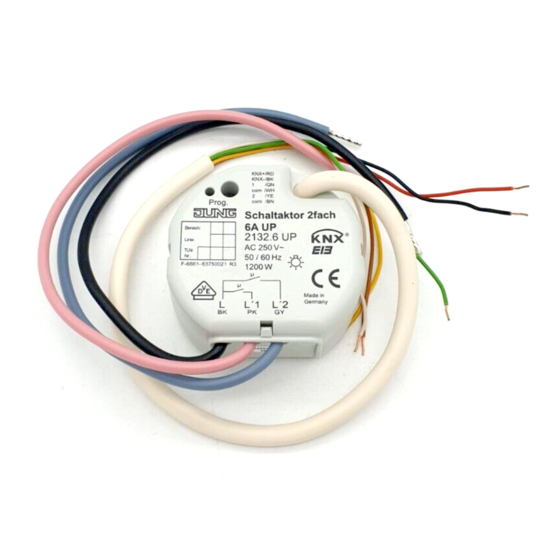

Switch actuator, 2-gang
Art. No. 2132.6 UP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock on the KNX installation. Do not connect any external voltage to
the inputs. Doing so may damage the device(s), and the SELV potential on the KNX bus
line will no longer be available.
Danger of electric shock. Before working on the device or before exchanging light bulbs,
disconnect mains voltage and switch off circuit breakers.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82553923
J:0082553923

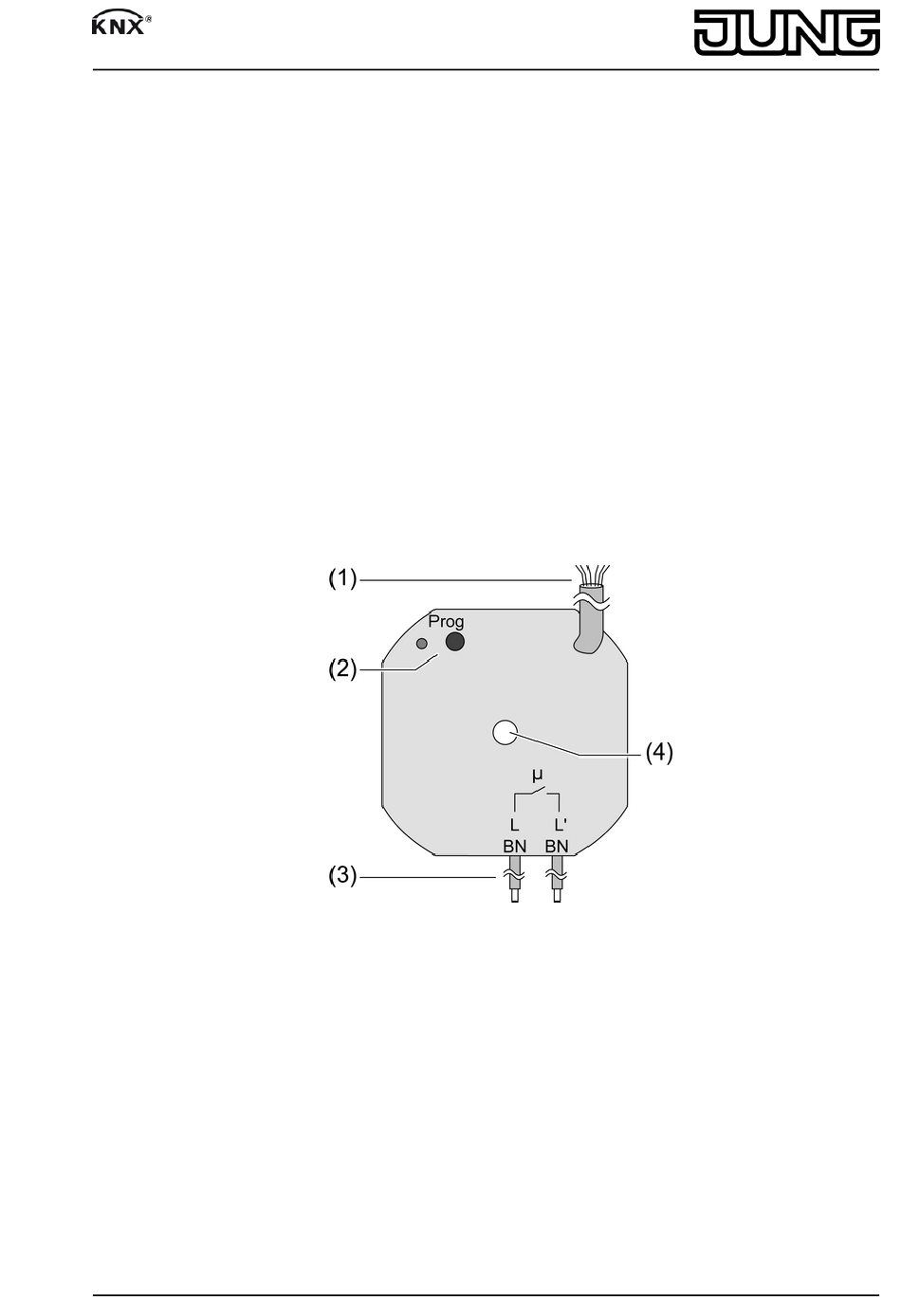

Figure 1: Switch actuator 1gang
1/6
18.09.2012
Advertisement
Table of Contents
Related Manuals for Jung KNX 2131.16 UP
Summary of Contents for Jung KNX 2131.16 UP
- Page 1 Switch actuators flush mounted – 1gang 16A, 2gang 6A Switch actuator, 1-gang Art. No. 2131.16 UP Switch actuator, 2-gang Art. No. 2132.6 UP Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Switch actuators flush mounted – 1gang 16A, 2gang 6A Figure 2: Switch actuator 2gang (1) Control cable (2) Programming button and LED (3) Connection of mains and power cables (4) Opening for fastening – only switch actuator 1gang Connection assignment, power cables Switch actuator 1gang: BN, brown: connection external conductor L, output L' Switch actuator 2gang:...
- Page 3 Switch actuators flush mounted – 1gang 16A, 2gang 6A 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
- Page 4 Switch actuators flush mounted – 1gang 16A, 2gang 6A Figure 4: Installation in appliance box (4) Appliance box (5) Partition (6) Potential-free contacts, e.g. for window contact or installation pushbuttons Figure 5: Spacing between mains cable and control cable Minimum spacing between the mains voltage and bus/extension wires: 4 mm (figure 5). Do not exceed permissible total load including transformer power dissipation.
- Page 5 Switch actuators flush mounted – 1gang 16A, 2gang 6A 4.2 Commissioning Load the address and the application software Switch on the bus voltage Press the programming button. The programming LED lights up. Assign physical address. The programming LED goes out. Write the physical address on the device label.
- Page 6 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
