Room controller display compact module
Room controller display compact module
Art. no.: 4093 KRM TS D
Room controller display compact module
Art. no.: 4093KRC
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and other
hazards.
Use only the enclosed plastic screws for fastening to the supporting frame! Otherwise safe op-
eration cannot be ensured. Electrostatic discharges can cause defects in the device.
These instructions are an integral part of the product, and must remain with the end customer.
2

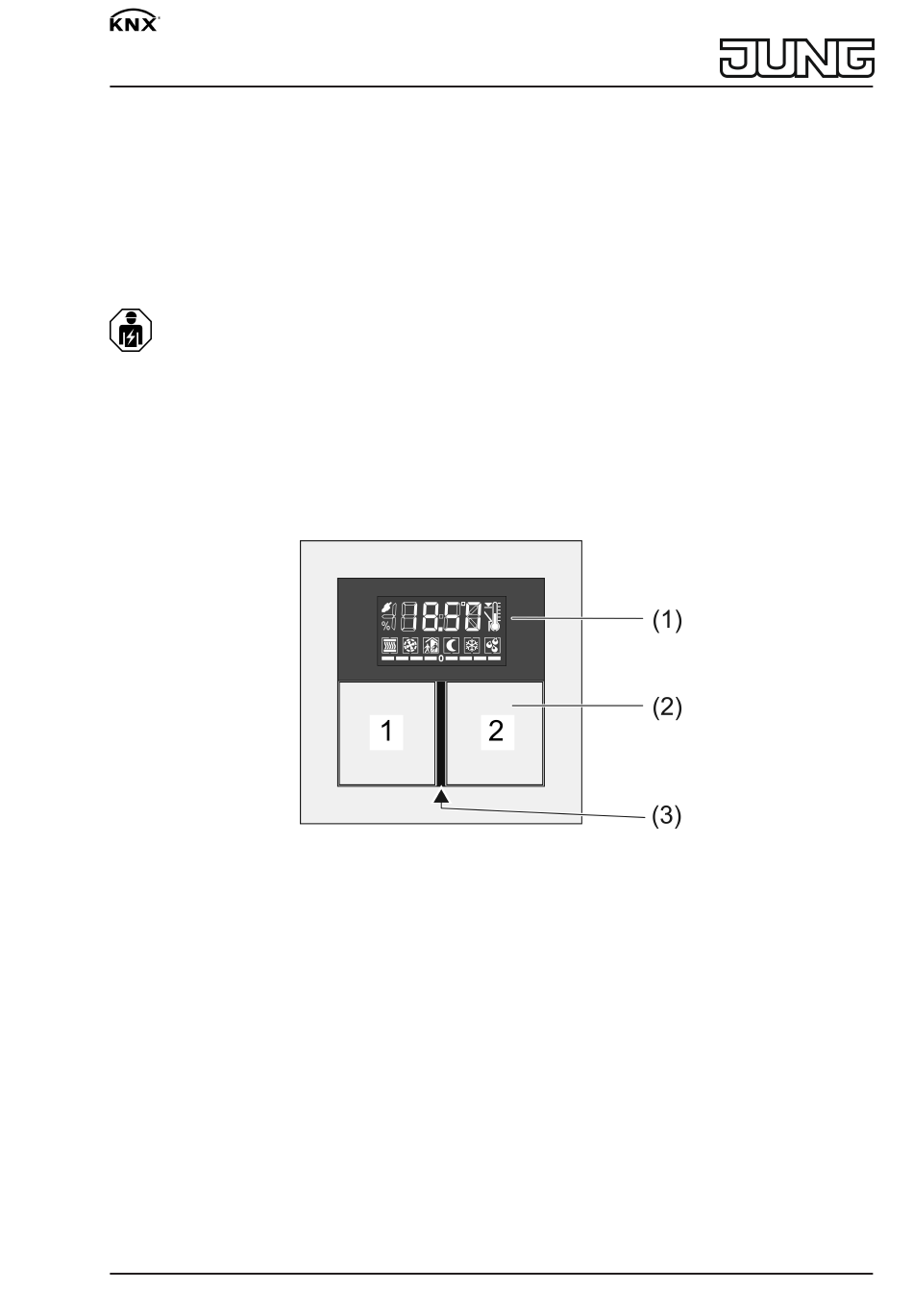

Device components
(1)
LCD with button
(2)
Buttons 1 and 2
(3)
Operating and status LED
3
Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the manu-
facturer´s product database. Planning, installation and commissioning of the device are carried
out with the aid of KNX-certified software. The latest versions of product database and the tech-
nical descriptions are available on our website.
Intended use
–
Operation of loads, e.g. light on/off, dimming, venetian blinds up/down, brightness values,
temperatures, calling up and saving light scenes, etc.
32573243
J:0082573243
Figure 1
1 / 7
16.04.2020
