Operating instructions

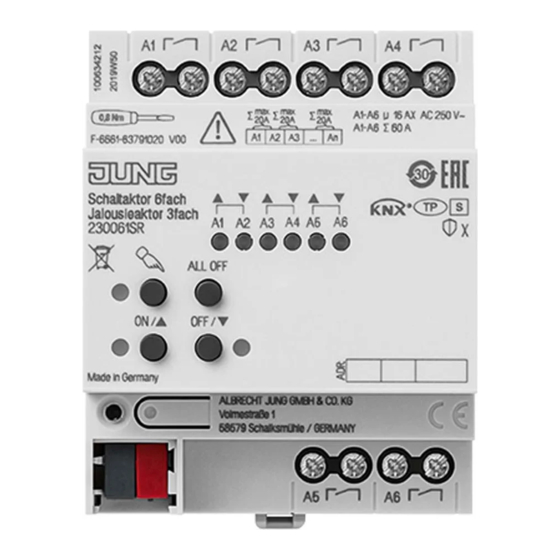

Switch actuator, 6-gang / blinds actuator, 3-gang
Art. no. 230061SR
Switch actuator, 16-gang / blinds actuator, 8-gang
Art. no. 230161SR
Switch actuator, 24-gang / blinds actuator, 12-gang
Art. no. 230241SR
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
12.08.2022
82402633 J0082402633
www.jung.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 230061SR
Summary of Contents for Jung 230061SR
- Page 1 Art. no. 230061SR Switch actuator, 16-gang / blinds actuator, 8-gang Art. no. 230161SR Switch actuator, 24-gang / blinds actuator, 12-gang Art. no. 230241SR ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
-
Page 2: Table Of Contents
Switch actuator / blinds actuator Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 9 Mounting and electrical connection................ 9 Commissioning .................... 11 Technical data ......................... 12 Warranty.......................... 14 82402633 2 / 14 12.08.2022 J0082402633... -
Page 3: Safety Instructions
Switch actuator / blinds actuator Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains voltage and SELV/PELV together to the device. -
Page 4: Function
The device can be updated. Firmware can be easily updated with the Jung ETS Ser- vice App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. -
Page 5: Operation
Switch actuator / blinds actuator – Time functions: switch-on delay, switch-off delay, staircase lighting timer with run-on time – Scene function – Operating hours counter Characteristics blinds operation – Suitable for AC motors 110...230 V – Operating modes "Venetian blind with slats", "Roller shutter/awning", "Venting louvre/roof window"... - Page 6 Switch actuator / blinds actuator Button ǃ Manual operation LED ǃ ON: Continuous manual mode active/Flashing: Temporary manual mode active LED DŽ ON: Relay outputs closed, manual mode active Button DŽ Short: Switch on, adjust slats or stop Long: Move hanging upwards (10) Button Dž...
- Page 7 Switch actuator / blinds actuator ￭ Press button ǃ (6) briefly. LED ǃ (7) flashes, LEDs A1... (4) of the first configured output or output pair flash. Short-time manual operation is switched on. After 5 s without a button actuation, the actuator returns automatically to bus operation.
- Page 8 Switch actuator / blinds actuator Blind/shutter outputs: depending on the programming, the hangings move to the position that is active after the manual mode is switched off, e.g. to safety or sun protection position. Operating an output in manual mode ￭...
-
Page 9: Information For Electrically Skilled Persons
Switch actuator / blinds actuator Disabling is deactivated. The LED A1... (4) of the selected output or output pair flashes slowly. Switching between Venetian blind and switching operation Device is not in operation ￭ Activate permanent manual operation. ￭ Press button ǃ (1) repeatedly until LED A1... (8) of the desired output or out- put pair flashes. - Page 10 Switch actuator / blinds actuator – Document all passwords and keep them safe. Observe ambient temperature. Ensure adequate cooling. ￭ Mount device on DIN rail. ￭ In secure operation: The device certificate must be removed from the device and stored securely. Connecting the device Image 3: Device connection (connection example) ￭...
-
Page 11: Commissioning
Switch actuator / blinds actuator Commissioning Commissioning the device NOTICE! Incorrect load control due to undefined relay state at delivery. Risk of destruction of connected drive motors. During commissioning, before switching on the load, ensure that all relay contacts are open by applying the KNX bus voltage. Observe commissioning sequence! ￭... -
Page 12: Technical Data
5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Jung ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (as- delivered state). - Page 13 Switch actuator / blinds actuator Current consumption KNX Art. no. 230061SR, 230161SR 5 ... 18 mA Art. no. 230241SR 5 ... 24 mA Outputs Switching voltage AC 250 V ~ Switching current AC1 16 A Fluorescent lamps 16 AX Current carrying capacity Neighbouring outputs Ʃ...
-
Page 14: Warranty
Connection torque, screw terminals max. 0.8 Nm Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
