Alfa Plam Amelia Installation And Operation Manual

Alfa Plam Amelia Installation And Operation Manual

Solid fuel stove
Hide thumbs Also See for Amelia:
Table of Contents

Advertisement

Quick Links

Download this manual

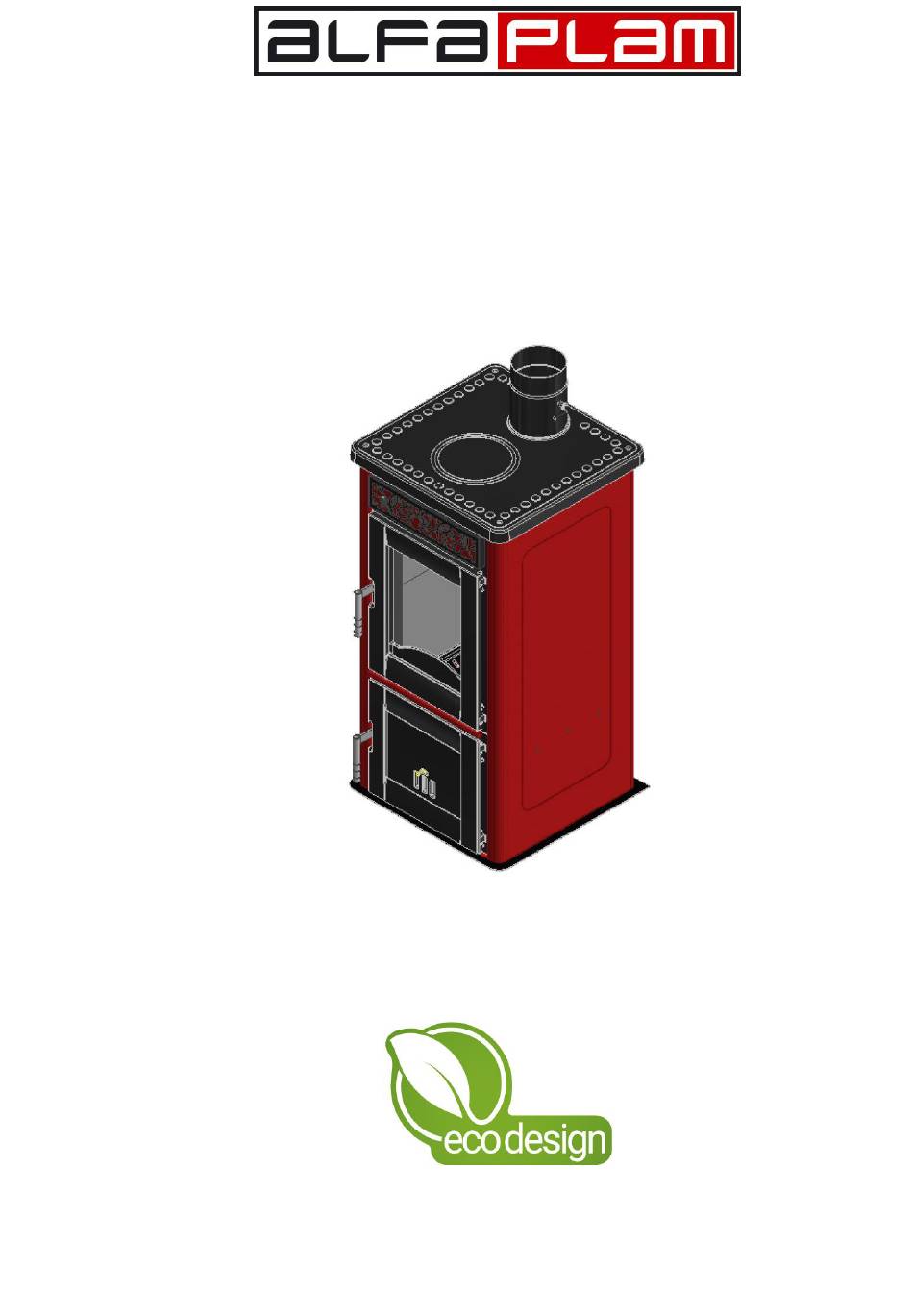

METAL INDUSTRY AD
17500 VRANJE, SERBIA
Radnička 1, Tel.: 017/421-121
SOLID FUEL STOVE
Amelia
INSTALLATION AND OPERATION MANUAL
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in
order to contribute to the reduction of energy consumption and negative environmental impact.
ENG_v.1.0
1612028

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amelia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alfa Plam Amelia

Summary of Contents for Alfa Plam Amelia

  • Page 1 17500 VRANJE, SERBIA Radnička 1, Tel.: 017/421-121 SOLID FUEL STOVE Amelia INSTALLATION AND OPERATION MANUAL This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.
  • Page 2 Packaging components can be dangerous for children and adults with disabilities. There is a risk of injury. It is necessary to remove all components in a safe place. Replacement parts, other than our tested original parts, must not be used on the stove. Alfa Plam is not responsible for the consequences of upgrading the stove.
  • Page 3 The necessary discharge pressure should be 12 Pa during normal workload. If the pressure exceedes 15 Pa, throttle valve spacer should be used for the discharge pipe (Figure 8a, and 8b) The ashpan must not contain any flammable materials. The filling level should not exceed the height of lateral sides to the ashpan.

  • Page 4: Table Of Contents

    List of contents: Technical Data ..............................1 Stove Description .............................. 1 Air Control ................................. 1 Primary Air ..............................1 Installation of the Stove ............................ 2 Stove Commissioning ............................2 Stove Commissioning and Operation ......................3 Maintenance and Cleaning ........................4 Information on Use and Transport ........................

  • Page 5: Technical Data

    1. Technical Data - width 455 mm - depth 445 mm - height 875 mm - nominal heat output 8.0 KW Efficiency degree (%) 81,% - diameter of flue pipe connection Ø120 mm - draught 12 Pa - stove weight 105 kg - flue engagement upwards...

  • Page 6: Installation Of The Stove

    4. Installation of the Stove During stove installation you should follow valid regulations regarding the construction and firefighting requirements. The placement site should be horizontal and with sufficient bearing capacity, otherwise the appropriate measures must be applied for equal load distribution. In case of flammable floor (wood, plastics, textile...) it is necessary to put steel-sheet, copper or other inflammable material on the floor beneath the stove.

  • Page 7: Stove Commissioning And Operation

    After reading the operation manual, the stove is commissioned for the first time. During the first stoking you should open the windows because the anticorrosive protection produces unpleasant smell and smoke. That is normal phenomenon, but soon ends. If necessary, turn on the fan for faster air circulation. Stoke up to the maximum temperature load, 1 hour at least. If the maximum temperature is not reached during the first stoking, problems with unpleasant smell might occur later also.

  • Page 8: Maintenance And Cleaning

    Maintenance and Cleaning The stove should be inspected regularly by an expert. The stove, flue pipe and chimney should be cleaned regularly several times a year, at least once in the heating season. Regular maintenance and cleaning are important for proper and reliable stove operation. Maintenance of enameled or painted surfaces is recommended only when the stove has cooled down.

  • Page 9: The Nameplate

    In the first few ignitions the formation of condensate is expected, as the materials covering the stove contain moist, Check whether the chimney size is too big and whether the flame reaches the chimney top. 8. The Nameplate The nameplate is attached to the back or the bottom of stove, containing serial number that should be listed for each order.
