A.D. METALNA INDUSTRIJA VRANJE
Radnička br:1

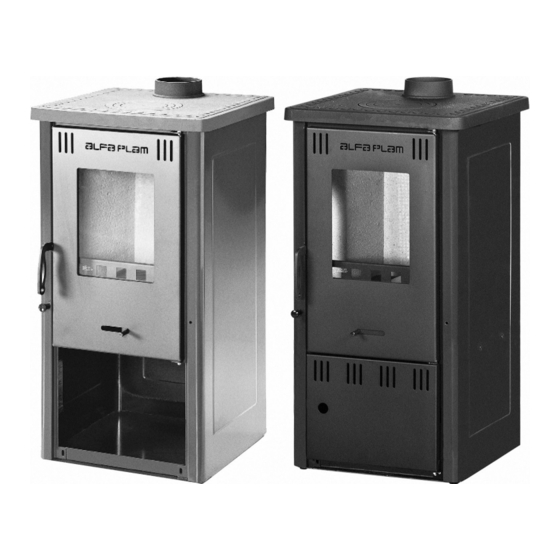

SOLID FUEL STOVE
ELITA
ELITA II
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to
.
contribute to the reduction of energy consumption and negative environmental impact
INSTRUCTIONS FOR INSTALLATION AND USE
ENG_v.2.0
1080061
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfa Plam ELITA
Summary of Contents for Alfa Plam ELITA

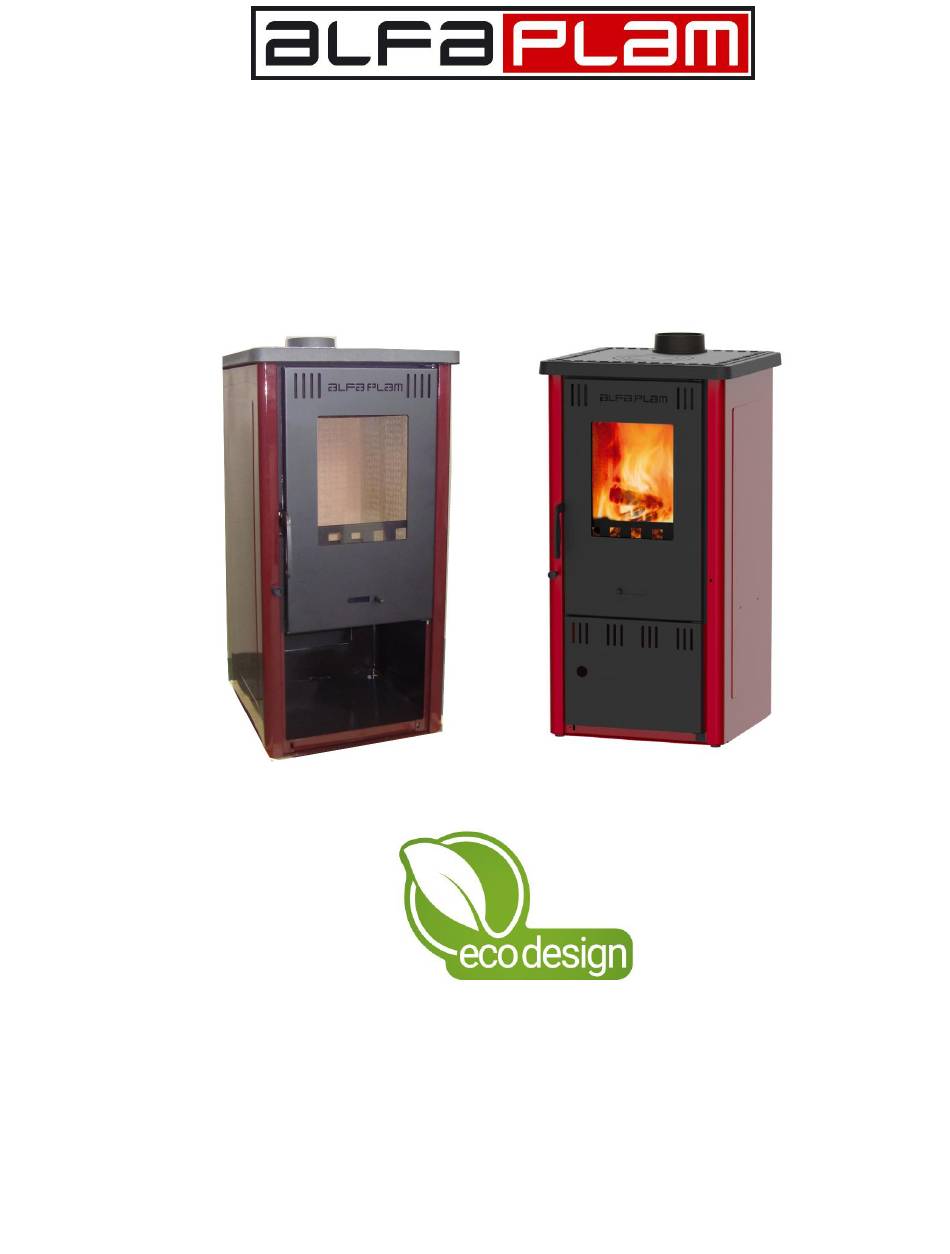

- Page 1 Radnička br:1 SOLID FUEL STOVE ELITA ELITA II This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact INSTRUCTIONS FOR INSTALLATION AND USE ENG_v.2.0...
- Page 2 DEAR CUSTOMERS! Thank you for the purchase of our product. You have chosen a good quality and economical product, the result of our long-term experience in the production of cookers and pellet stoves. Hopefully we have managed to meet your requests completely, both regarding design and the size of residential area to be heated.
- Page 3 Packaging components can be dangerous for children and adults with disabilities. There is a risk of injury. It is necessary to remove all components in a safe place. Replacement parts, other than our tested original parts, must not be used on the stove. Alfa Plam is not responsible for the consequences of upgrading the stove.
- Page 4 T h e co n t en t : Technical data ............................ 1 Stove description ..........................1 Air regulation ............................1 3.1. Primary air ........................... 1 3.2. Use of knobs on firebox door......................1 Stove installation ..........................2 Stove commissioning ......................... 3 5.1.
-
Page 5: Technical Data
1. Technical data - width 455 mm - depth 471 mm - height 905 mm - nominal heat output 6,5 KW Efficiency degree (%) 84,1 % - diameter of flue pipe connection Ø120 mm - draught 12 Pa - stove weight 67 kg - flue engagement upwards... -
Page 6: Stove Installation
4. Stove installation During stove installation you should follow valid regulations regarding the construction and firefighting requirements. The placement site should be horizontal and with sufficient bearing capacity, otherwise the appropriate measures must be applied for equal load distribution. In case of flammable floor (wood, plastics, textile...) it is necessary to put steel-sheet, copper or other inflammable material on the floor beneath the stove. - Page 7 5. Stove commissioning Before the stove is stoked for the first time it is necessary to wipe the enameled surfaces with damp cloth to prevent the formation of stains. Painted surfaces should not be touched and no objects should be placed on the stove, so that the paint would not get damaged.
-
Page 8: General Data
cleaned thoroughly. When it comes to stoking, soot formation should be avoided. Soot is produced during the combustion for the following reasons: - Poor draught in the chimney (poor-quality chimney) - The stove is handled improperly, eg. oxygen supply is interrupted too early. We do not have any influence on the above mentioned facts. - Page 9 Check whether the chimney size is too big and whether the flame reaches the chimney top. 9. The Nameplate The nameplate is attached to the back or the bottom of stove, containing serial number that should be listed for each order.
