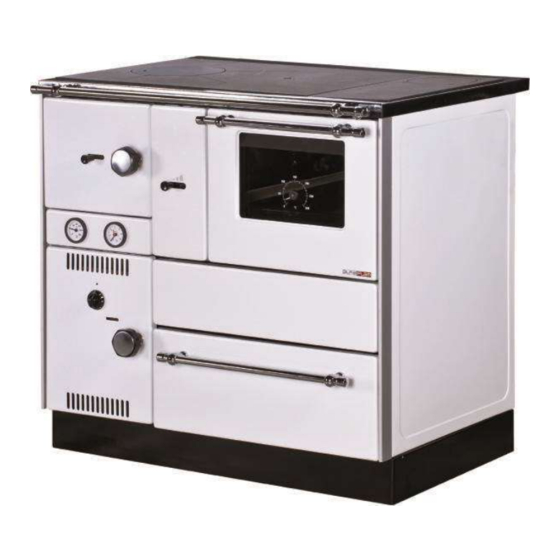

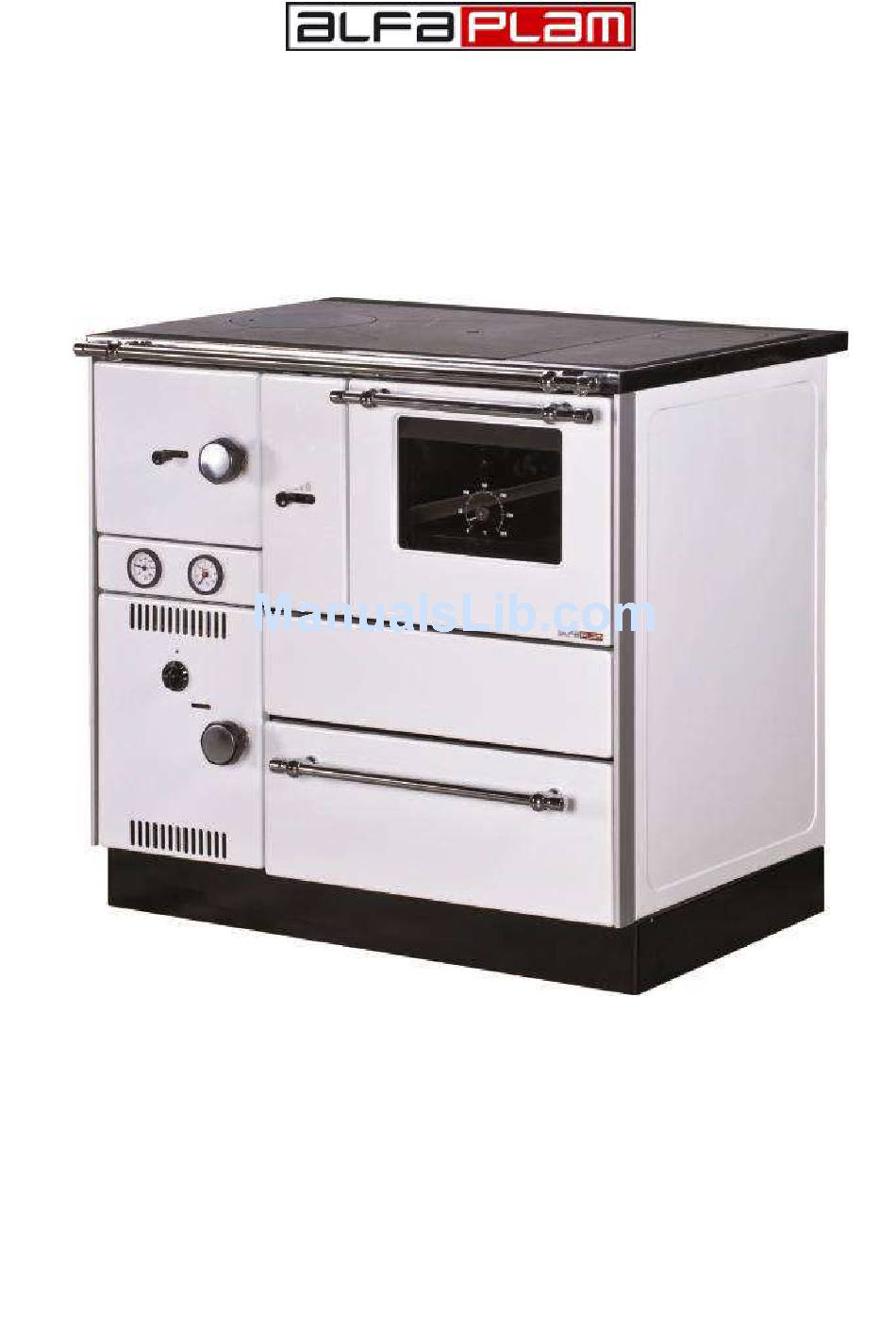

- Page 1 STOVE USED FOR LOCAL HEATING ALFA TERM -27 INSTALLATION, SETUP AND OPERATION INSTRUCTIONS...
-
Page 2: Technical Data
0. TECHNICAL DATA HEATING CAPACITY WITH THE GRATE IN DOWN POSITION: 27,56 kW / 26,7 kW Nominal heating capacity (wood/coal) 7,44 kW / 6,4 kW Heating capacity by radiation of heat (wood/coal) 20,12 kW / 20,3 kW Heating capacity to water (wood/coal) HEATING CAPACITY WITH THE GRATE IN UP POSITION: 20 kW / 20 kW... -
Page 3: Purpose
DEAR CUSTOMERS! Thank you for placing your trust in us and purchasing our stove used for local heating. We assure you that you have chosen a cost-effective, quality product, which is the result of our extensive experience in manufacturing stoves and furnaces that are used for local heating. We hope that we fully met your demands in both design and the size of the living area you need to heat. - Page 4 Figure 1...
-
Page 5: Connecting To Chimney
If a cabinet is mounted above the stove, minimum clearance between the stove’s cooktop and the cabinet should be at least 70 cm. Combustible materials (e.g. wallpapers, door casings, doors, etc.) require a clearance to flue pipes of at least 20 cm. This clearance can be reduced if flue pipes are thermally insulated and if the temperature of surrounding objects does not exceed 80C. - Page 6 A chimney is properly functioning, if it meets the following conditions (Fig. 3): If it extends the height of the rooftop (ridge, highest point) by at least 0.5 m, If it extends the height of the house adjacent to the chimney, tree or other barrier, If it is built inside house walls or, if the chimney is built on the outside walls, it must be well insulated, If the chimney connection is tightly connected to the chimney, if the connection is extended, If it is properly cleaned and free of birds nests, dirt and soot,...
-
Page 7: Flow Pipe And Return Pipe (Fig. 4, Items 1 And 2 And Fig. 7 And 8, Items 3 And 10)
The stove can be installed in closed or open heating circuit. Conform to the standards: JUS M.E7.201 and JUS M.E7.202. Closed and open circuit diagrams are shown on Fig. 7 and Fig. 8. The back of the boiler and connections are shown in Fig. 4 where: Figure 1 - Item 1 is an R1"... -
Page 8: Slope Pressure Regulator 1/2" With Manometer (Fig. 7, Item 19 And Fig. 7B)
The fluid recommended in the installation is water and glucose antifreeze of 30%. Note: At reaction, and valve operation, during fluid cooling in an overheated boiler part of the new fluid is injected into the boiler, but the part is also ejected from the boiler. It will be poured down the drain. If the antifreeze is in the installation you must keep in mind that a certain percentage will go out and pour down the drain! We recommend the thermal valve Caleffi type 544, 1/2"... -
Page 9: Practical Instructions And Heating System Operation Advice
It is recommended to discharge the water from the system at least once, to empty the system of dirt. For a system to which only the “Alfa term 27” stove is connected, we recommend an expansion vessel of 25 (l) and not more than 18 (l), which should be fitted on the return pipe, as close to the boiler as possible, and no block valves can be fitted between the boiler and expansion vessel. -
Page 10: Startup And Lighting The Fire
INSTALLATION OF OPEN CIRCUIT SYSTEM FOR ALFA TERM 27 HEATING STOVE Figure 8 1. Hot water boiler 10. Return pipe 2. Flue pipe connection 11. Spigot for filling and discharge 3. Distribution pipe 12. Safety valve connection 4. Open expansion vessel 13. -
Page 11: Using The Grate In The Up And Down Position
cooking and baking. During this process, fire box and ash pan door (Fig. 1, Items 7 and 9) must be closed, if you need controlled burning. Fire lighting damper is opened only while the fire is being lit (10 to 15 minutes). Fire box and ash pan door may be opened and closed manually or using the wrench shown on Figure 6. -
Page 12: Cooking, Baking And Frying
1, Items 10 and 19) and the temperature of water in the boiler. Regulation knob has several positions that are written on the knob as specified in Table 1: Table 1 Regulator knob position Temperature of water in the stove (C) Regulator closed In the power regulation system, air regulator (damper) fully controls combustion air supply if other openings are closed. -
Page 13: Conserving The Stove
14. CLEANING AND MAINTENANCE Each time before loading the fuel, clean the grate using a small shovel by opening the grate holder or through open firebox door. Remove the ashes from the ash pan at least once a day and remove the larger residues by opening the ash pan door and grate holder. - Page 14 Reduced expansion vessel pressure or vessel is completely If water is leaking from the valve, replace empty. Remove the expansion vessel. vessel’s lid or valve Of only air is coming out from the valve, remove head and bleed the vessel from the system and apply additional Sudden water some air through the pumping.
- Page 15 This is proper and do not touch anything. When Power outage. the system is cold, thermal valve will be closed. After that, check the pressure in the installation and fill the system to the required. Cooling thermal fuse is activated (thermo open ash pan door Close the ash pan door and reduce system water valve) because...
-
Page 16: Table Of Contents
17.0 GUARANTEE CONDITIONS 17.1. TIME OF GUARANTEED SERVICING This implies the period during which we guarantee the service, accessories and space parts, starting from the day of purchase of the device. The time of guaranteed servicing is in accordance with the valid legal regulations. In case of change of the model and the design of the device, the term for change of parts that have modified design is within the legal term. - Page 17 Outline dimensions of ALFA TERM 27 stove Figure 16...
