METAL INDUSTRY Ltd., VRANJE
Radnicka 1, Phone: 017/421-121
Solid fuel stove
INOX 75
1
Instructions for installation and handling
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level,
in order to contribute to the reduction of energy consumption and negative environmental impact.
ENG_v.1.0
1611841
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfa Plam INOX 75
Summary of Contents for Alfa Plam INOX 75
- Page 1 METAL INDUSTRY Ltd., VRANJE Radnicka 1, Phone: 017/421-121 Solid fuel stove INOX 75 Instructions for installation and handling This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.

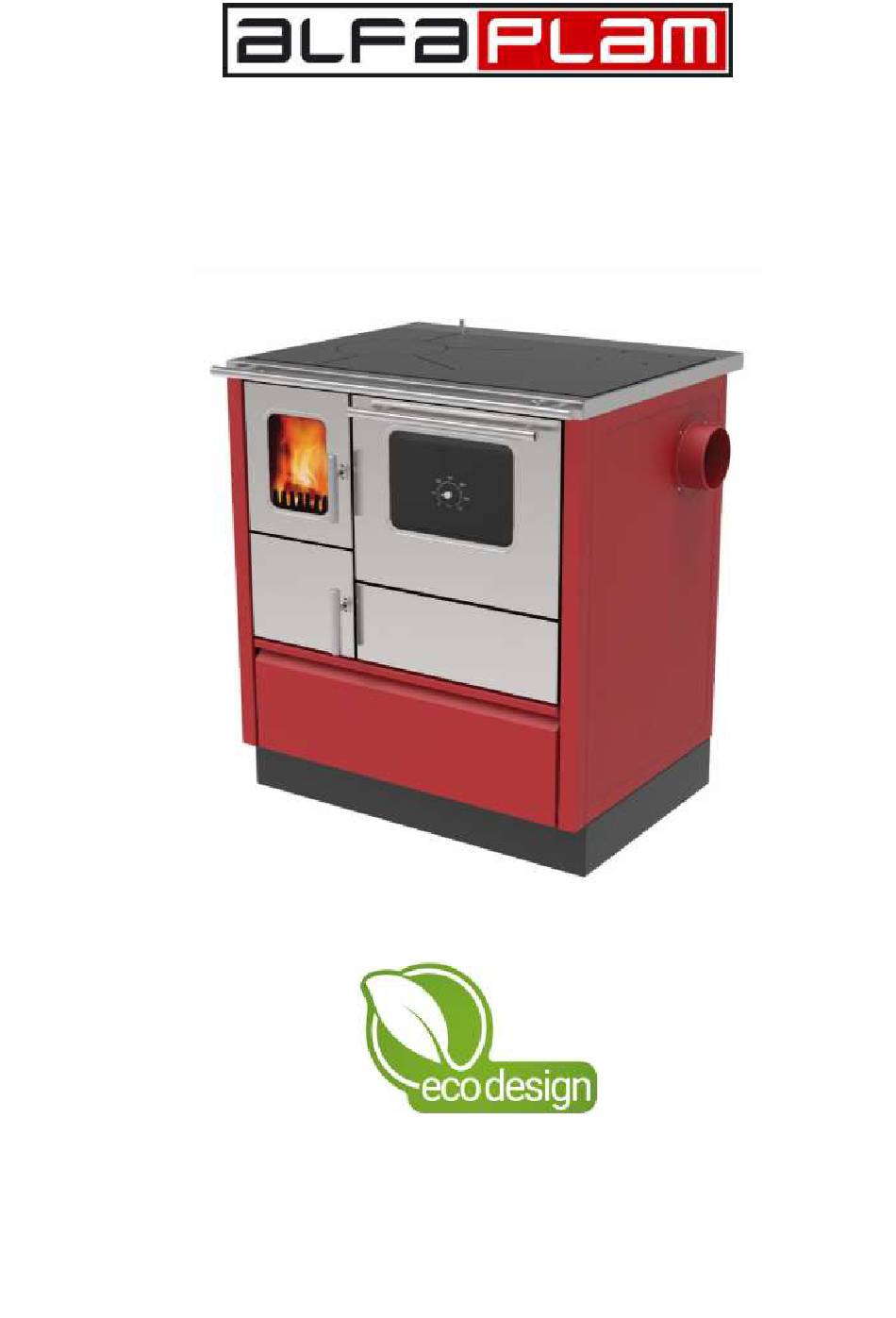

- Page 2 Fig. 1 Solid fuel stove INOX 75 1. Firebox door, 2 Slide shutter handle (air control), 3 Ashtray cover, 4 Flue pipe connection, 5 Drawer for dishes, 6 Oven door, 7. Cover for the opening for cleaning.
- Page 3 INSTRUCTIONS FOR INSTALLATION, USE AND HANDLING These instructions for installation, use and handling apply to the following types of stoves: Inox 75. In general, one must adhere to the heating regulations in the country, as well as to all necessary local, national and European norms and regulations.
-
Page 4: Table Of Contents
Contents: TECHNICAL DATA ............................1 INSTALLATION OF THE STOVE ........................1 FLUE INSTALLING ............................1 AIR REGULATION ............................3 PRIMARY AIR ............................3 HEATING FLAP ............................. 3 OVEN DOOR ............................3 Fuel drawer ............................3 STOVE COMMISSIONING ..........................4 STOKING .............................. 4 COOKING .............................. -
Page 5: Technical Data
TECHNICAL DATA UNIT INOX 75 Rated heating capacity ( kW ) Temperature of flue gases °C 159,2 Required pressure in the flue Dimensions of the stove (width x depth x height) (mm) 750 x 600 x 850 Dimensions of the oven (width x depth x height) - Page 6 slight draft good draft very strong draft Figure 2 The flue is functioning well if it satisfies the following conditions (fig. 3): - It protrudes above the roof top (ridge) at least 0,5m. - It is higher than the neighboring house that is close to the flue, a tree or some other barrier. - It is in the internal walls of the house or it is well insulated if it is in the external walls.
-
Page 7: Air Regulation
AIR REGULATION Figure 4 Figure 5 PRIMARY AIR Primary combustion air, and thus the heating capacity of the stove, is determined through the primary air opening. That air is controlled on the ashtray support through the slide shutter for the primary combustion air (Figure 4, item 5). The lever on the hotplate frame (figure 5, position 9) shows the direction for opening and closing the slide. -
Page 8: Stove Commissioning
Tipe of solid fuel stove Quantity Time Adjusting the primary air Inox 75 1,77 kg 1,0 h Make sure than you never put more wood or briquettes than what is really required for the rated capacity of heating. The above indicated fuel quantity must not be exceeded because this may cause overheating of the stove. -
Page 9: Removal Of Slag And Ash
For baking pasty you need importantly higher temperature than when baking cookies. Hence, the time of preparation (with prior warming) is necessarily a bit longer. REMOVAL OF SLAG AND ASH Slag is removed with the supplied accessories, blades. The ashtray should be emptied on a regular basis during every kindling. You should clean the trash rack 1-2 times per week.
