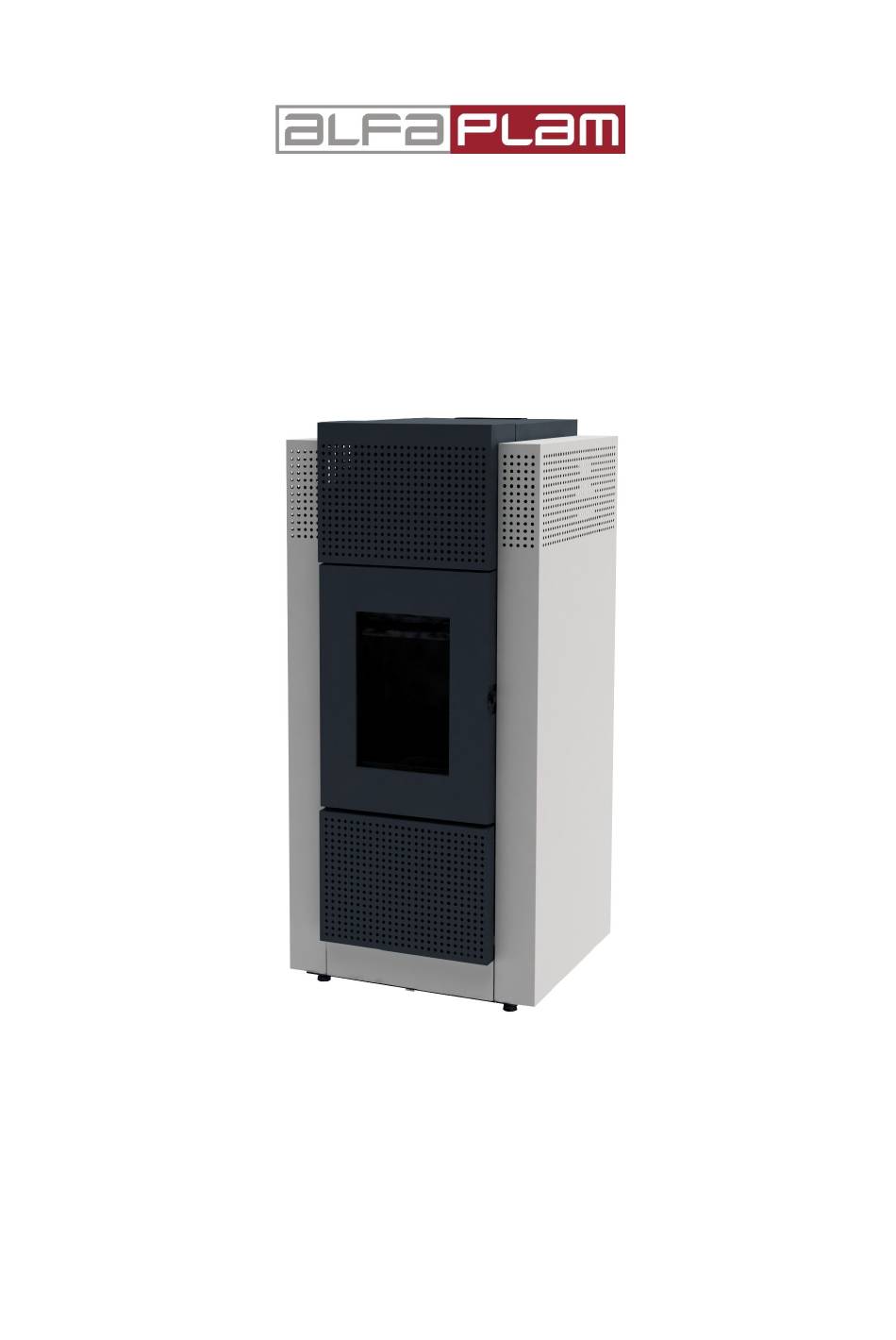

17500 VRANJE, SERBIA
1 Radnička St., Telephone: 017 421 121
DINO PELET STOVE FOR CENTRAL HEATING
→ Pellet fuel from timber biomass biofuels →
INSTRUCTIONS FOR CONNECTING, OPERATION, AND MAINTENANCE OF THE STOVE
DINO PELET STOVE FOR CENTRAL HEATING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DINO and is the answer not in the manual?

Questions and answers

Related Manuals for Alfa Plam DINO

Summary of Contents for Alfa Plam DINO

  • Page 1 17500 VRANJE, SERBIA 1 Radnička St., Telephone: 017 421 121 DINO PELET STOVE FOR CENTRAL HEATING → Pellet fuel from timber biomass biofuels → INSTRUCTIONS FOR CONNECTING, OPERATION, AND MAINTENANCE OF THE STOVE DINO PELET STOVE FOR CENTRAL HEATING...
  • Page 2 Heating devices (in this manual they are called “stoves") by Alfa Plam (in this manual titled Alfa Plam) are assembled and tested in accordance with the safety and applicable measures, and regulations of the European Community. This manual is intended for users of the stoves, contractors who install the stoves, operators and workers for stove maintenance that is shown on the front page of the manual.

  • Page 3: Technical Characteristics Of The Stove

    This manual reflects a work of art at the moment when the stove was placed on the market. Therefore, Alfa Plam does not take into account the stoves that are already on the market with the appropriate technical documentation and considers them as defective or inadequate after any kind of modification, adaptation or application of new technologies to newly produced machines.

  • Page 4: Responsibilities Of The Manufacturer

    2.0 RESPONSIBILITIES OF THE MANUFACTURER In issuing these instructions, Alfa Plam accepts no civil or legal liability, direct or indirect, due to: - Accidents caused by not respecting the standards and specifications given in this manual, - Accidents caused by improper handling or use of the stove by the user,...

  • Page 5: Installing The Stove

    - altitude at the place of connecting the stove, - the existence and suitability of the protective cover for the chimney that is resistant to the wind, - the possibility of securing the external air supply and the size of the necessary openings, - simultaneous use of stove that needs to be connected with other equipment that already exists at that place.

  • Page 6: The Smoke Exhaust System

    metal plate under the stove on the floor with the thickness of 3-4 mm that will stretch 30 cm in front of the stove. The stove must be at least 25 cm away from the surrounding walls. Always leave at least 15 cm between the rear side of the stove and the wall to allow for proper air circulation, or for the air to flow properly in that area.
  • Page 7 3. By adjusting certain parameters in the stove. This adjustment must be done only by an authorized service of Alfa Plam. - Make sure that the connection to home chimney is properly sealed. - Avoid contact with material that burns easily (such as wooden beams), and in all cases they should be isolated with anti-fire material (see Figure 2).

  • Page 8: System Type

    The stove is designed to be connected to the chimney flue pipes with a diameter of 80mm. If you are not using a standard chimney, but you have a new chimney, or you are modifying the existing one, use insulated stainless pipes (double wall) with a diameter given in Table 1. Flexible pipes are not permitted. SYSTEM TYPE DIAMETER mm SYSTEM MARK...
  • Page 9 (Figure 2a). Using the knee with an opening for cleaning allows for regular cleaning, without the need to dismantle the pipes. Drain gases in the chimney connector are under mild pressure so it is necessary to check that the cover for cleaning the ashes is completely sealed and to seal it after each cleaning. Please make sure everything is properly returned to its place, and check the condition of the seals.
  • Page 10 Figure 3 3.3 INSULATION AND THE DIAMETER OF THE OPENING (HOLE) ON THE ROOF (OR IN THE WALL) Once you determine the position of the stove, it is necessary to make a hole through which a smoke pipe must pass. This varies depending on the type of installation, diameter of the exhaust gas pipe (see Table 1) and the type of wall or roof for the tube to pass.
  • Page 11 Figure 5 1. Armature 80> 100 2. A hose fitting with a T shape Ø100 Ø80 Figure 6 1. A hose fitting with a T shape - a T connector pipeline 2. Cleaning direction 3. Opening, a window for servicing/inspection 4.
  • Page 12 Figure 7: Mounting the flue pipe Diameter of the smoke exhaust pipe (mm) Insulation thickness D.80 D.100 Diameters of the holes (holes) to be made (mm) The walls are made of wood, or in any case, flammable, or parts that are flammable. Concrete wall or a roof A wall or a brick roof Table 2: Insulation thickness for the part of the system that passes through the wall or roof...

  • Page 13: Combustion Air Supply

    less than 1.20 m 0,50 m above the ridge greater than 1.20 m 2,60 m from the slope of the roof Table 3 However, it is required to provide an initial vertical extension of 1,5 m (minimum) in order to provide proper discharge of smoke.

  • Page 14: Important Instructions

    - That the characteristics of electrical systems correspond to the information that is specified in the data on the identification plate on the stove. - If the smoke extraction system is metal, it must have a grounding terminal in accordance with the existing standards and legislation.

  • Page 15: Safety Measures For The User

    - Always use the appropriate tools, - Before they begin any work on the stove they need to keep in mind that it should be cold and that the ashes should be cold as well. They need to make sure the handles are cold as well. −...

  • Page 16: Routine Cleaning And Maintenance Done By The User Of The Stove

    - For turning the stove ON never use gasoline, kerosene or any other flammable liquid. Keep these types of fluid away from the stove while it is running, - Never turn the stove ON if the glass is damaged. Do not strike the glass or the door so that they do not get damaged, - While the stove is ON, do not open the door to clean the glass.
  • Page 17 1. For the best operation of the stove, all holes must be free of ash 2. The hole for inserting the Figure 11 heating element to burn fuel The ash container should be vacuumed or emptied if it is full. Make sure the stove and the ash are cool.
  • Page 18 Figure 12 Figure 13 - UPPER SMOKE CHAMBER Should be manually cleaned for every 90-100 kg of spent pellets (two full tanks). Lift the tank lid for the pellet. In the tank, in the upper front part, under the lid, there is a button for the chamber cleaning mechanism.

  • Page 19: Special Maintenance

    Make sure the stove and the ash are cool. After prolonged use, it is possible that the asbestos tape for sealing the door separates. This sealing tape sticks to the door with silicone resistant to high temperatures. To resolve this, tape the back of it using an adhesive that is resistant to high temperatures.

  • Page 20: Storing The Pellets

    9. CONNECTING THE HYDRAULIC INSTALLATIONS 1. The Dino Stove 2. Chimney connector 3. Distribution pipe 4.
  • Page 21 ALFA PLAM disclaims all liability in case of a material or bodily harm, in the event of failure, poor functioning, if the above recommendations are not followed.

  • Page 22: Circulation Pump

    Figure 16 10. PRESSURE AND RETURN PIPE Outputs of the pressure and return pipes on the boiler are 1'' and you cannot reduce them or taper to the first bifurcation. Use a 1’’ steel pipe or a copper pipe with the outside diameter of Ø28mm or greater. When installing, strictly observe the slopes of pipes as they need to be at 0.5% (5mm.

  • Page 23: Automatic Air Valve

    A high-quality Wilo RS 25/6 – circulation pump has been built into the stove on the return line of R1”. The power of the pump is 93W. It is turned on and off by the electronics by the set water temperature. The pump shaft has to be in a horizontal position.
  • Page 24 13. PRACTICAL INSTRUCTIONS AND TIPS FOR THE USE OF THE HEATING SYSTEM - All connections must be well sealed and fastened. There must be no leakage of water. - Before you turn the stove on for the first time, the complete installation shall be tested with water at a maximum pressure of 1.9 bar.
  • Page 25 NOTICE: this method of opening and closing of the door is applied for additional safety of users because it prevents accidental opening of the firebox door, and in particular prevents the children from opening the door, which could cause injury. 16.
  • Page 26 Figure 19 Figure 20 depicts the opening of the upper ash container with a special key (Pos.1) whose end is inserted into a hole on a handrail and pulled towards yourself. Key is delivered with the stove as an additional part. Closing of the ash container is done by aligning the ash container with the front side of the stove and turning the handrail all the way towards the front side of the stove.

  • Page 27: Description Of The Push Button Display

    18.DESCRIPTION AND MODE OF OPERATION OF THE CONTROL SYSTEM 18.1. DESCRIPTION OF THE PUSH BUTTON DISPLAY Button to adjust - Upper pointer Button to adjust + Lower pointer MENU button ON/OFF push button Pointers Function Upper pointer shows the status of the stove, the selected menu, the operation doze indicator, and the operation of the time-control indicator program.
  • Page 28 The display when the stove is running in the combustion stage Upper pointer: The upper display alternately shows: BURN, and then P5D5 , with actual current running force, and adjusted running force. Lower pointer: The lower display alternately shows: The temperature of the flue gases: The boiler water temperature: The room temperature: Boiling water return line:...
  • Page 29 Figure 21...

  • Page 30: When The Boiler Is On

    18.2. WHEN THE BOILER IS ON The display shows the current phase of the mode of operation (for example TestFire, HeatUp, etc.) and alternately on the upper display shows every 5 seconds the set and the actual capacity of the boiler. By pressing the + button you will increase the power of the stove, while by pressing the - button you will decrease it.
  • Page 31 After that, for every day of the week we choose 3 time periods. For example, for Tuesday the upper display shows DAY2, and the lower display shows P1, P3, and P6, which means that on Tuesday the boiler will work in periods programmed in programs P1, P3, and P6. Figure 22: Time setting diagram...
  • Page 32 Figure 23: Showing the navigation through the menu timer...

  • Page 33: Signs And Messages On The Display

    18.5. SIGNS AND MESSAGES ON THE DISPLAY Signs on the pointers The meaning of the message and the status of the stove The stove is idle. The stove is idle, but the time mode is activated, so that it turns on automatically at the time that was set up.
  • Page 34 The stove is in the process of stopping and cooling. When even with the minimal force the room temperature reaches a certain e level the stove goes into the COOL AIR phase and begins to cool down. The stove is automatically switched on again after the room temperature falls to a certain value.
  • Page 35 18.6. ELECTRICITY SCHEME Figure 24 Electricity scheme...

  • Page 36: Menus

    18.7. MENUS If you press and hold the MENU button the menus will show one after the other. To select the menu you need to let go of the button when you see the respective menu. The descriptions of the menus are listed below Figure 25: Menu description...

  • Page 37: Alarming Situations

    18.8. ALARMING SITUATIONS...

  • Page 45: Safety Measures

    19. SAFETY MEASURES The stove is equipped with the following safety devices: - PRESSURE REGULATOR Checks the pressure in the chimney. It stops the spiral conveyor of the pellets when the drain is clogged or when there is pressure (wind). - FLUE GASES TEMPERATURE SENSOR Checks the temperature of flue gases that allow the stove to be turned ON or stop the ignition if the flue gas temperature drops down below the programmed value.
  • Page 46 It worked for a 1. The ignition phase is not over. 1. Try igniting again. couple of 2. Check if there is an electricity interruption. 2. See last instruction. minutes but then 3. The smoke channel is clogged. 3. The smoke channel is clogged. it turned off.

  • Page 47: Warranty Terms And Conditions

    ATTENTION Disposing of the stove in public places poses a serious risk for people and animals. In such cases it is always the responsibility of the owner if a person or an animal gets hurt. When the stove is dismantled, this manual and all other documents related to the stove must be destroyed.

  • Page 48: Table Of Contents

    TABLE OF CONTENTS 0.0 Technical characteristics of the stove 1.0. The purpose of the instructions manual 1.1 Updating the instructions 2.0 Responsibilities of the manufacturer 2.1 Main characteristics of the user 2.2 Transporting and moving the stove - handling 2.3 Responsibilities of the manufacturer 3.0 Installing and connecting the stove 3.1 Setting up the stove 3.2 The smoke exhaust system...
