9

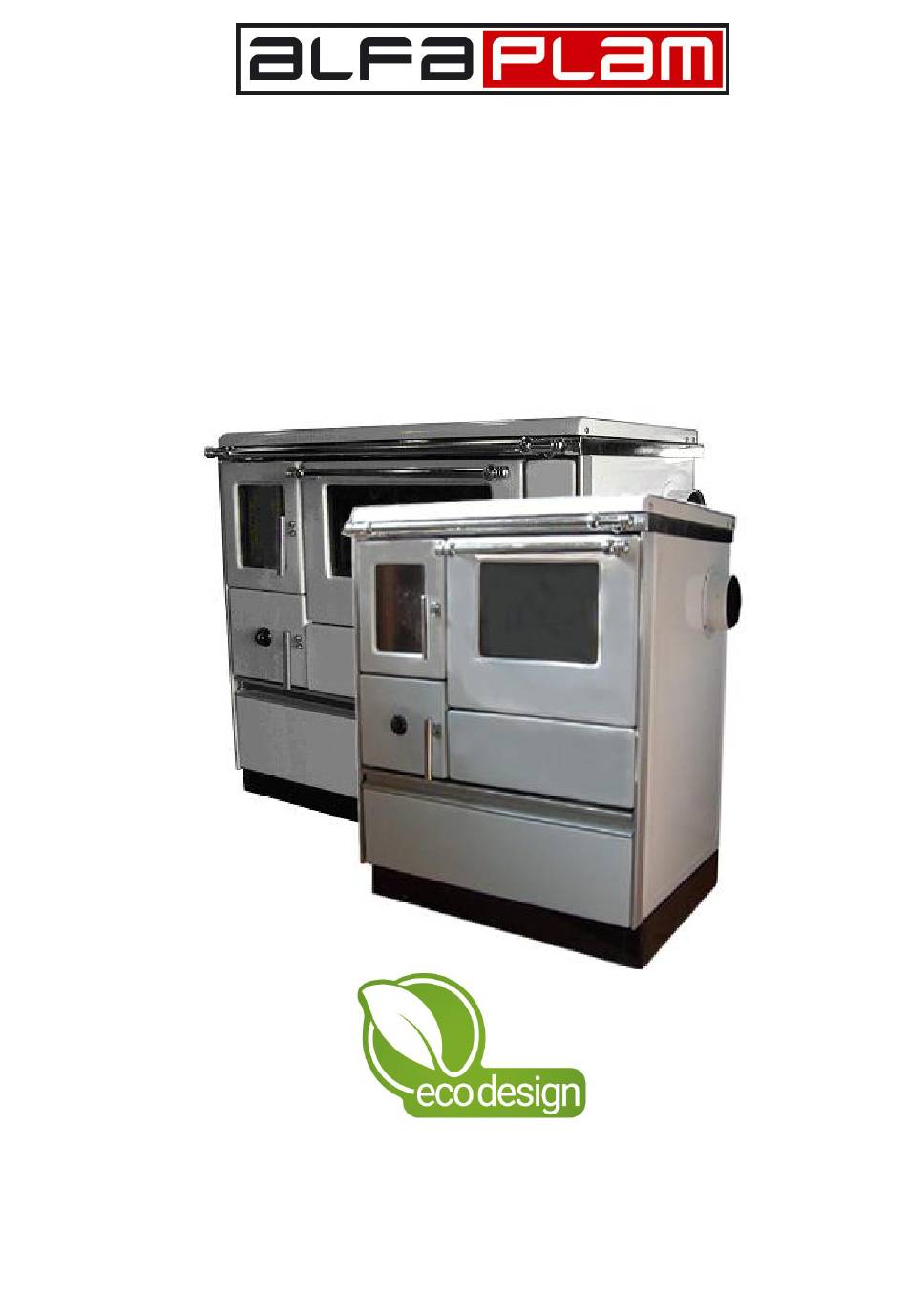

METAL INDUSTRY Ltd., VRANJE
Radnicka 1, Phone: 017/421-121

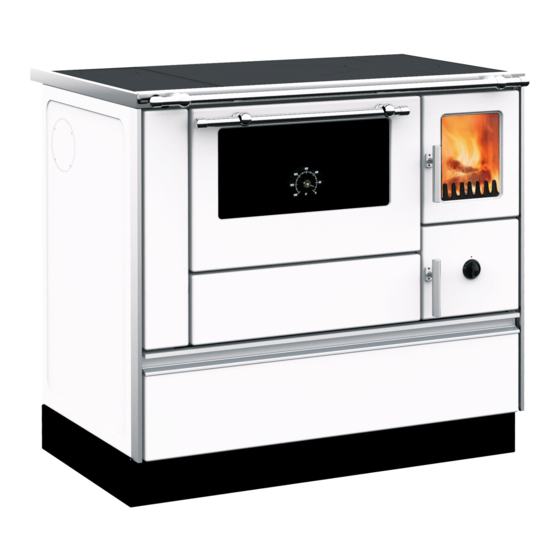

Solid fuel stove
ALFA 70 DOMINANT,
ALFA 90H DOMINANT
1
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to
contribute to the reduction of energy consumption and negative environmental impact.
Instructions for installation and handling
ENG_v.1.0
1611988
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfa Plam Alfa 70 Dominant
Summary of Contents for Alfa Plam Alfa 70 Dominant
- Page 1 METAL INDUSTRY Ltd., VRANJE Radnicka 1, Phone: 017/421-121 Solid fuel stove ALFA 70 DOMINANT, ALFA 90H DOMINANT This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.
- Page 2 These instructions for installation, use and handling apply to the following types of stoves: ALFA 70 DOMINANT, ALFA 90H DOMINANT In general, one must adhere to the heating regulations in the country, as well as to all necessary local, national and European norms and regulations.
- Page 3 Contents: TECHNICAL DATA ............................1 INSTALLATION OF THE STOVE........................1 AIR REGULATION ............................1 3.1. PRIMARY AIR ............................2 3.2. HEATING FLAP ............................. 2 3.3. OVEN DOOR ............................2 3.4. Fuel drawer ............................2 STOVE COMMISSIONING ..........................2 4.1. STOKING .............................. 2 4.2.
- Page 4 TECHNICAL DATA UNIT DOMINANT 70 DOMINANT 90 H Rated heating capacity ( kW ) Temperature of waste gases (° C) 161 in cleaved wood 161 in cleaved wood Required pressure in the flue ( Pa ) Dimensions of the stove (width x 700x600x850 900x600x850 depth x height) mm...
- Page 5 PRIMARY AIR The primary combustion air, thereby the capacity of heating of the stove is determined with the primary combustion air. This air is regulated by means of the regulator for primary air on the ashtray door (figure 1 position 3). The knob on the ashtray door (figure 2 position 9) shows the direction of opening and closing of the slide rule.
- Page 6 When adding fuel, slightly open the door of the firebox without pulling out flue gases, in this manner you will avoid having flue gases in the room. The rated heating capacity is achieved when you put the next fuel quantity and you adjust: Fuel Fuel quantity Time of...
- Page 7 Bad draught of the flue (bad flue), the stove is improperly used, for example, the supply of oxygen is dampened too early. We cannot influence on these factors. For this reason we do not provide a guarantee for clean glass OPENING FOR CLEANING Fig.
