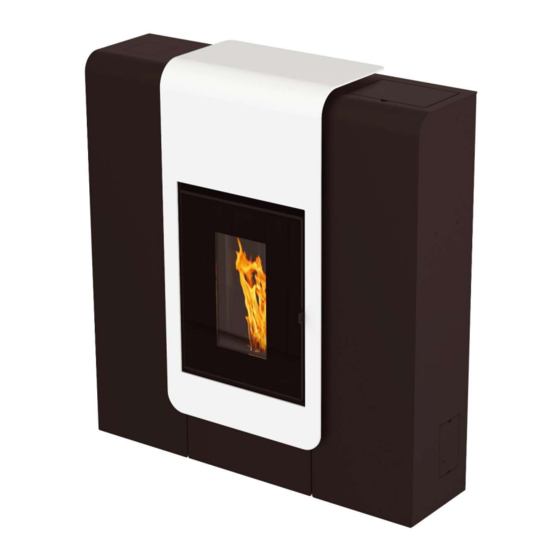

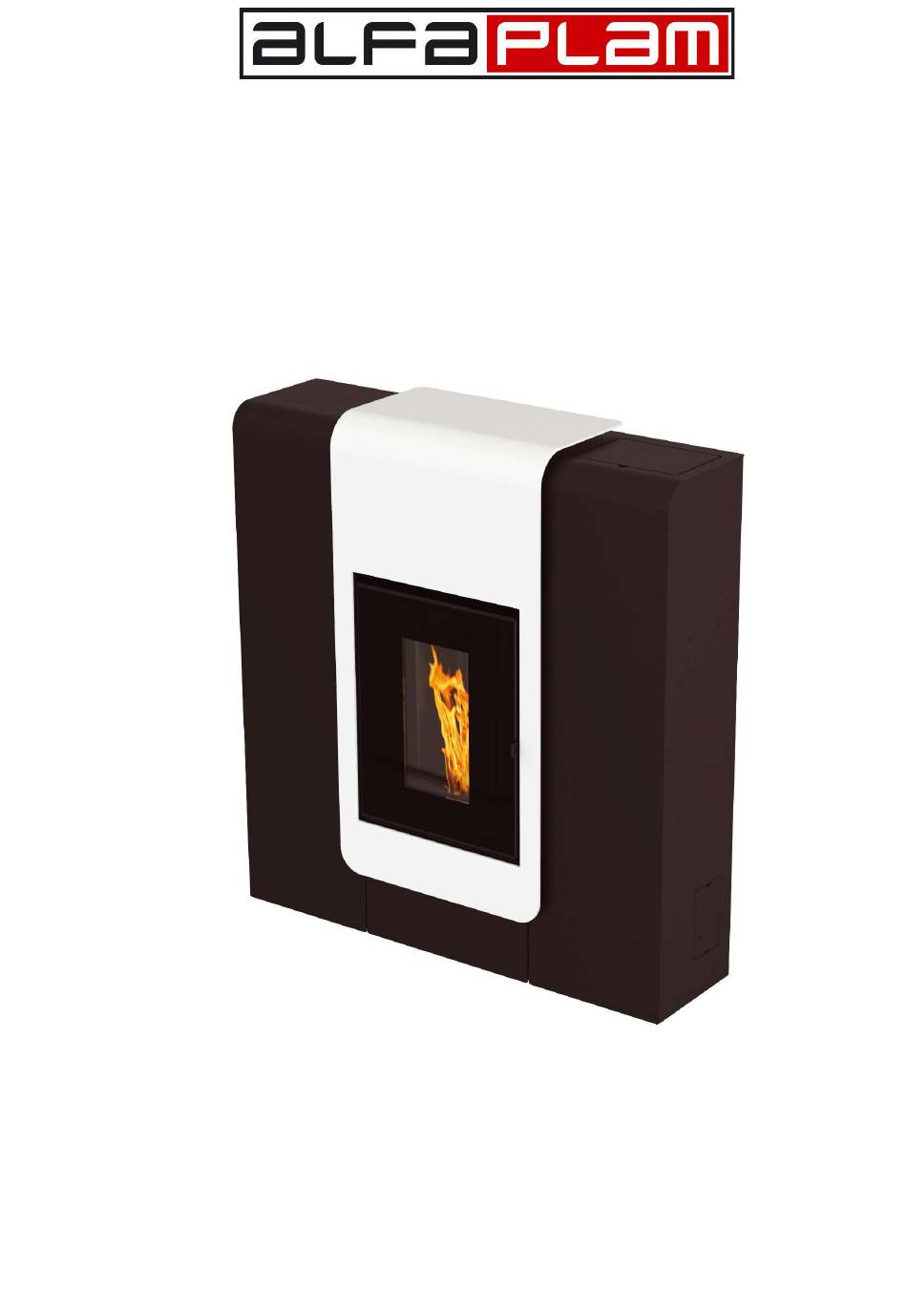

- Page 1 METALNA INDUSTRIJA AD 17500 VRANJE, SRBIJA Radnička 1, Tel.: 017/421-121 INSTALLATION, USE AND MAINTAINANCE MANUAL CFH XILA ENG_v.1.0...
- Page 2 This manual uses the following symbols: CAUTION: Safety warning PROHIBITED: Prohibited activity INFORMATION: Important information ALFA PLAM a.d. declines any liability for indirectandimmediate injuries or property damages caused by failure to follow or apply the instructions contained in this manual.
-
Page 3: Table Of Contents
CONTENTS: INTRODUCTION ........................... 1 Product Serial number ..........................1 Materials ..............................1 Certificates ............................... 1 Dimensions ............................... 1 Product technical data ..........................3 Fuel characteristics ..........................4 General warnings and recommendations ....................5 Unit assembly ............................5 Exhaust flue gas pipe characteristics ..................... 6 SMOKE DISCHARGE ON EXTERNAL WALL ............... -
Page 4: Introduction
Product Serial number can be found in the warranty and on the serial number plate affixed to the rear side of the product. In case of request for service or help Product Serial number is required. Materials Products of the Alfa Plam a.d. brandgenerally use materials which have the following advantages: • Thick sheet-metal plates which enable the device solid structure;... - Page 5 A: Exhaust gases pipe diameter ø 80 Dimensionsin mm B: 3/4” Unit inflow pipe C: 1” Unit return pipe D: Air intake ø 50 Details...
-
Page 6: Product Technical Data
* The values calculated in accordance with the heat demand of 35 W/m and a ceiling height of 3 m. *The values calculated in accordance with the heat demand of 35 W/m and a ceiling height of 3 m. Product : CFH XILA Max. Min. Measurement Unit... -
Page 7: Fuel Characteristics
Rated electrical power Supply voltage Nominal frequency Net weight Basic characteristics The controlled combustion system with flue gases heat recuperation Standard Flue gases flow pressure control switch Standard Self-cleaning glass Standard Closed vessel mounting modification Standard One-way control via radio Optional Automatic reactivation in case of power failure Standard... -
Page 8: General Warnings And Recommendations
ATTENTION: In case the appliance will not be used for a longer period of time (more than 15 days), remove all remaining pellet from the hopper to avoid humidity increase which can lead to product malfunction. ATTENTION: Excess humidity of pellet can cause deterioration and create dust, which can lead to increased accumulation in the boiler area and even blockthe pellet feed system (auger). -
Page 9: Exhaust Flue Gas Pipe Characteristics
When checking the compatibility of the system it is recommended to establishwhether the support surface (floor)has adequate carrying capacity (kg) in order to bear the weight of the product. If that is not the case, it is recommended to take correspondent security measures (for example, use of load deployment panel). -
Page 10: Smoke Discharge On External Wall
Figure 2.3: Exhaust flue pipe The room where the heat generator should be installed must not have mounted aspirators because they can reduce the pressure in the environment. It is strictly prohibited to close the air intakes. The exhaust pipe should be cleaned at least once a year; we recommend performing a thorough cleaning of the pipe and its connections. -
Page 11: Unpacking And Waste Disposal
It must be made of a material resistant to high temperatures, combustion product effects and corrosive effects of possible condensation; Predominantly vertical configuration without discrepancyon vertical angelslarger than 45°. It is recommended that the base of the chimney is equipped with a collection chamber for solid materials or condensation (R). This chamber must be equipped with the hermetic door (I). -
Page 12: Handling And Storage
Handling and storage The product must be handled in an upright position using a forklift or other suitable transport vehicle. Protect glass, plates, door and other sensitive components of the productfromshocks and vibration. The product must be stored in a dry place protected from weather conditions. Control panel electrical connection diagram In order to provide information diagram of in and out control unit ports is attached below. -
Page 13: The First Ignition
ONLY with the help of specialized technicians from the Alfa Plam Company, who will analyze the situation and offer the best solution. In order to properly heat the system it is recommended to adjust the product power to values4 or 5 during ignition phase and a few minutes after. -
Page 14: Control Panel
Manual thermostat reset for measuring the hopper temperatureblocks the product operation if certain safety limit is exceeded; The pressure switch allowsdetection of all potential obstructions in the flue gas pipe; safety valve with 3 bars calibration; Water pressure sensor; Air intake meter. It is prohibited not to install or remove any of the safety devicesdescribed above. -
Page 15: Display
LED ON: No pellets in hopper LED ON: Summer mode selected LED ON: Winter mode selected LED ON: Pellet safety valveorPellet feeder motororCleaning motor is active (only for V2 out) LED ON: Request for running water (closed contact). Only for hydraulic systemswhich have available use of Flow Switch. DI SP L AY Below are depicted three types of displays, respectively: •... -
Page 16: User Menu 1
Control panel menu consists of a user menu that allows end users to operate the stove regarding their needsand a secret menu that allows authorized personnel to modify operation parameters, perform operation tests of outputs and check operation history of the system. User menu 1 User menu 1 consists of sub-menus for quick accessand displays where you can see and modify some parameters. -
Page 17: Combustion Fan Modification
To access the sub-menu press and holdK3key. The lower display showsPellandupper display showsset value. K3/K7 keys increase/decrease theset value; default value is '0'. After 3 seconds value is stored and the display returns to normal. This function allows you to make small corrections in the amount of pellet introduced during operation. CO M B US TI O N F A N M O DI F I CA T I O N This menu allows modification of combustion fan. -
Page 18: User Menu 2
K3/K7 keys increase/decrease theset temperature value. The lower display showstH andthe blinking set valuethe boiler should reach. User menu 2 User menu 2consists of additional menus where you can see and modify some parameters. PressK5 key to access the User menu 2. Use keys K3/K7 to scroll through menu options shown on display.See table below: DISPLAY DESCRIPTION... -
Page 19: Combustion Recipe Menu
The upper display showsCron. Click K5 key to access the menu. When you access the menu, the upper display showsProG, and this menu has 3 sub-menusfor 3 available programming modes: Daily: allows you to set 3 programsfor each day of the week; Weekly: allows you to set3 programs a day, equally for all week days;... -
Page 20: Clock Menu
When you access the menu the upper display shows current recipe. To modify the recipe clickK5key; the upper display blinks. K3/K7 keys increase/decrease theset value. To store the setting clickK5keyorK1key to exit. To return toUser menu 2 settings pressK1key. CL O CK M E NU Clock menuallows modification of current date and time. - Page 21 Figure6.1: Combustion chamber In order to remove the combustion remains, the product is equipped with the mobile panel (marked A in Figure 6.2). For detailed cleaning remove the ash compartment panelby unscrewing the fixing boltsand continue vacuuming the ash. When re-assembling, make sure the panel is firmly sealed. Figure 6.2: Opening ash compartments ATTENTION: After maintenance, firmly seal the plate.
-
Page 22: Emergency Maintenance
After heating period it is recommended to remove the remaining pellet from the hopperand store it according toinstructions in the first chapter. The exhaust gas pipe and its components should be cleaned in detail (at least once during the season) to prevent the risk of fire. Combustion chamber gaskets should be checked for consumption tear because it can result in poor combustion process. -
Page 23: Troubleshooting
Figure6.3: Access to pipes Whenreturning the cover it is recommended to seal themusing high temperature resistant silicone, for example, to ensure they are air- tight. It is recommended to contact manufacturer support center to get additional information and advice on products that should be purchased. - Page 24 Contact service Shut down due to Inadequate waste of heat Allow the machine to shut Confirm the correct configuration of the Er04 overheated water produced by the boiler down and then press and heating system hold ON key for 3 seconds Faulty pump Contact service Faulty probe...
-
Page 25: Connection Of The Hydraulic Instalation
An obstacle or major soiling of the primary air Check the primary air openings pipes Er41 Minimum air flow during check up not reached Contact service Allow the machine to shut down and then press and Check soiling and draft of flue gas pipe Flue gas pipe is blocked hold ON key for 3 seconds Contact service... - Page 26 ALFA PLAM Company reserves the right to change this manual at any time and without previous announcement, in order to improve the quality of the product. ALFA PLAM is not responsible for any mistake or uncertainty in the content of this Manual. Any complete or partial reproduction of the Manual, without the Company’s written approval is strictly forbidden.
