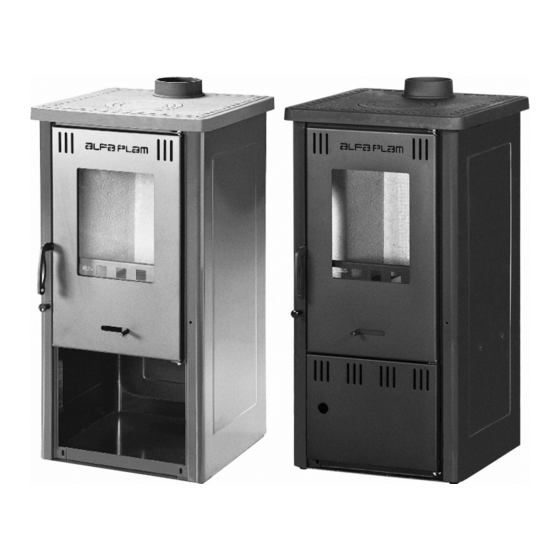

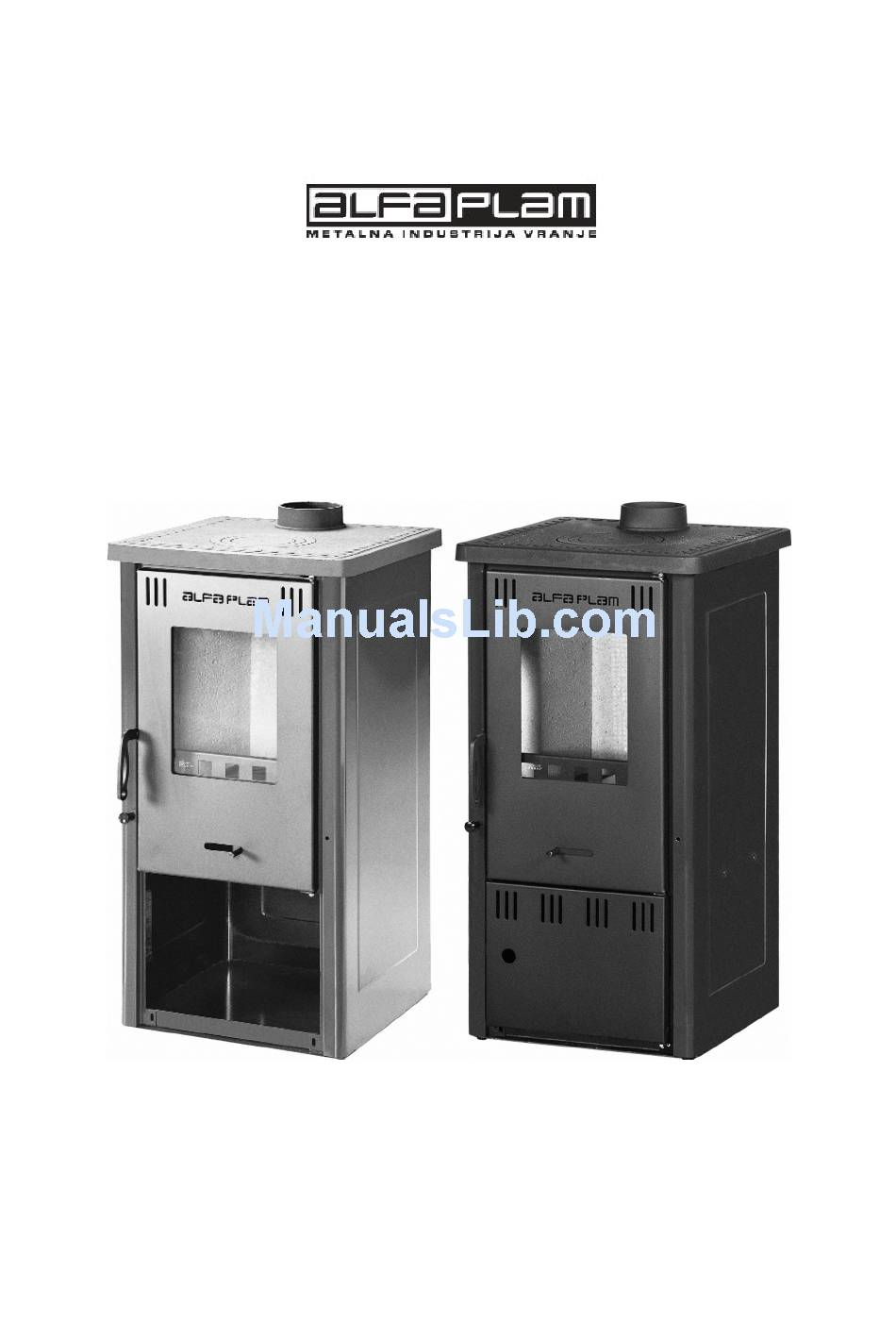

- Page 1 17500 VRANJE, SERBIA Radnicka 1, tel.: 017 421 121 SOLID FUEL STOVE ELITA and ELITA II INSTRUCTIONS FOR INSTALLATION AND USE...
- Page 2 GENERAL DATA Generally it is necessary to adhere to the construction rules and regulations about fireboxes applicable in the country, as well as all necessary local, national and European standards. Important before use: So that your stovecould function properly, it is important that you carefully read this manual and strictly adhere to the listed instructions herein.
- Page 3 Fig. 1 Solid fuel stove 1. Flue connection 2. Stove panel 3. Secondary air intake 4. Stove door 5. Grate shaker 6. Primary air regulator 1. Technical data - width ...…………………………………………………………………………………...455 mm - depth ...…………………………………………………………………………………...422 mm - height …………………………………………………………………………………….865 mm - rated heating power……………………………………………………………………….6,0 kW - diameter of flue pipe connection ..……………………………………………………..Ø120 mm - draft…………………………………………………………………………………………12 Pa...
- Page 4 2. Stove description The stove consists of sheet-metal parts with a cast iron grate, cast iron panel and sheet-metal door. The firebox is covered with replaceable panels of fire clay. The external coating is enameled or painted. The opening for adjusting air needed for combustion is located on the stove door. 3.
- Page 5 4. Stove installation When installing the stove adhere to the applicable regulations regarding construction and fire preventive requirements. The placement site should be horizontal and must have sufficient bearing capacity,otherwise appropriate measures must be implemented for even load distribution. In case of flammable floor (wood, plastic, textile…) it is necessary to put steel sheet, copper or other inflammable material under the stove.
- Page 6 5.1 Stove commissioning and stove operation Maximally open the primary air regulation (figure 2, position 7) Open the stove door Put wood wool, wood chips or paper Put two pieces of wood over this Ignite Close the stove door Let the wood burn away. After ember is created, put new fuel through the opening for stoking and adjust the air regulator for primary air according to the fuel type.
- Page 7 Do not use water or dump cloths for painted stoves. The period between stove cleanings depends on the fuel type, that is, on the duration and the type of stove usage. The ash box (figure 7, position 11) should be regularly emptied before every stove ignition.
- Page 8 The device will properly function within the guaranteed term only if it is used in accordance with these guidelines for connection and application. The guarantee cases to apply if it is determined that: -the connection or the repair of the product was performed by an unauthorized person, that is, if unoriginal parts have been embedded, - if the device has not been properly used in accordance with these guidelines, - if some mechanical damaging of the device occurred during usage,...
