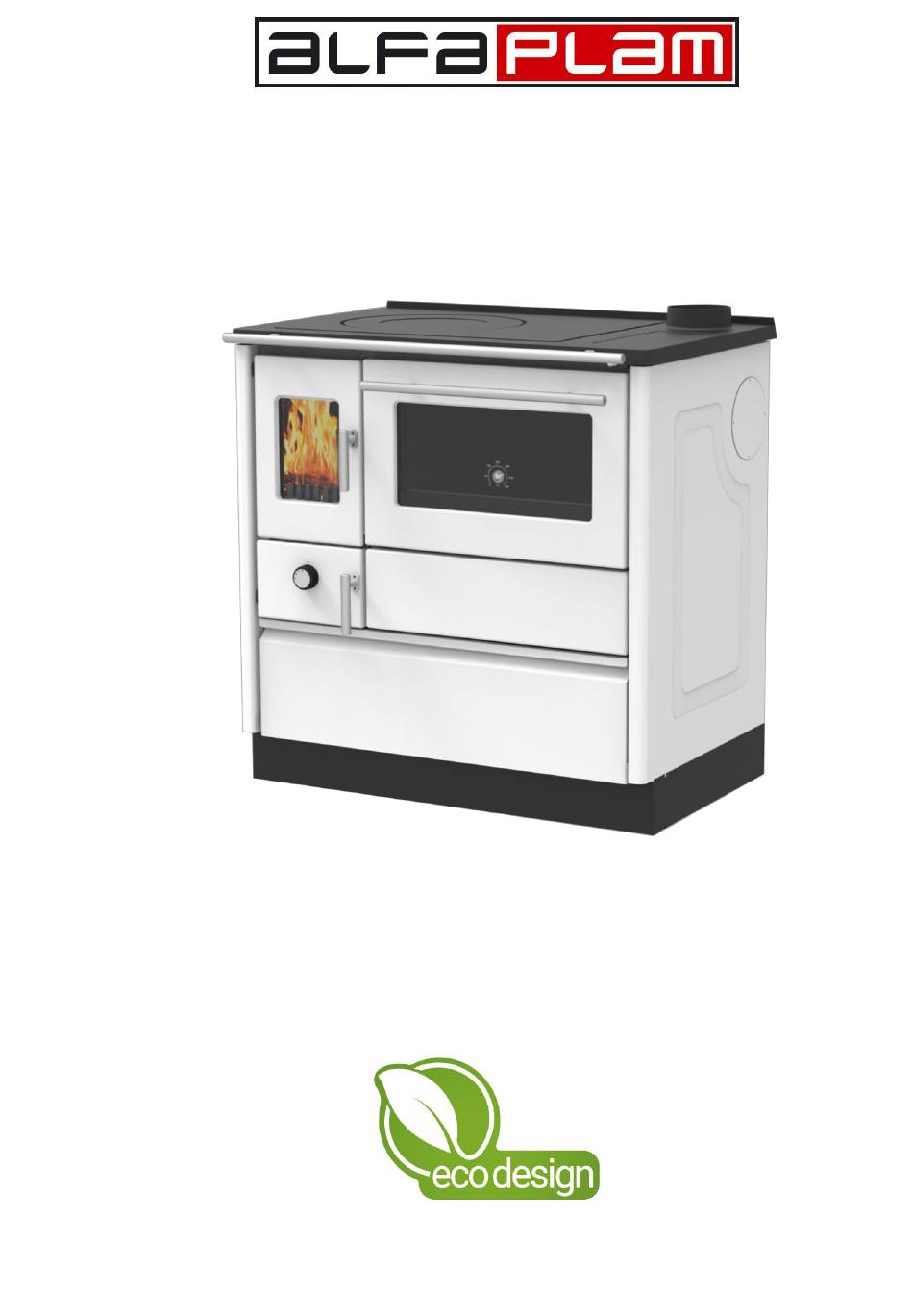

A.D. METALNA IDUSTRIJA VRANJE
Radnička br: 1
Solid fuel stove
ALFA 85 G
Instructions for installation and handling
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to
contribute to the reduction of energy consumption and negative environmental impact.
ENG_v.1.0
1611845
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfa Plam ALFA 85 G
Summary of Contents for Alfa Plam ALFA 85 G
- Page 1 A.D. METALNA IDUSTRIJA VRANJE Radnička br: 1 Solid fuel stove ALFA 85 G Instructions for installation and handling This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.
- Page 2 Figure 1 ALFA 85 G Solid Fuel Stove 1. Firebox door 2. Ashtray door 3. Air control 4. Fuel drawer 5. Lateral connection for the flue pipe 6. Double-glazed oven door 7. Protective cover of the opening for cleaning INSTRUCTIONS FOR INSTALLATION, USE AND HANDLING...
- Page 3 CAUTION - MAKE SURE TO USE FIREWOOD WITH A HUMIDITY PERCENTAGE OF LESS THAN 25% OR FIREWOOD THAT HAS BEEN STORED IN A DRY AND OPEN SPACE FOR TWO YEARS. - The minimum installed power of the heating system must not be less than 65% of the nominal power of the stove and the maximum installed power of the heating system must not be more than 100% of the nominal power of the stove.
-
Page 4: Table Of Contents
Content: TECHNICAL DATA ............................1 THE RESPONSIBILITY OF THE MANUFACTURER ................... 1 2.1. THE BASIC CHARACTERISTICS OF THE USER ..................1 2.1. THE TRANSPORTATION AND USE OF THE STOVE – HANDLING ............1 2.2. THE RESPONSIBILITY OF THE INSTALLER..................... 1 STOVE INSTALLATION .......................... -
Page 5: Technical Data
2. THE RESPONSIBILITY OF THE MANUFACTURER Upon publishing this Manual, ALFA PLAM will not accept any civil or legal responsibility, either direct on indirect, due to: − Accidents occurred due to the non-observance of the standards and specifications stated in this Manual, −... -
Page 6: Stove Installation
When the installation is completed, the system must be put into a trial operation for at least 30 minutes in order to check up all the packing and seals of the system. When the incorporation and significant details are completed, the installer is obliged to provide the client with the following: −... -
Page 7: Installation To The Flue
A) Supply of combustion air by means of a pipeline through the basement. This connection option leads to a preheating of the combustion air, which is useful for a good and clean combustion. The installation of pipelines in the basement is simple. - Page 8 AISI 316 steel chimney with double insulated chamber, Fireproof chimney with double insulated chamber and an made of material resistant to 400°C. Optimal efficiency outer lining of lightweight concrete. 100% Optimal efficiency 100% Traditional clay chimney with recesses. Optimal efficiency It is forbidden to use chimney pipes that have a rectangular internal cross-section with a ratio that differs from the plan.
-
Page 9: Handling
5. HANDLING 5.1. HANDLING OF THE FIREBOX DOOR HANDLE Figure 2 Open the firebox door by turning the handle clockwise for 90° and pull it toward yourself (see Image 2). The ashtray door can be opened only when the firebox door are opened. Turn the ashtray door handle clockwise for 90° and pull the door in order to take out the ashtray and dispose of the accumulated ash, clean the ashtray and place it back. -
Page 10: Warming Flap
5.3. WARMING FLAP Figure 4 Moving of the warming flap is made by activating the button (Fig. 4, item 9) located above the oven door. It is used for shortening the paths of flue gases during firing. The warming flap should be opened only in the phase of lighting the fire in the stove. During firing, the open warning flap leads to overheating of the stove and thus to damaging parts of the stove. -
Page 11: Cooking
Fuel Fuel quantity Combustion time Adjustment of the primary air Split firewood 2,41kg 1.0 h Degree 1 Pay attention to never putting more firewood or lignite briquettes than are required for the nominal capacity of heating. The above quantities of fuel should not be exceeded as this may cause the stove to overheat. Only naturally dried firewood or lignite briquettes may be used, in accordance with the regulation on protection from emission. -
Page 12: Opening For Cleaning
7.1. OPENING FOR CLEANING Figure. 5 There is a cover (Figure 5, item 10) behind the protective cover of the opening for cleaning. The cover is fixed with one butterfly screw on the front side of the stove and in order to clean the inside of the stove, it should be removed. Before screwing it again, the sealing braid that is on the cover should be controlled for sealing and, if necessary, it should be replaced.
