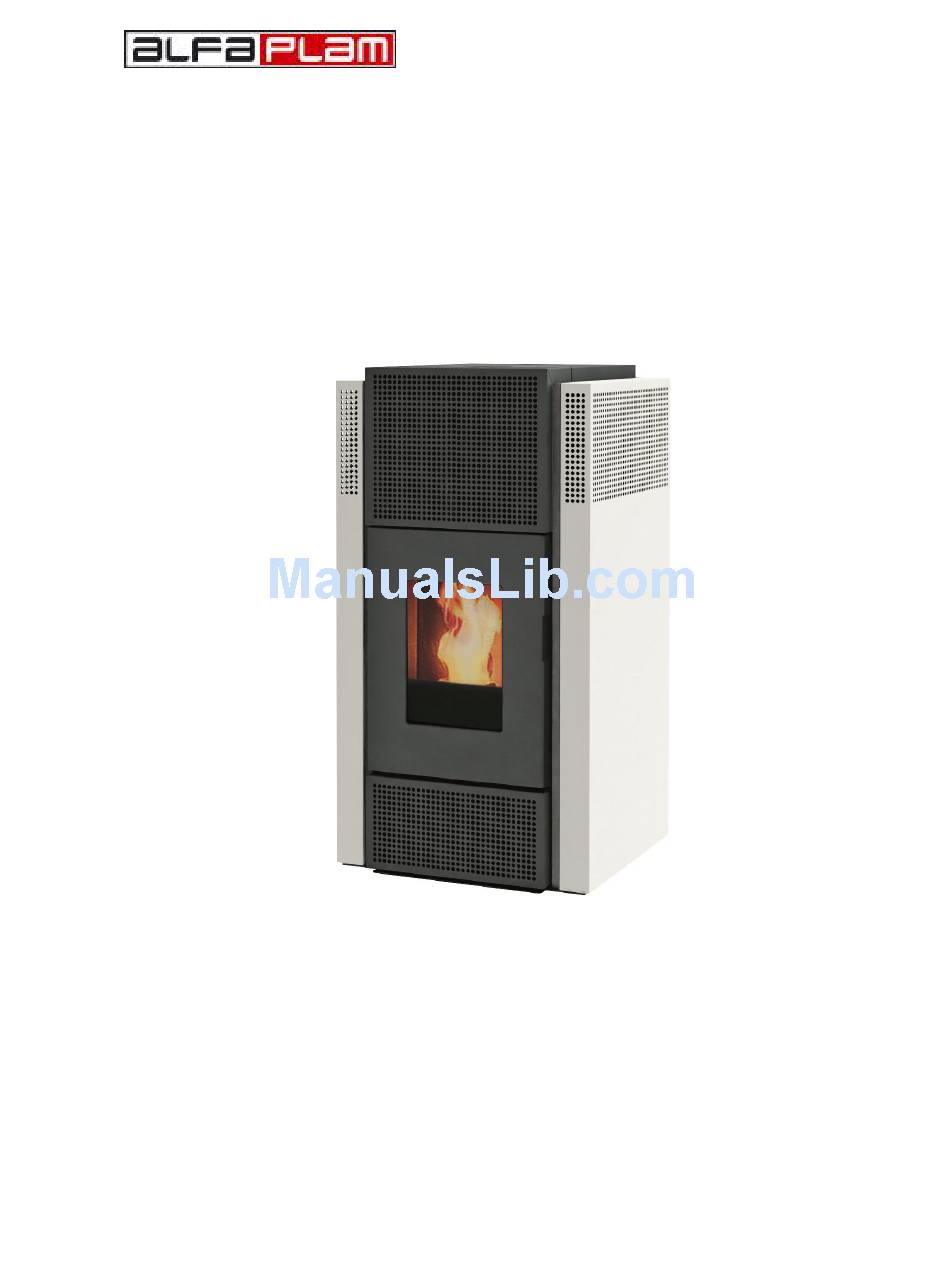

- Page 1 A.D. METAL INDUSTRY VRANJE 1 Radnička St. AMELIA PELET STOVE → Pellet fuel from timber biomass biofuels → INSTRUCTIONS FOR CONNECTING, OPERATION, AND MAINTENANCE OF THE STOVE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 0.0 Technical characteristics of the stove 1.0. The purpose of the instructions manual 1.1 Updating the instructions 2.0 Responsibilities of the manufacturer 2.1 Required characteristics of the user 2.2 Transporting and moving the stove 2.3 Responsibilities of the installer 3.0 Installing and connecting the stove 3.1 Setting up the stove 3.2 Opening and closing of the firebox door... -
Page 3: Technical Characteristics Of The Stove
The use of wood as fuel is therefore perfectly balanced with the environment, because the wood as a renewable fuel is in ecological harmony with nature. By using the principle of clean combustion we fully achieve these objectives, and so Alfa Plam has directed its development and all activities towards fulfilling this goal. -
Page 4: The Purpose Of The Instructions Manual
2.0 RESPONSIBILITIES OF THE MANUFACTURER Alfa Plam does not accept any responsibility for damage or injury caused by: - Disregard for advice and warnings given in this manual, - Improper handling of the stove by the user,... -
Page 5: Installing And Connecting The Stove
- Instructions for use and maintenance issued by the manufacturer of the stove (if such instructions are not supplied with the stove), - The documentation necessary to comply with the existing standards. 3.0 INSTALLING AND CONNECTING THE STOVE Responsibility for the work carried out at the place where the stove is connected is entirely on the user. Before one turns the stove on, the installer must meet all legal standards of safety, as well as the following requirements: - To check that setting up the stove complies with local, national, and European regulations,... -
Page 6: Opening And Closing Of The Firebox Door
from hot spots, and not to touch any sharp edges that could interdict it. If the stove is electrically overloaded, this can lead to shortening of the lifetime of the electronic parts of the stove. Never turn off the power supply by pulling the plug when there is a burning flame in the stove. This could jeopardize the proper functioning of the stove. - Page 7 3. By adjusting certain parameters in the stove. Such adjustments must be done only by an authorized service center of Alfa Plam. - Make sure that the connection to home chimney is properly sealed. - Avoid contact with material that burns easily (such as wooden beams), and in all cases they should be isolated with anti-fire material (see Figure 3).
-
Page 8: Insulation And Diameter Of The Hole In The Roof
check the cover (cap) for cleaning the exhaust gas system that is perfectly sealed, and that it remains so after each cleaning. Make sure to perform the same sequence for assembly, and check the condition of the seals. Install the flue pipes pursuant to Figure 8. It is strictly recommended to avoid horizontal extension when connecting to the chimney, and the pipes needs to have an incline of at least 5%. - Page 9 Ø100 Ø80 Figure 7 1. A hose fitting with a T shape - a T connector pipeline 2. Cleaning direction 3. Opening, a window for servicing/inspection 4. Cleaning direction 5. A hose fitting with a T shape - a T connector pipeline 6.
-
Page 10: Combustion Air Supply
The distance between the ridge and the Minimum height of the chimney measured at Roof slope: chimney cap the top slot (at the back of the chimney) α Distance in meters Height in meters less than 1,85 m 0,50 m above the ridge more od 1,85 m 1,00 m from the slope of the roof less than 1,50 m... -
Page 11: Important Instructions For The Installer
- If the smoke extraction system is metal, it must have an earthing terminal in accordance with the existing standards and legislation. Grounding is the law. - The electrical cable must not at any time reach a temperature that is 80 C above the ambient temperature. -
Page 12: Safety Guidelines For Ignition And Cleaning The Stove
- Always use original spare parts. Never wait until the components wear out before you replace them. Replacing the worn parts, or the components of the stove before they stop working, contributes to the prevention of damage due to sudden failure, which can lead to serious consequences for people and/or property. - Clean the firebox before lighting the stove. -
Page 13: Cleaning And Maintenance Done By The User Of The Stove
Figure 12 Figure 13 Figure 14 6.1 CLEANING AND MAINTENANCE DONE BY THE USER OF THE STOVE Use the drum shaped vacuum cleaner that can facilitate cleaning the stove. The vacuum cleaner must have a filter that will prevent the sucked dust from going back into the room where the stove is located. Before you get started with routine maintenance, including cleaning, take the following precautions: - Turn off the stove from the power supply, - Make sure the stove and the ashes are cool,... - Page 14 Note: When cleaning, remove the top metal sheet deflector (Figure 12 D), so that it is easier to remove the cast iron plate (Figure 13 A). This type of cleaning can be done by removing the cast iron plate as well (Figure 13 B) from the chamber, to clean the parts shown in Figure 14.
-
Page 15: Cleaning And Maintenance (For Employees Who Do Maintenance)
6.2 CLEANING AND MAINTENANCE (for employees who do maintenance) Flue and chimney should be cleaned every six months or after burning two tons of pellets. Make sure the stove and the ash are cool. Flues and chimney must be resistant to the wind and have to be checked and cleaned at the start of the heating season. -
Page 16: Important Safety Information
-tin lid Figure 17 Remove the tin lid and using a vacuum cleaner clean the inner part. 7.0 IMPORTANT SAFETY INFORMATION You have purchased a product of the highest quality. Properly connecting the stove, according to these instructions, is very important to prevent the danger of fire and any defects or poor performance of the stove. -
Page 17: Description And The Operations Method Of The Control System
9.0 DESCRIPTION AND THE OPERATIONAL METHOD OF THE CONTROL SYSTEM 9.1 DESCRIPTION OF THE PUSH BUTTON DISPLAY Button to adjust + Upper pointer Button to adjust MENU button Push button ON/OFF Lower pointer Pointers Function Upper pointer shows the status of the stove, the selected menu, the operation doze indicator, and the operation of the time-control indicator program. - Page 18 The display when the stove is running in the combustion stage: Upper pointer: Upper pointer alternately displays: BURN, and then P5D5, with actual current running force, and adjusted running force. Lower pointer: Lower pointer alternately displays: The temperature of the flue gases: Room temperature: The display when the stove is OFF: Upper pointer:...
-
Page 19: When The Stove Is On
Pressing for more than 4 seconds will activate the advanced settings of the menu. By continuing to press this button we will see all menu options one after the other. For the choice of the parameter in the submenu we use the + and - buttons. By pressing the MENU button again we activate the flashing of the set parameter values, which can be adjusted by pressing the + and -. -
Page 20: Setting Up The Time-Controlled Program
9.5 SETTING UP THE TIME-CONTROLLED PROGRAM Long pressing (until TIMER is shown) on the MENU button opens a menu time-controlled program. Select ON or OFF to include or exclude the time-controlled program. It is necessary to set up the exact time and day of the week (1 is Monday ... - Page 21 The stove checks whether there is adequate combustion and flame in the TEST combustion chamber. This process is activated after the power supply FIRE interruption. In the ignition stage, after the screw conveyor fills the firebox, the lighter heats up He a t the pellets to ignition.
- Page 22 The safety thermostat reacted. Check the status of the stove, and if you do not AL AR see any obstacles, turn the stove back on. Otherwise, contact the service center. PRES No signal from the transducer flue gases. Contact the service center. AL AR No signal from the temperature firebox.
-
Page 23: Alarming Situations
9.7 ALARMING SITUATIONS... -
Page 28: Electrical Scheme
9.8 ELECTRICAL SCHEME... -
Page 29: Information Regarding The Dismantling And Disposal Of The Stove
10.0 INFORMATION REGARDING THE DISMANTLING AND DISPOSAL OF THE STOVE Dismantling and disposing of the old stove which you no longer use is the sole responsibility of the owner of the stove. The owner of the stove must comply with the applicable regulations in his/her country regarding the safety and protection of the environment.
