A.D. METALNA IDUSTRIJA VRANJE Radnička br: 1 Solid fuel stove ALFA 70C, ALFA 70T, ALFA 70F ALFA 90HC, ALFA 90HT, ALFA 90HF Instructions for installation and handling ENG_V.1.0...
Page 2

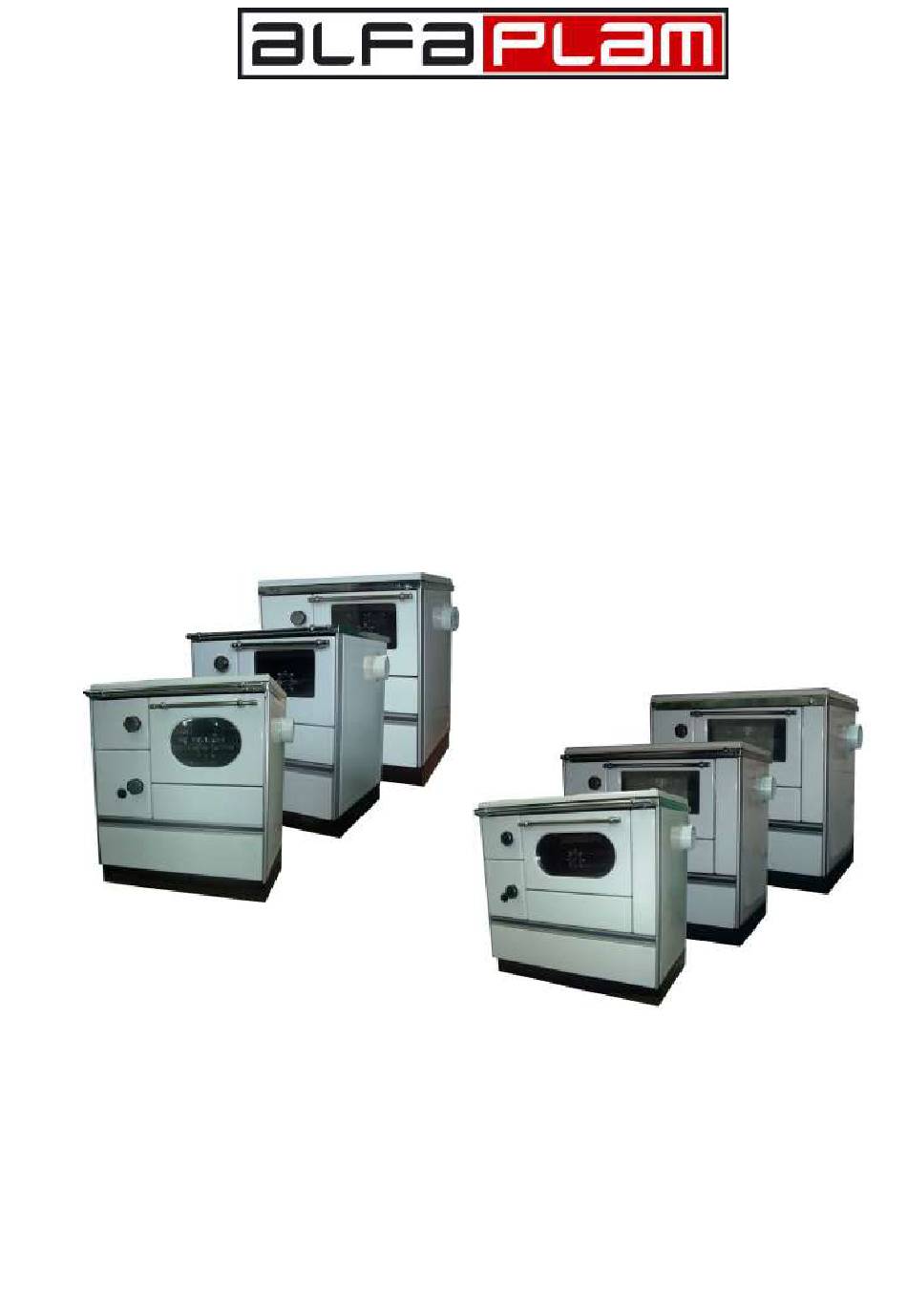

Figure 1 ALFA 70 and ALFA 90H Solid Fuel Stove 1. Firebox door 2. Ashtray door 3. Air control 4. Fuel drawer 5. Lateral connection for the flue pipe 6. Double-glazed oven door 7. Protective cover of the opening for cleaning...
Page 3
INSTRUCTIONS FOR INSTALLATION, USE AND HANDLING These instructions for installation, use and handling are applicable to the following type of stoves: ALFA 70C, ALFA 70T, ALFA 70F ALFA 90HC, ALFA 90HT, ALFA 90HF When using the stove you must observe both national and European standards and regulations.
Content: TECHNICAL DATA ............................ 1 STOVE INSTALLATION ..........................1 HANDLING ............................... 1 3.1. HANDLING OF THE FIREBOX DOOR HANDLE ..................1 3.2. AIR CONTROL ........................... 2 3.2.1. PRIMARY AIR ........................2 3.2.2. SECONDARY AIR ........................2 3.3. WARMING FLAP ..........................2 3.4.
1. TECHNICAL DATA UNIT АLFA 70 АLFA90 Nominal heating capacity ( kW ) Mass of the flow of waste gases (g/s) 8,3 for split firewood 8,7 for split firewood 12,9 for lignite briquettes 18,7 for lignite briquettes Temperature of of waste gases ( º C ) 226 for split firewood 185 for split firewood 171 for lignite briquettes...
In case of overheating of the firebox door handle, opening and closing of the firebox door is possible with a special key, found in existing accessories (Fig. 2, item 8). 3.2. AIR CONTROL Fig. 3 3.2.1. PRIMARY AIR The primary combustion air and thus the heating capacity of the stove is determined by the primary air for combustion. This air is controlled by the primary air control on the ashtray door (Fig.
Oven door open: higher heat emission for heating the room. Oven door closed: lower heat emission for heating the room. The oven door can be removed without using tools: take the door handle and pull upwards the door that is slightly open. Reinstallation is made by introducing both hinges into the corresponding openings, at the front of the oven, while placing pressure on the lower edge of the door with a knee and light pulling of the handle up.
To move the grid from the lower to the upper position, the grid is pushed backwards and lifted. In the inclined position, remove the lever of the shaker and then remove the grid through the space for loading. Afterwards, the carrier of the grid is lifted and pulled out. The mounting parts of the grid can then be placed in the upper position in the reverse order.
screwing it again, the sealing braid that is on the cover should be controlled for sealing and, if necessary, it should be replaced. 5.2. MAINTENANCE AND CLE ANING OF THE COOKING PLATE For cleaning of the cooking plate, use small sandpaper or abrasive. And during cleaning of the plate, wipe it with a semi- wet towel and in the end with a dry towel.
