Labomed AXIUS User Manual page 15

Installation
(continued)
CAUTION
Deviation from vertical
Damage and injury

Do not exceed a maximum deviation from the vertical - 1 mm per 1 m of height.


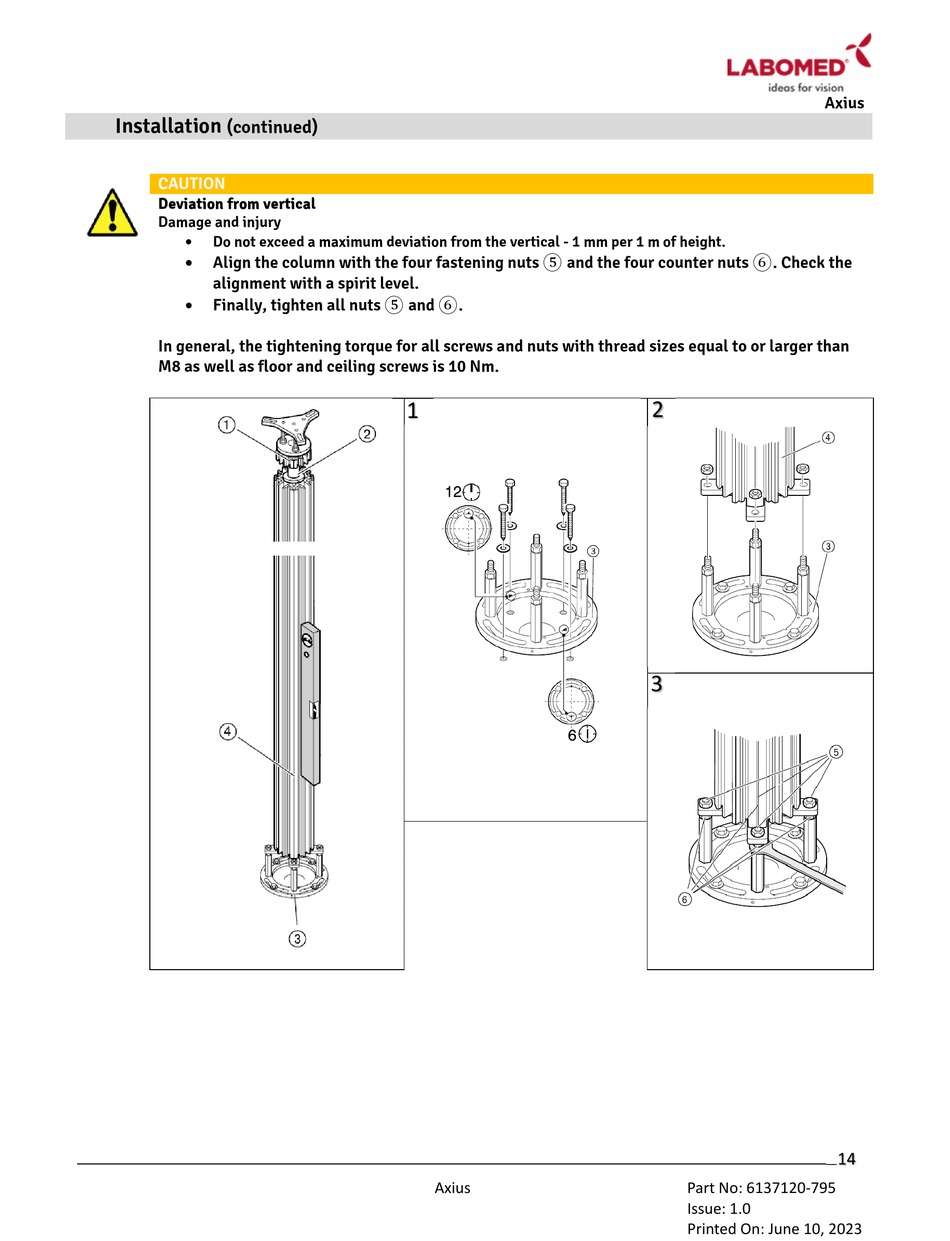

Align the column with the four fastening nuts ⑤ and the four counter nuts ⑥. Check the
alignment with a spirit level.

Finally, tighten all nuts ⑤ and ⑥.
In general, the tightening torque for all screws and nuts with thread sizes equal to or larger than
M8 as well as floor and ceiling screws is 10 Nm.
1
Axius
Axius
2
3
Part No: 6137120-795
Issue: 1.0
Printed On: June 10, 2023
