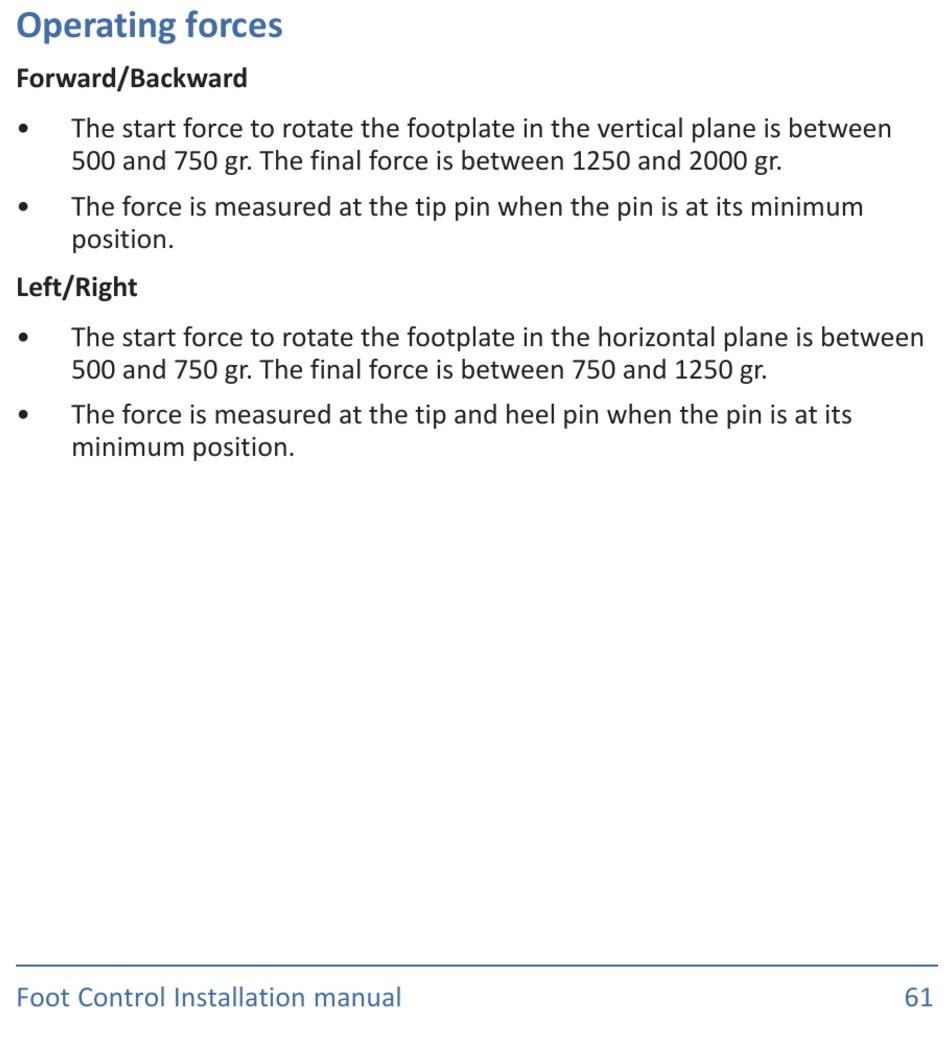

Operating forces

Forward/Backward
• The start force to rotate the footplate in the vertical plane is between
500 and 750 gr. The final force is between 1250 and 2000 gr.
• The force is measured at the tip pin when the pin is at its minimum
position.
Left/Right
• The start force to rotate the footplate in the horizontal plane is between
500 and 750 gr. The final force is between 750 and 1250 gr.
• The force is measured at the tip and heel pin when the pin is at its
minimum position.
