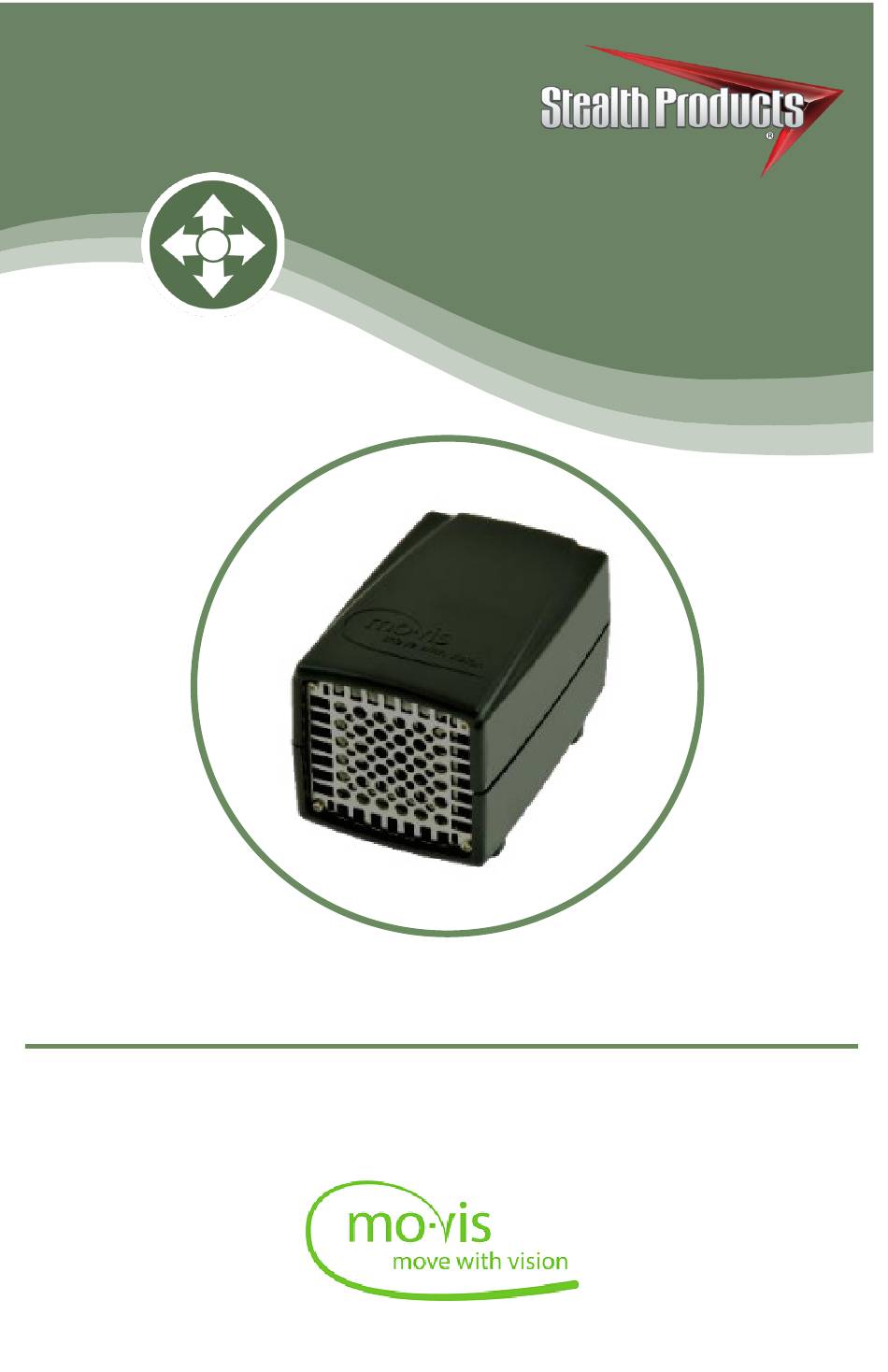

- Page 1 Alternative Drive Controls OWNERS MANUAL Hand Warmer Stealth’s mo-Vis Series Adjustable Heating Device...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC 104 John Kelly Drive, Burnet, TX 78611 Phone: (512) 715-9995 Toll Free: 1(800) 965-9229... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used succesfully, you must: •...
-
Page 4: Introduction
Ordering Documentation You can download additional copies of this user manual on the Stealth website: www.stealthproducts.com Or search: mo-Vis Hand Warmer Owner’s Manual in the search bar at the top of the page. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................. i 2.0 Important Information ................ii 3.0 Introduction ....................iii 4.0 Warranty ..................... iv 5.0 Table of Contents ..................v 6.0 Warning Labels ..................viii 6.1 Warning Labels ......................viii 6.2 Limited Liability .......................viii 6.3 Testing .........................viii 7.0 Safety Precautions .................. - Page 7 Table of Contents 12.0 Functioning ....................6 12.1 Operation and Level Selection ................6 12.2 Parameter Configuration ...................6 12.3 Automatic Error Detection ................6 13.0 Configuration Software ................7 13.1 Software Capabilities ...................7 13.2 Software Download .....................7 14.0 Testing ...................... 12 14.1 Check that the Hand Warmer ............... 12 14.2 Operational Test ....................
- Page 8 Table of Contents 21.0 Technical Data ..................20 21.1 Product Description and Code ............... 20 21.2 Dimensions ......................20 21.3 Voltage Supply ...................... 20 21.4 Current Supply ...................... 21 21.5 Power Consumption ................... 21 21.6 Cable Length ......................21 21.7 XLR Connector ...................... 21 21.8 Weight ........................
-
Page 9: Warning Labels
Warning Labels Warning Labels Warnings are included for the safety of the user, client, operator and property. Please read and understand what the signal words SAFETY, NOTICE, CAUTION, WARNING and DANGER mean, how they could affect the user, those around the user, and property. -
Page 10: Safety Precautions
Safety Precautions • The Hand Warmer is intended to be fitted on any power wheelchair with 24V connection. • Incorrect use or installation may lead to risk of injury to the user and damage to the wheelchair or other property. •... -
Page 11: Design And Function
Design and Function Intended Use The mo-Vis hand warmer improves flexibility of cold body parts. The hand warmers main functionality is to keep the area around a wheelchairs input device warm. This increases the comfort of the user and their ability to control the input device . -
Page 12: Parts And Accessories
Parts and Accessories Hand Warmer Set The Hand Warmer Set consists of the following parts: Product Description Product Code Hand Warmer Set IDM-HW Hand Warmer Unit Hand Warmer Extenstion Lead 180cm Hand Warmer Mounting Set: • Quick-to-Mount Half Clamp 6mm in Diame- ter, 14mm long •... -
Page 13: Hand Warmer Accessory
Parts and Accessories Hand Warmer Accessory Product Description Product Code 2-Hands Dome IDM-DOME To enclose the area around the hands, and to better maintain the air temperature, a dome-shaped hood is available as an option. • This dome reduces heat loss, resulting in a decreased power consumption, without compromising comfort. -
Page 14: Installation Instructions
Installation Instructions 10.0 Preparations 10.1 Only a qualified service technician may install the Hand Warmer. WARNING An incorrect programming of the Hand Warmer or chair electronics may cause damage to the devices or injury to the user. Tools 10.2 Use the proper tools to install and adjust the Hand Warmer set to the chair. CAUTION Use the proper tools to install and adjust the Hand Warmer. -
Page 15: Hand Warmer Installation
Hand Warmer Installation 11.0 Installation 11.1 Define the place and position of the Hand Warmer on the wheelchair. The Hand Warmer can be mounted on any location of the chair. Secure the Quick-to-Mount half clamp and bolt on the bottom of the Hand Warmer housing. -
Page 16: Functioning
The functionality of the button is to cycle through the levels (powers settings) of the device. You can adjust the number of levels using the mo-Vis Configurator Software to alter the parameters. The green LED at the front of the hand warmer interface indicates the status of... -
Page 17: Configuration Software
Connect the Hand Warmer to the PC using a mini USB cable. Open the mo-Vis Configurator Software. You computer will choose a COM port and recognize the product that is linked to the PC, but will still show the status “Disconnected”. - Page 18 Once the connection is made, the software will receive all the details and information out of the mo-Vis device and will display them on the right hand side of the window. The software program always starts at the lowest Access Level. In order to receive more information or see and change more parameters, you can upgrade your Access Level from User to Attendant or Dealer.
- Page 19 Configuration Software 13.0 When Parameters is selected, a list of parameters will be shown. • By selecting the specific parameter you wish to adjust, the view on the right will display the stored Default, Minimum and Maximum values of the specific parameter. •...
- Page 20 Configuration Software 13.0 Attention: When a parameter is changed without clicking the Apply button, the new values are not remembered. Once another parameter setting is selected, the previous parameter will go back to the original setting. Clicking on the Reset button will set the parameter value back to the default value. Click Apply to store locally and Save to make the change to the device.
- Page 21 Configuration Software 13.0 11. To change the language of the Configurator Software, click File-View on the menu bar and select the language you prefer. 12. Save the device summary. You can save all general product information and values of the different parameters in any folder on your computer.
-
Page 22: Testing
Testing 14.0 After the installation of the Hand Warmer, execute the following tests before the wheelchair is delivered or put into service, in this order: • Check the Hand Warmer for intactness • Operational Test • Test Drive Check that the Hand Warmer 14.1 •... -
Page 23: Adjustments
15.1 As a user or attendant, you can make a limited number of parameter adjustments with the mo-Vis Configurator Software. Although the number of parameters you can change as a user or attendant is limited, we advise changing only parameters you are familiar with. -
Page 24: Troubleshooting
Troubleshooting 16.0 When a fault occurs the LED will start to flash. There is a long delay and then a number of flashes with a short delay. Count the number of flashes and look up the according code in the table below. Flash Count Reason Required Action... -
Page 25: Error Codes
15.1 As a user or attendant, you can make a limited number of parameter adjustments with the mo-Vis Configurator Software. Although the number of parameters you can change as a user or attendant is limited, we advise changing only parameters you are familiar with. - Page 26 Error Codes 17.0 Fault Reason Required Action -Factory test failed. A fault occured during factory PCB Test Failed testing. CPU Error FLASH -Field test failed A fault occurred during field Field Test Failed (Calibration). testing (Calibration). -Corrupt command was Connection with the PC Test Flag Check received.
-
Page 27: Settings
Settings 18.0 Parameter Settings 18.1 With the mo-Vis Configurator Software you can change the parameters of the Hand Warmer. Depending on your user profile (User, Attendant, Dealer, OEM), you will be able to change a number of parameters. Parameter Description... -
Page 28: First Time Use
First Time Use 19.0 Dealer Assitance 19.1 During first time use by the client, it is advised that the dealer or service technician assists and explains the different drive configurations to the customer (the user and/or the attendant). If needed, the dealer can make final adjustments. User Testing 19.2 It is important that the customer is fully aware of the installation, how to use it,... -
Page 29: Maintenance
Maintenance 20.0 Cleaning 20.1 Clean all parts of the Hand Warmer and the optional 2-Hands Dome on a regular basis, or when needed. • Gently remove dust and dirt with a damp cloth. • Use only non-aggressive disinfectant cleaning agents. WARNING Do not immerse the Hand Warmer in water or use excessive amounts of liquid near the Hand Warmer. -
Page 30: Technical Data
Technical Data 21.0 Product Description and Code 21.1 • Hand Warmer Set (IDM-HW) • Hand Warmer Dome (IDM-DOME) Dimensions 21.2 Hand Warmer Dimensions • 50mm x 29mm x 29mm (H x W x D) 1.97in x 1.41in x 1.41in (H x W x D) Hand Warmer Dome Dimensions •... -
Page 31: Current Supply
Technical Data 21.0 Current Supply 21.4 • At full power: 2.0A Power Consumption 21.5 • Idle Mode: 20mA • Sleep Mode: 1.7mA Cable Length 21.6 • Pigtail: 150mm (5.9in) (.49ft) • Extension Lead: 1800mm (70.86in) (5.9ft) XLR Connector 21.7 • Pin 1: V+ (internally fused 5 A) •... -
Page 32: Emc Requirements
Technical Data 21.0 EMC Requirements 20.1.0 The electronics of a power wheelchair and its options can be affected by external electromagnetic fields (ex. Mobile phones). Similarly, the electronics of the wheelchair or options themselves can also emit electromagnetic fields that can affect the immediate surroundings. -
Page 33: Notes
Notes 22.0... - Page 34 Notes 22.0...
- Page 35 Notes 22.0...
- Page 36 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 Revision Date 2018-08-24 P120D529 mo-Vs Hand Warmers Owners Manual...
