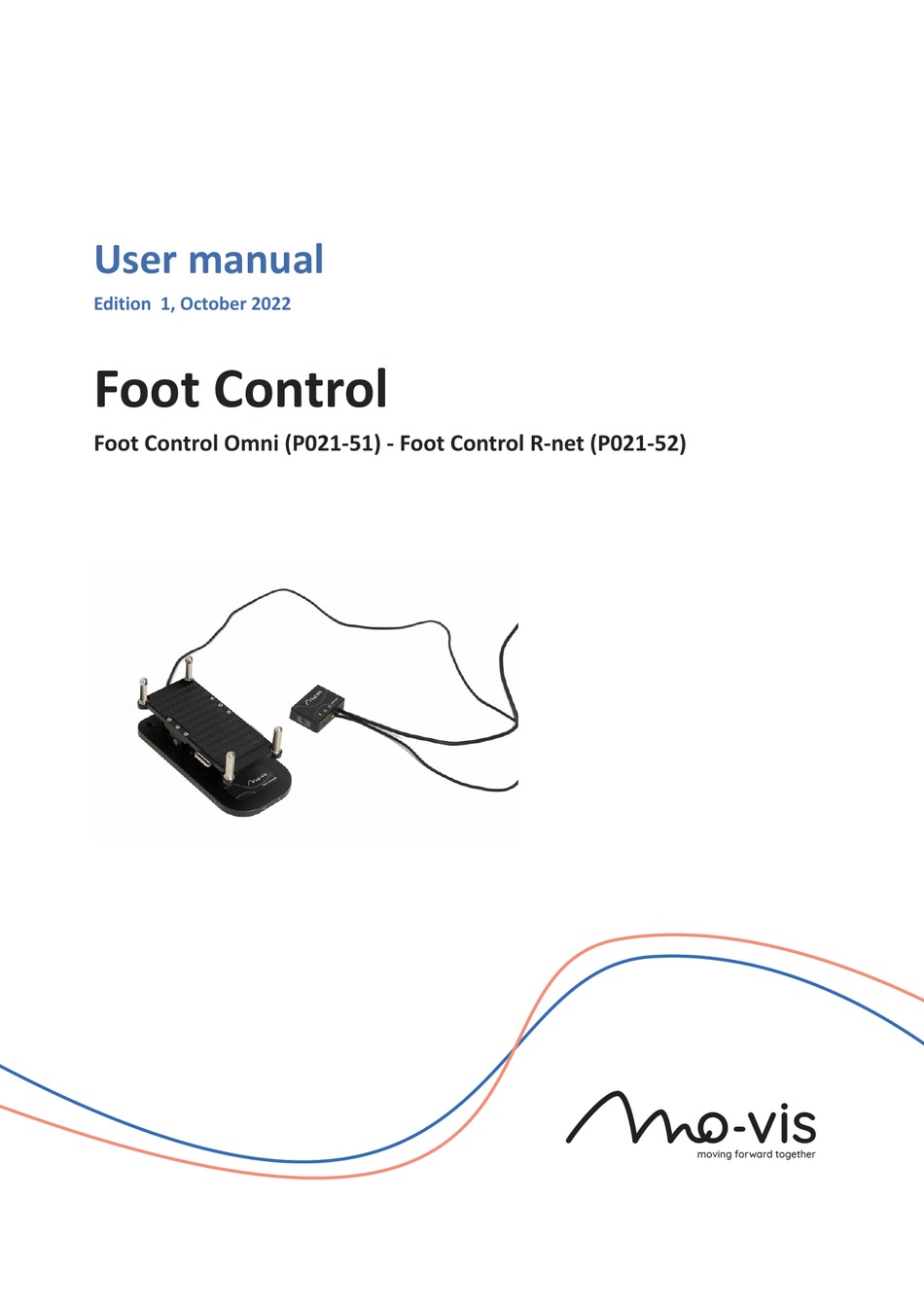

- Page 1 User manual Edition 1, October 2022 Foot Control Foot Control Omni (P021-51) - Foot Control R-net (P021-52) moving forward together...
-
Page 2: Other Languages
Other languages CS: Tito příručku naleznete v češtině na našich webových stránkách. DA: Du kan finde denne manual på dansk på vores websted. DE: Auf unserer Website finden Sie diese Anleitung in Deutsch. EN: You can find this manual in English on our website. ES: Este manual está... -
Page 3: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. -
Page 4: Warning Labels
User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 5 Always state the product code and device serial number when contacting us. This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling CAUTION: For scrapping, adhere to your local waste legislation.
-
Page 6: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer. -
Page 7: Operation
• is fully adjustable to individual possibilities and needs with well-thought-out electronics (USB-C connection). • is compatible with multiple types of wheelchair electronics. • has a LED light on the interface which will start to flash green in case of an error or orange in case of active tilt (see Installation manual) . -
Page 8: Parts And Accessories
Avoid hitting obstacles during driving. WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick. - Page 9 • A Foot Control Sensor (P021-41) which includes: Foot Control Pedal 2x Foot Control Set Pin Short 2x Foot Control Set Pin Long Foot Control Strap Mounting Plate • A Foot Control Strap (M021-80) Foot Control User manual...
- Page 10 Foot Control itself, in the dedicated mounting slots (see Installation manual). The Foot Control Set Pin Short is designed in such a way that a strap can be added. This is not available through mo-vis. Qualifications CAUTION: Only a qualified service engineer may install the device.
-
Page 11: First Time Use
CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user. First time use CAUTION: A qualified service engineer should assist during first time use of the device and make sure that all functions are clear to the user, including what to do in case of problems or doubt. - Page 12 WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency. WARNING: Always power off the device when the user is no longer in the wheelchair to avoid unauthorized access or accidental movements.
- Page 13 Foot Control User manual...
- Page 14 moving forward together mo-vis bv . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
