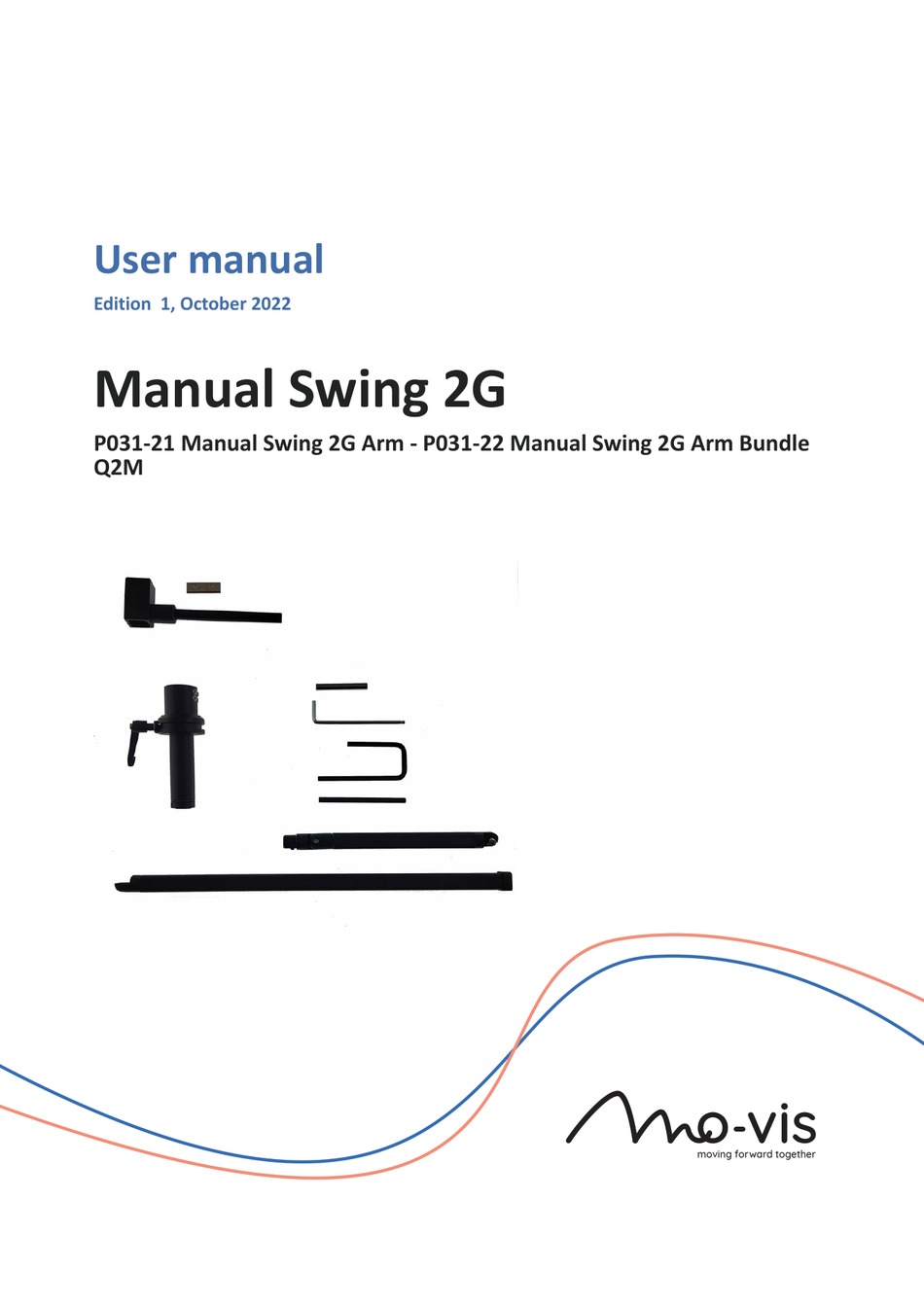

- Page 1 User manual Edition 1, October 2022 Manual Swing 2G P031-21 Manual Swing 2G Arm - P031-22 Manual Swing 2G Arm Bundle moving forward together...
-
Page 2: Other Languages
NL: De Nederlandse handleiding kunt u op onze website vinden. PT: Pode encontrar este manual em português na nossa página web. SL: Slovenski priročnik je na voljo na naši spletni strani. SV: Du hittar den här handboken på svenska på vår webbplats. Manual Swing 2G User manual... -
Page 3: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. -
Page 4: Warning Labels
Consult instructions for use or consult elec- tronic instructions for use: indicates the need for the user to consult the instruc- tions for use. Manual Swing 2G User manual... - Page 5 Always state the product code and device serial number when contacting us. This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling CAUTION: For scrapping, adhere to your local waste legislation.
-
Page 6: Limited Liability
Intended use The Manual Swing 2G is a versatile arm to mount on a powered wheelchair. With this arm, devices such as a chin joystick can be positioned to drive, and the arm can be moved upwards or sideways manually, whenever needed. -
Page 7: Operation
Operation Figure 1: P031-21 Manual Swing 2G The Manual Swing 2G consists of the arm and an optional mounting set: • The arm with all its accessories can be positioned in an ideal place for the user. • An optional mounting set is available to facilitate mounting on the backside of the wheelchair. -
Page 8: Parts And Accessories
• D-P031-21-70-M1 Manual Swing 2G Installation manual P031-22 Manual Swing 2G Arm Bundle Q2M In the P031-22 Manual Swing 2G Bundle Q2M, the M004-17 Q2M Manual Swing Mounting Set is included. Accessories There are several accessories available to facilitate mounting of the mo-vis joysticks on the Multi Swing 2G. - Page 9 Arm (section) 18 x 18 mm 0.71 x 0.71 in Extrusion 400 mm + adapter 420 mm 16.54 in M031-67 Extrusion 150 mm + adapter 200 mm 7.87 in M031-68 C-rod 120 mm 4.72 in Manual Swing 2G User manual...
- Page 10 moving forward together mo-vis bv . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
