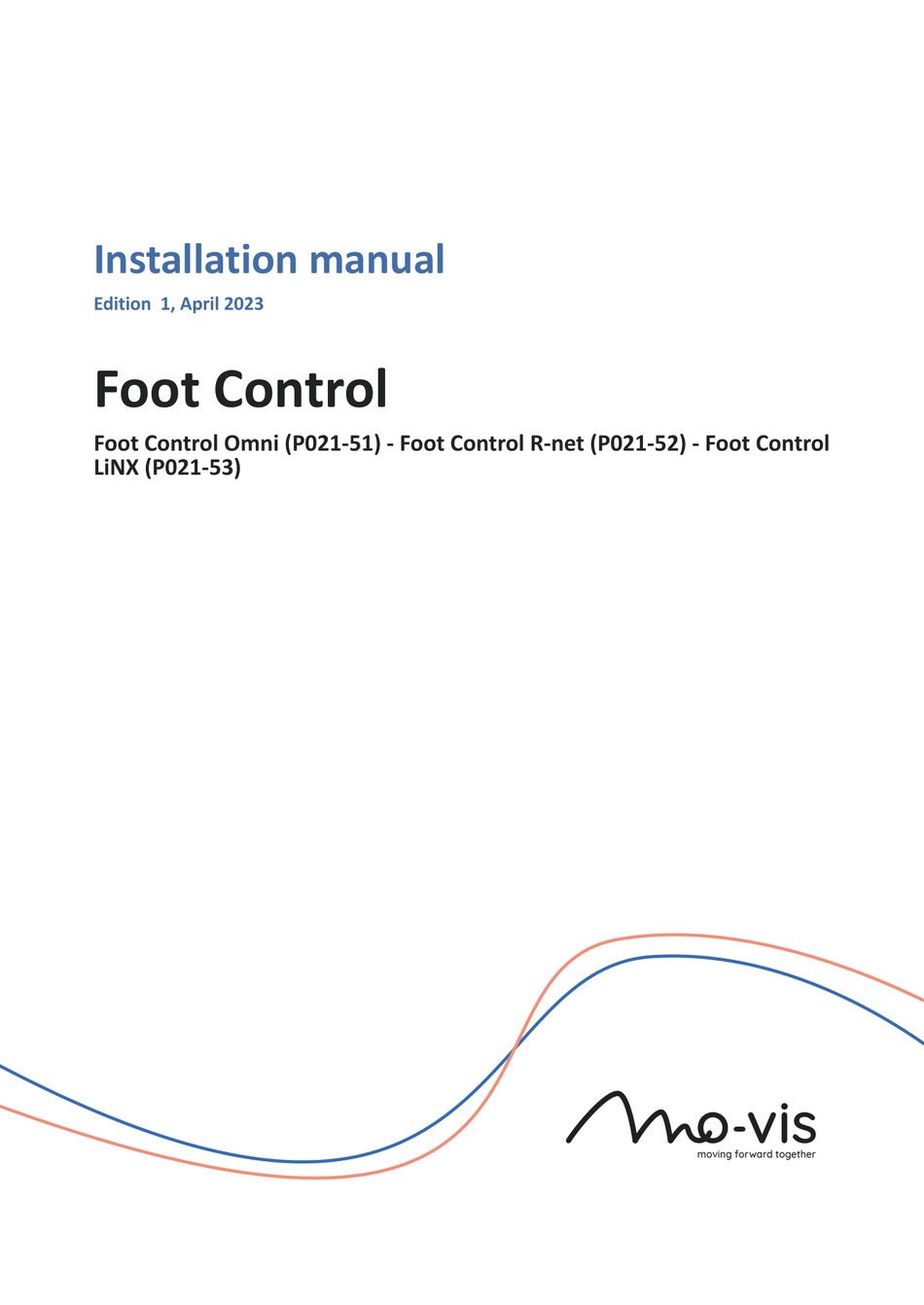

- Page 1 Installation manual Edition 1, April 2023 Foot Control Foot Control Omni (P021-51) - Foot Control R-net (P021-52) - Foot Control LiNX (P021-53) moving forward together...
-
Page 2: Table Of Contents
Contents About this manual ....................3 Installation manual ..................3 mo-vis bv ......................3 Important information ..................... 4 Warranty ......................... 5 Repair and replacement .................. 5 Amendments ....................5 Disclaimer and limitations of remedies ............5 Voiding of warranties ..................5 Technical support ..................... - Page 3 Test drive ....................... 25 Stop test ......................25 First time use ......................26 Maintenance ......................27 Monthly inspection ..................27 Yearly inspection ................... 27 Error codes ......................28 Omni Joystick Connection ..................30 Purpose ......................30 Connectivity ....................30 Features ......................30 Other information ..................
-
Page 4: About This Manual
This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team will be happy to answer your questions. mo-vis bv Biebuyckstraat 15D . 9850 Deinze . Belgium http://www.mo-vis.com contact@mo-vis.com... -
Page 5: Important Information
Important information CAUTION: Incorrect use or installation may lead to risk of injury to the user and damage to the wheelchair or other property. In order to reduce these risks, you should carefully read this manual, paying particular attention to the safety instructions and warning texts. -
Page 6: Warranty
2 years under proper use, care and service. The dealer should never keep mo-vis products in stock for a period more than 6 months prior to delivery to the end-user. mo-vis' warranty will never exceed a period of 2 years and 6 months after shipment. -
Page 7: Technical Support
Technical support TROUBLE: In case of technical problems: Contact mo-vis at contact@mo-vis.com or +32 9 335 28 60. Always state the device serial number when contacting us. This ensures you are provided with the correct information. Foot Control Installation manual... -
Page 8: Warning Labels
Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 9 Do not use if package is damaged and con- sult instructions for use: indicates that a medical device should not be used if the package has been damaged or opened and that the user should consult the instruc- tions for use for additional information. CE label: indicates that the manufacturer or importer affirms the good's conformity with European health, safety, and environ-...
-
Page 10: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: Carry out only the service and maintenance activities specified in this manual, as long as you comply with the demands stated in this manual for a specific action. -
Page 11: Preparations
Preparations CAUTION: Before you start with the installation: • Please check the packaging and verify that all items are included. • Make sure that you have all the necessary documentation and knowledge to install this device. • Check the condition of the device. Qualified service engineer Only a qualified service engineer may install the device. -
Page 12: Parts And Accessories
Parts and accessories The Foot Control package consists of: • A Foot Control Sensor (P021-41) which includes: Foot Control Pedal 2x Foot Control Set Pin Short 2x Foot Control Set Pin Long Foot Control Installation manual... -
Page 13: Spare Parts
Foot Control Strap Mounting Plate • A Foot Control Strap (M021-80) • A Joystick Interface (Omni or R-net, see Installation manual for more information). Spare parts The following items are available as spare parts: • P021-41 Foot Control Sensor • M021-80 Foot Control Strap Optional parts ... -
Page 14: Installation
Installation Place the foot on the Foot Control and decide where you want to position the 4 pins. Use an Allen key to fixate the pins at the desired position. We also advise you to use the strap, so consider mounting the Foot Control Strap Mounting Plate as well. NOTE: The pivot point of the Foot Control is located more towards the ankle for ergonomic reasons. - Page 15 CAUTION: This is Class I Medical Device (MDR 2017/745). All accessories, including switches, must also comply with the MDR 2017/745 regulations (e.g. the mo-vis Twister, tested according to EN12184 standards). Connect the cabling to the wheelchair electronics. CAUTION: All wheelchair electronics must be switched off during installation.
-
Page 16: Operation
Avoid hitting obstacles during driving. WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick. -
Page 17: Sensor Led
When this LED is green, the Foot Control is operational. When the LED is off, the Foot Control isn't powered. When this LED flashes red, it indicates additional faults, to these in Error codes on page 28 . Count the flashes and contact mo-vis for more information: contact@mo-vis.com. -
Page 18: Configuration
Parameter settings Compensation settings Road Compensation is a unique feature in the mo-vis joysticks. When you are driving on an uneven road with a special control mounted in a tray, or on an arm (or any other place where tremblements may be amplified), it can be very difficult to maintain control over the electric wheelchair and sometimes even unsafe. - Page 19 There is an accelerometer inside the joysticks and when it vibrates, it sends a signal to the wheelchair to slow down to a predefined parameter. SETTING DESCRIPTION PARAMETERS Compensation Lowers forward/backward (Y) dri- Very weak Almost no slow factor ving speed on rough terrain. down Wheelchair type and weight have Weak...
- Page 20 SETTING DESCRIPTION PARAMETERS (De)activation Active if compensation mode is Min. pattern set to 'Manual'. Default To activate/deactivate: nudge the joystick Forward + Backward + Max. Forward. • Agile users may be able to execute this pattern quite quickly. • Set this parameter according to the agility of the user.
- Page 21 The tilt sensor inhibit becomes inac- tive again when the angle becomes less than 65° (default). The use of this functionality certainly makes sense when a mo-vis joystick is integrated in a tray or other tilting sur- face/mounting aid. NOTE: The tilt sensor response time is less than or equal to 1s.
- Page 22 Twister Pro Installation manual. NOTE: You have to program the safety switch both here in the mo-vis Configurator and in the R-net Programmer. For a Multi Joystick, there is the additional option to program the yellow tip on the sensor itself.
- Page 23 Twister Pro Installation manual. NOTE: You have to program the safety switch both here in the mo-vis Configurator and in the R-net Programmer. Another parameter that you can set is the Debounce Timer. This will be applied to all...
- Page 24 SETTING DESCRIPTION PARAMETERS Debounce The input button has to be pressed 50 mS Min./Default timer for longer than the debounce timer, 2500 mS Max. before it is seen as an input. It can be useful to increase this timer, in 10 mS Step case the user has a tremor.
-
Page 25: Testing
Testing After installation of the device, execute the following tests before the wheelchair is delivered or put into service, in according order: Check the device for intactness on page 24 Operational test on page 24 Test drive on page 25 Stop test on page 25 Check the device for intactness Check whether:... -
Page 26: Test Drive
Test drive Do a test drive with the wheelchair. Check whether the wheelchair and all its functionalities function correctly in all positions the user may use the joystick and switches. Check whether cables or parts may not get damaged or hindered in any possible position of the wheelchair. -
Page 27: First Time Use
Draw the user's attention to the following: WARNING: A functional test is needed when the LED light flashes and/or after every incident with the wheelchair or the mo-vis device. WARNING: The device should never be covered or blocked in order to avoid uncontrollable behavior of the joystick and/or the wheelchair. -
Page 28: Maintenance
Maintenance The device is maintenance-free. Under regular circumstances of use, the device and different parts do not require additional maintenance. Please refer to the User Manual of the device for cleaning instructions. WARNING: As dust and dirt could lead to reduced functionality, all parts of the device should be cleaned on a regular basis (monthly) or whenever needed. -
Page 29: Error Codes
Warnings: LED will flash in orange. A warning can be resolved quite easily (see table below). • Errors: LED will flash in red. An error might indicate a more serious issue and/or the device will have to come back to mo-vis. FLASH COUNT REASON REQUIRED ACTION... - Page 30 Coding error Update software or replace PCB. Con- tact mo-vis. TROUBLE: A fault log with counters is maintained. The fault log can be accessed by the configurator (dealer level). For more information, contact mo-vis. Foot Control Installation manual...
-
Page 31: Omni Joystick Connection
Omni Joystick Connection Purpose A mo-vis Omni Joystick has a cable with a SUB D9 connector and a 3.5 mm jack connection. They can be plugged in directly to the electronics of the wheelchair. The joystick then controls the wheelchair in all its functions (driving, electric gears, lights …). -
Page 32: R-Net Joystick Connection
R-net Joystick Connection Purpose An R-net joystick has a communication cable with an R-net connector. The cable can be directly plugged into the R-net electronics of the wheelchair. The joystick then controls the wheelchair in all its functions (driving, electric gears …). For more information about the R-net system, please refer to the Curtiss-Wright website http://www.cw-industrialgroup.com Connecting the R-net communication cable... -
Page 33: R-Net Parameters
R-net parameters Some R-net parameters need to be set for correct usage of the mo-vis R-net joysticks. For this we refer to the Curtiss-Wright manual SK77981-14 | R-net Technical Manual | Chapter 3 - Progamming R-net (Ch. 3 - 4.4):Profile Management > Input Device Type: •... - Page 34 PARAMETER SUPPORTED FIRMWARE VERSION Actuator switches while driving Speed adjust Profile button V02.00 Actuator endstop beep Sounder volume V02.03 Start-up beep Lock function enabled Reverse driving alarm V02.00 Emergency stop switch OBP keycode entry Power-up mode External profile jack function Profile / mode jack detect On / off jack detect Profiled parameter...
-
Page 35: Other Information
PARAMETER SUPPORTED FIRMWARE VERSION Switch to standby V02.01 Mode selection in standby V02.01 Standby in modes V02.01 Standby forward V02.00 Standby reverse V02.00 Standby left V02.00 Standby right V02.00 Remote selection V02.03 Background Other information An R-net chipset is incorporated in our products. These products were tested with CJSM2 ... - Page 36 Foot Control Installation manual...
- Page 37 . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
