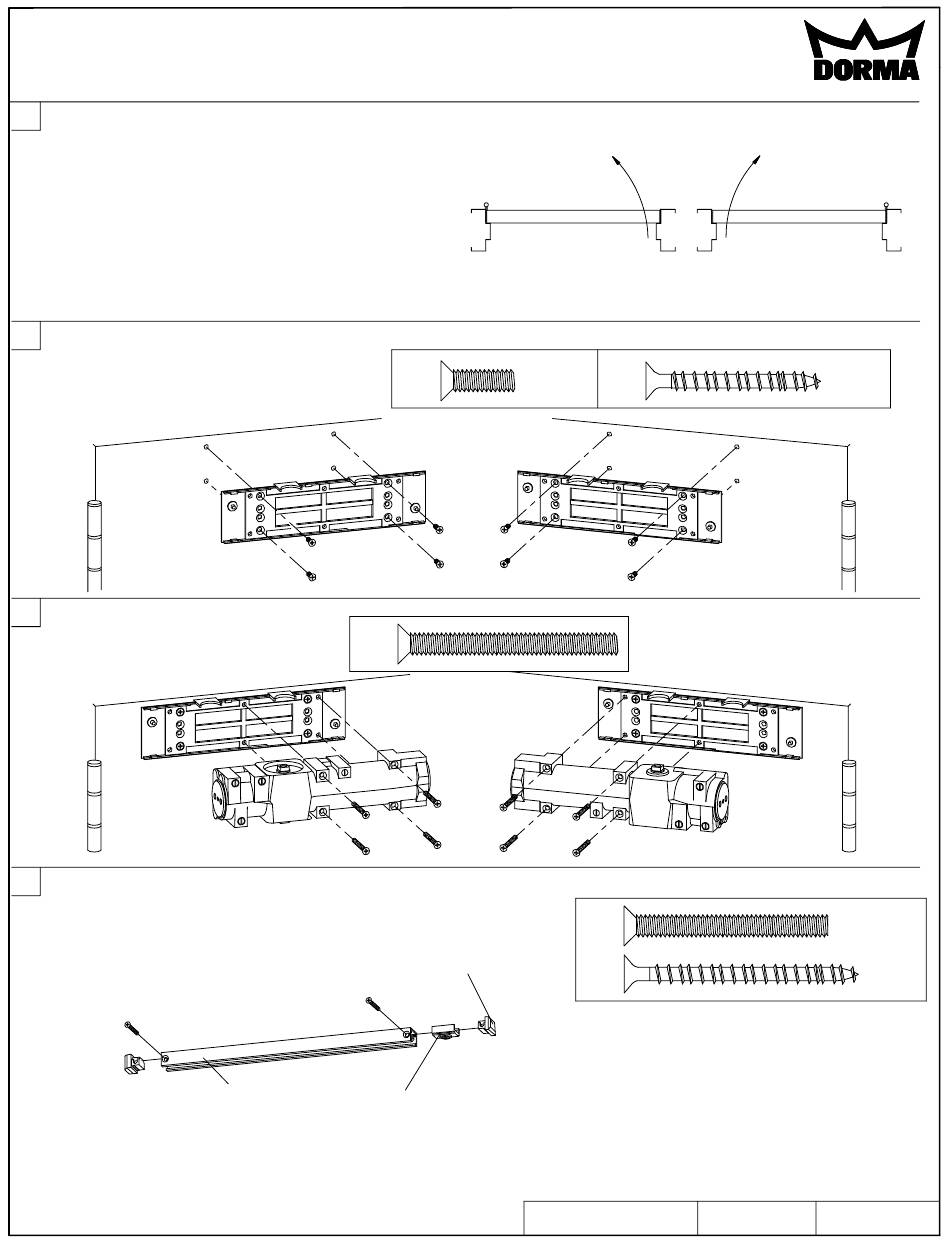

TS93-5 PKT 90/119
POCKET DOOR TRACK (TRACK ON WALL)
1
(REFERENCE UNIT CARTON LABEL FOR ACCESSORIES AND OPTIONS SUPPLIED)
Determine hand of door and prepare door and
wall for fasteners according to template 08280112.
2
Attach mounting plate to door.
RIGHT HAND DOOR
POCKET
WALL
Attach closer to mounting plate.
3
RIGHT HAND DOOR
POCKET
WALL
4
Attach track to wall.
Insert slide shoe and end blocks into track. Attach track to wall.
www.dorma-usa.com
All manuals and user guides at all-guides.com
QTY
(4)
END BLOCK
POCKET
WALL
SLIDE
TRACK
SHOE
1-800-523-8483
LEFT HAND DOOR
QTY
METAL
(4)
DOORS
INS NO.
RIGHT HAND DOOR
QTY
(4)
LEFT HAND DOOR
LEFT HAND DOOR
QTY
(2)
INSPK NO. 08280110 Rev.11/07
1 of 3
08280111
PAGE
WOOD
DOORS
POCKET
WALL
POCKET
WALL
METAL
DOOR
WOOD
DOOR
11/07
Rev.
Advertisement
Table of Contents
Related Manuals for Dorma TS93-5 PKT 90/119
Summary of Contents for Dorma TS93-5 PKT 90/119
- Page 1 All manuals and user guides at all-guides.com TS93-5 PKT 90/119 POCKET DOOR TRACK (TRACK ON WALL) (REFERENCE UNIT CARTON LABEL FOR ACCESSORIES AND OPTIONS SUPPLIED) Determine hand of door and prepare door and wall for fasteners according to template 08280112.
- Page 2 All manuals and user guides at all-guides.com Attach arm to slide shoe. Align hole in arm with slide shoe in track. Insert screw and tighten securely. Install track cover. POCKET WALL M5 HEX KEY (93T, 93TH) With door closed, place wrench on bottom pinion of closer. Rotate wrench slightly toward latch end of door. Attach main arm to top pinion of closer.
- Page 3 All manuals and user guides at all-guides.com Install cover. REMOVE END COVERS COVER Slide end covers over closer body Remove tab that aligns with arm hub. Slide Secure with locking end caps. cover onto plate. screw. 08280111 3 of 3 11/07 INS NO.
