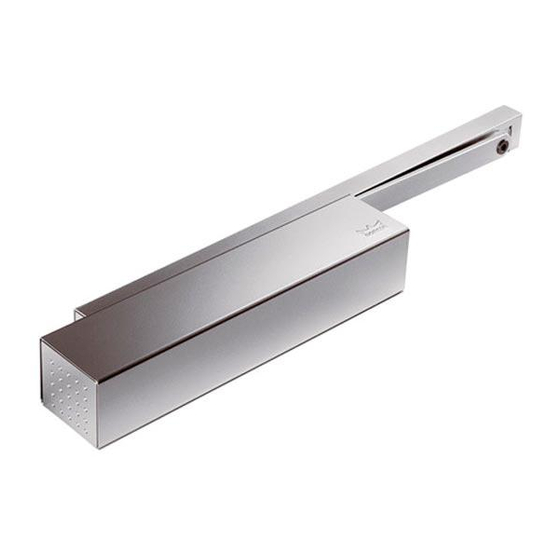

TS93 T, TH
PULL SIDE TRACK MOUNT
1
(REFERENCE UNIT CARTON LABEL FOR ACCESSORIES AND OPTIONS SUPPLIED)

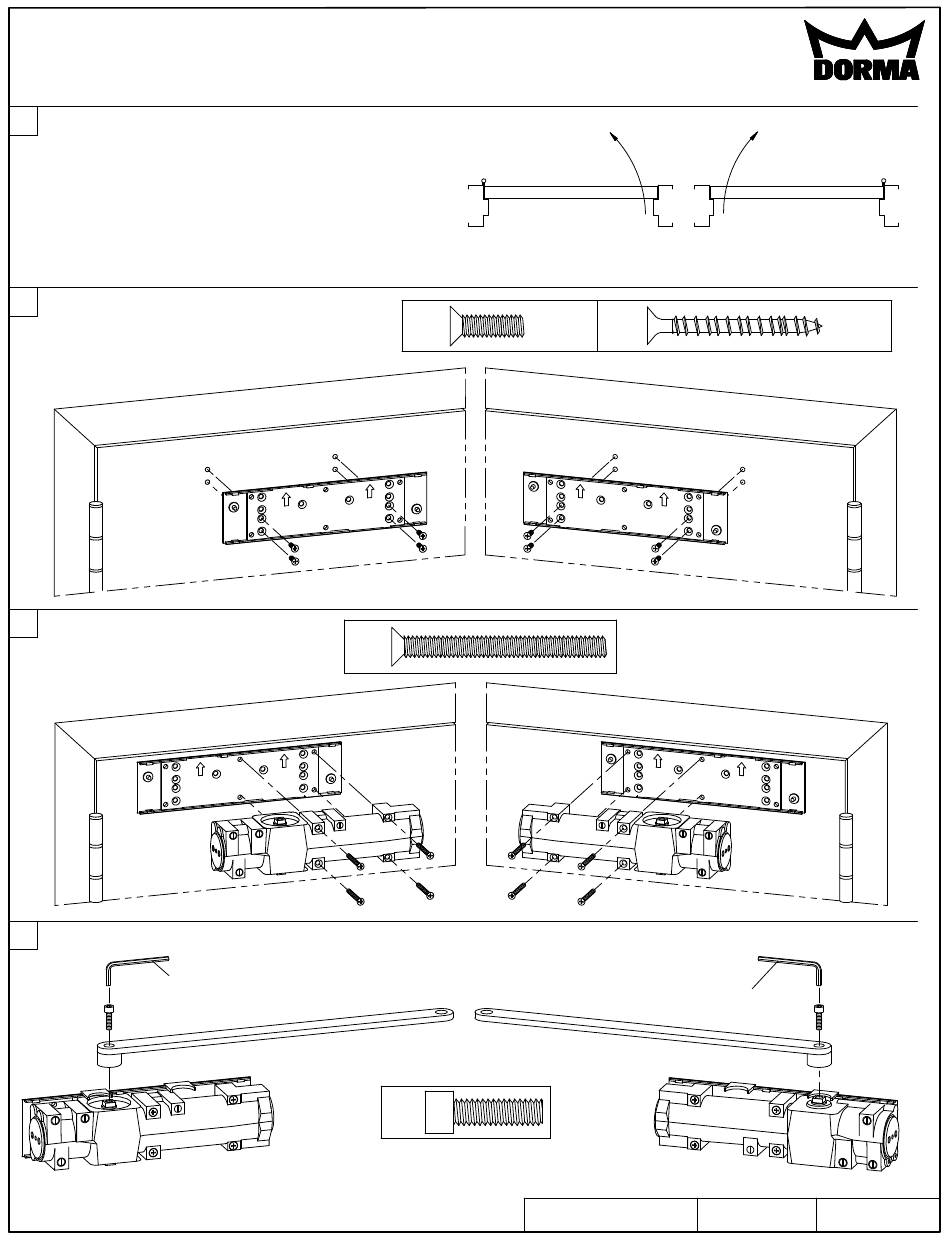

Determine hand of door and unit type supplied,
(93T, 93PT). Prepare door and frame for fasteners
according to template 08279222.
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT OF
COMPONENTS TO UNREINFORCED DOORS AND TO WOOD
OR PLASTIC FACED COMPOSITE TYPE FIRE DOORS, UNLESS AN
ALTERNATIVE METHOD IS IDENTIFIED IN THE INDIVIDUAL DOOR
MANUFACTURER'S LISTINGS.
2
Attach mounting plate to door, using lower four
holes in plate. Use upper four holes for optional
mounting. Arrows on plate face top of door.
RIGHT HAND DOOR
3
Attach closer to mounting plate.
RIGHT HAND DOOR
4
Attach arm to pinion of closer, parallel to door.
M5 HEX KEY
www.dorma-usa.com
QTY
(4)
QTY
(4)
RIGHT HAND DOOR
QTY
(1)
1-800-523-8483
LEFT HAND DOOR
QTY
METAL
(4)
DOORS
M5 HEX KEY
LEFT HAND DOOR
INSPK NO. 08279220 Rev.03/08
08279221
INS NO.
RIGHT HAND DOOR
WOOD
DOORS
LEFT HAND DOOR
LEFT HAND DOOR
1 of 3
03/08
PAGE
Rev.
