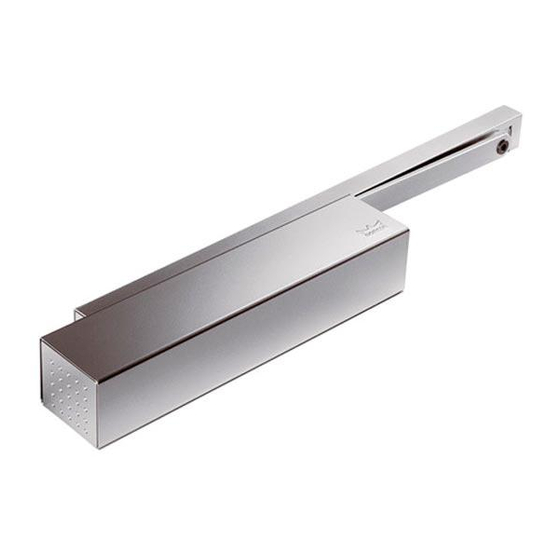

- Page 1 TS93 T/TH — Surface applied door closer Installation instructions: Pull side jamb mount with dead stop (T) Optional hold open (TH)
- Page 2 Template is for 4-1/2 x 4-1/2 butt hinges & 3/4" offset pivots Maximum door opening degree is 175°. Minimum door width 24". DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 06/14 Reamstown, PA 17567...
- Page 3 Right hand door (RH) Hinge Hinge Right hand reverse Left hand reverse door (RHR) door (LHR) Exterior side of door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279221 06/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 4 M6x20 socket head cap screw (2) using an M5 hex key. Be sure the main arm is parallel to the door during application. Right hand door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279221 06/14 Reamstown, PA 17567...
- Page 5 Right hand door 5.1 Align the arm (1) with the slide shoe of the track channel. 5.2 Attach with one M8x15mm shoulder bolt (2) using an M5 hex key. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279221 06/14...
- Page 6 3'6" TS9356 TS9356 NOTE: Supplied with a size 6 spring setting. 4'6" Increase force: turn clockwise 6 times (max) DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279221 06/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 7 1.3 Attach with a 4-40 Phillips pan head screw (4) . 1.2 Remove the un-needed tab (2), and snap the closer body 1.4 Snap the track cover (5) into place. cover (3) into place. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279221 06/14...
- Page 8 DORMA USA, INC. DORMA DRIVE, DRAWER AC REAMSTOWN, PA 17567 TOLL-FREE: 800-523-8483 FAX: 800-274-9724 E-MAIL: DORMAARCHITECTURAL@DORMA.COM WWW.DORMA-USA.COM...
