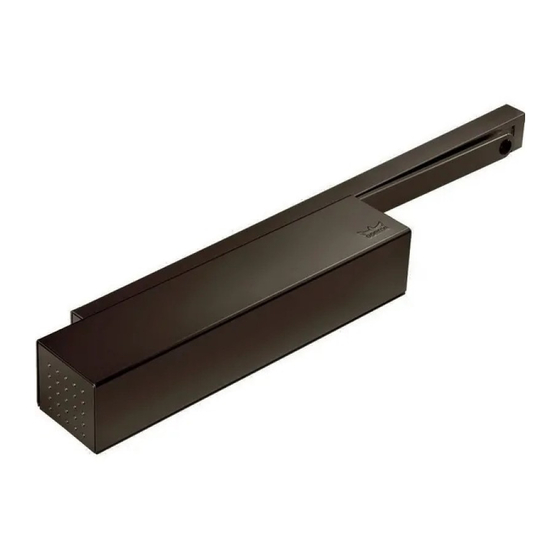

- Page 1 TS93 PT/PTH — Surface applied door closer Installation instructions: Push side track mount with dead stop (PT) Optional hold open (PTH)
- Page 2 Template is for 4-1/2 x 4-1/2 butt hinges & 3/4" offset pivots Maximum door opening degree is 110°. Minimum door with 26". DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14 Reamstown, PA 17567...
- Page 3 Right hand door (RH) Hinge Hinge Right hand reverse Left hand reverse door (RHR) door (LHR) Exterior side of door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 4 M6x20 socket head cap screw (2) using an M5 hex key. Be sure the main arm is parallel to the door during application. Left hand door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14 Reamstown, PA 17567...
- Page 5 Left hand door 5.1 Align the arm (1) with the slide shoe of the track channel. 5.2 Attach with one M8x15mm shoulder bolt (2) using an M5 hex key. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14...
- Page 6 TS9356 3'6" NOTE: Supplied with a size 6 spring setting. TS9356 4'6" Increase force: turn clockwise 6 times (max) DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 7 1.3 Attach with a 4-40 Phillips pan head screw (4) . 1.2 Remove the un-needed tab (2), and snap the closer body 1.4 Snap the track cover (5) into place. cover (3) into place. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08279211 05/14...
- Page 8 DORMA USA, INC. DORMA DRIVE, DRAWER AC REAMSTOWN, PA 17567 TOLL-FREE: 800-523-8483 FAX: 800-274-9724 E-MAIL: DORMAARCHITECTURAL@DORMA.COM WWW.DORMA-USA.COM...
