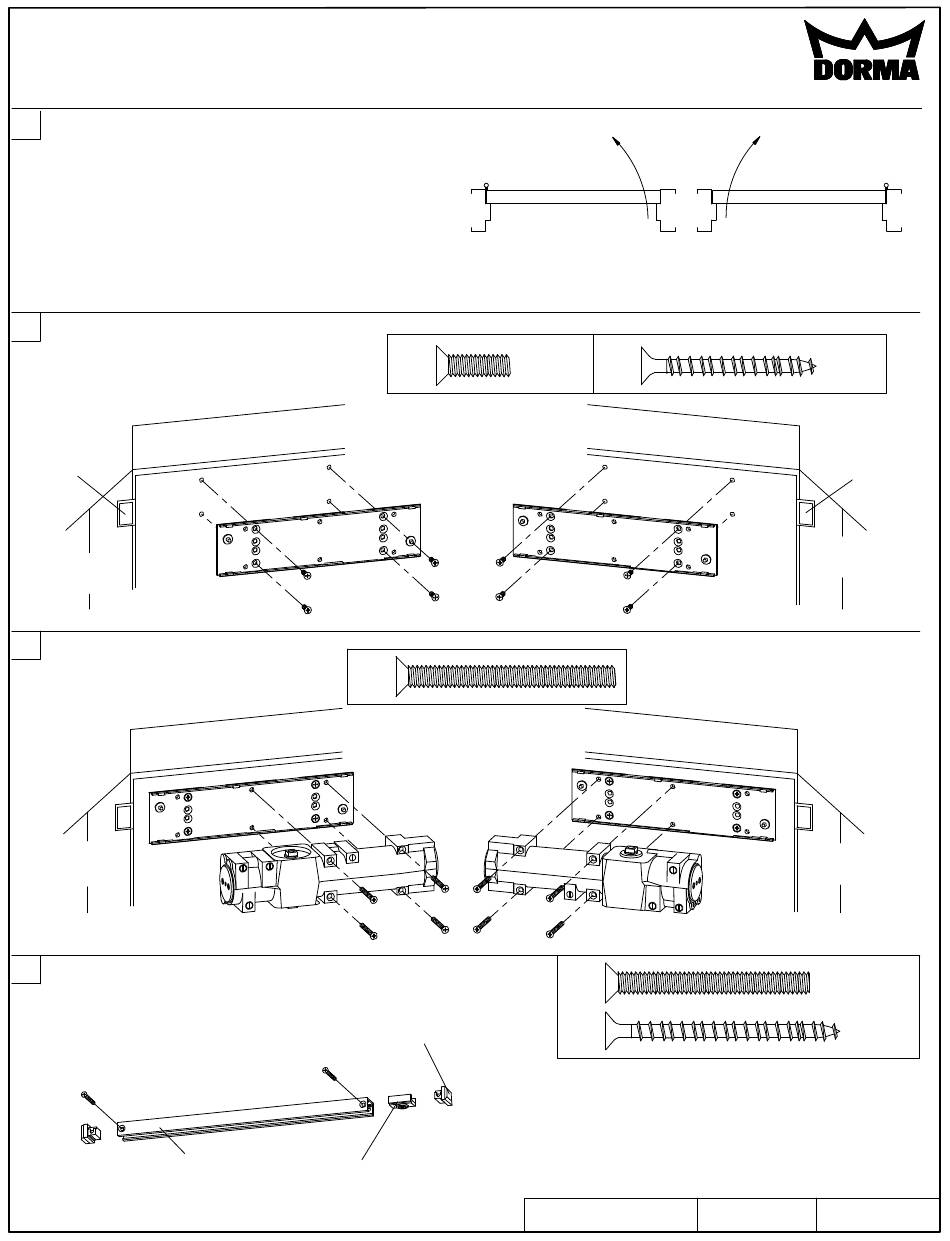

TS93-5 PKT 90, 90/D, 90/F
POCKET DOOR TRACK (TRACK ON WALL)
1
(REFERENCE UNIT CARTON LABEL FOR ACCESSORIES AND OPTIONS SUPPLIED)
Determine hand of door and unit type supplied.
Prepare door and wall for fasteners
according to template 08279992.
2
Attach mounting plate to door.
RIGHT HAND DOOR
POCKET
PIVOTS
POCKET
WALL
Attach closer to mounting plate.
3
RIGHT HAND DOOR
POCKET
WALL
DOOR
4
Attach track to wall.
Insert slide shoe and end blocks into track. Attach track to
wall.
POCKET WALL
TRACK
www.dorma-usa.com
DOOR
QTY
(4)
END BLOCK
SLIDE
SHOE
1-800-523-8483
PIVOT
SIDE
LEFT HAND DOOR
QTY
METAL
(4)
DOORS
QTY
(2)
INS NO.
RIGHT HAND DOOR
QTY
(4)
LEFT HAND DOOR
DOOR
LEFT HAND DOOR
DOOR
INSPK NO. 08279990 Rev.05/08
1 of 3
08279991
PAGE
PIVOT
SIDE
WOOD
DOORS
POCKET
PIVOTS
POCKET
WALL
POCKET
WALL
METAL
SCREWS
WOOD
SCREWS
05/08
Rev.
Advertisement
Table of Contents
Related Manuals for Dorma TS93-5 PKT 90
Summary of Contents for Dorma TS93-5 PKT 90
- Page 1 TS93-5 PKT 90, 90/D, 90/F POCKET DOOR TRACK (TRACK ON WALL) (REFERENCE UNIT CARTON LABEL FOR ACCESSORIES AND OPTIONS SUPPLIED) Determine hand of door and unit type supplied. PIVOT PIVOT Prepare door and wall for fasteners SIDE SIDE according to template 08279992.
- Page 2 Attach arm to slide shoe. Align hole in arm with slide shoe in track. Insert screw and tighten securely. Install track cover. POCKET WALL M5 HEX KEY (93T, 93TH) With door closed place wrench on bottom pinion of closer. Rotate wrench slightly toward latch edge of door. Attach main arm to top pinion of closer.
- Page 3 Install cover. REMOVE END COVERS COVER Slide end covers over closer body Remove tab that aligns with arm hub. Slide Secure with locking end caps. cover onto plate. screw. 08279991 05/08 3 of 3 INS NO. PAGE Rev.
