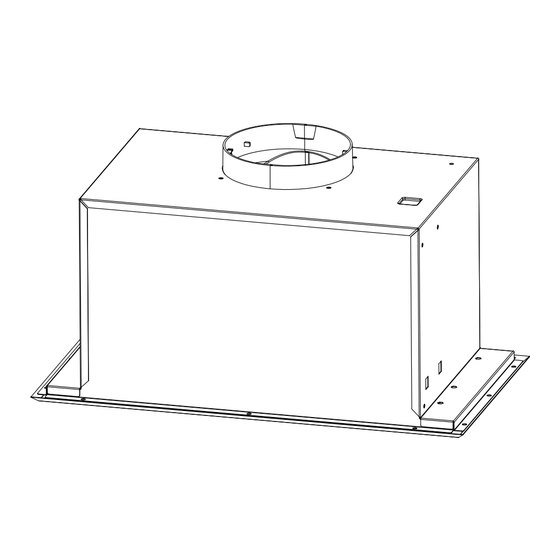

- Page 1 Midea Cooker Hood Instruction MODEL : MHB90S MHB52S SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your cooker hood,and keep it carefully. If you follow the instructions, your cooker hood will provide you with many years of good service.
-
Page 2: Table Of Contents
Contents Contents Contents..............1 Warnings............... Safety Warning............Measurement............Installation..............6 Use................ Maintenance............Trouble Shooting..........Main Parameters..........Disposal.............. -
Page 3: Warnings
Warnings This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Safety Warning
Safety Warning The appliance is not intended for use by young children or infirm persons without supervisions. Young children should be supervised to ensure they do not play with the appliance. Plug the power cord to socket outlet with earthing continuity terminal. ... -
Page 5: Measurement
Measurement 520 900 497 865 Φ150... - Page 6 Measurement...
-
Page 7: Installation
Installation Here two venting modes, extraction-air mode and recirculation mode, before installing， select one mode. Recirculation mode Extraction-air mode... - Page 8 Press the lock catch of metal Filter, remove the Filter. Remove the stainless steel frame by unfastening the 4 screw (M4*10). and MHB90S model unfastening the other 2 screws (M4*10). Unfastening the screws (ST4*10), remove the lid of terminal box, disconnect the wires to the Commands at the connectors.
- Page 9 Installation Screw the stainless steel frame back into place using the screws removed as described above. Reconnect the wires to the Commands and Light. Replace the metal Filter. Install the air outlet pipe (optional). ...
-
Page 10: Use
Speed adjustment. See below Fig. Press the Light button, the two lighting lamps will come on. Press it again and the lamps will be turned off. Press the High (speed) button, the motor runs at high speed. Press the Mid (speed) button, the motor runs at mid speed. Press the Low (speed) button, the motor runs at low speed. - Page 11 Maintenance Changing the filter Remove the metal filter according to Installation (page 7). Remove the saturated Activated Charcoal Filters (optional), indicated. Fit the new Charcoal Filters, as indicated. Replace the Metal grease Filter according to Installtion (page 8). ...
- Page 12 Maintenance Replacing the lamp Press the lock catch of metal Filter, remove the Filter. Push the lamp from inside, to remove the Lamp. Disconnect the wires to the Lamp. Connect the wires of the new Lamp. ...
-
Page 13: Trouble Shooting
Trouble Shooting Fault Cause Solution The blades are blocked. The capacitor is damaged. Replace capacitor. Light on, but motor The motor is damaged. Replace motor. does not work. The internal wiring of motor is cut off / disconnected. An unpleaseant smell Replace motor. -
Page 14: Main Parameters
Main Parameters 220-240V 50Hz Voltage Rated Power 113W 1.5 W x 2 Lighting Power Motor Power 150mm Diameter of air tube 400m /h Air flow Noise 67 dB(A) The air flow parameter is tested under conditions of 230V 50Hz when the voltage is 220-240V 50Hz and without carbon filters. - Page 16 Midea Appliances Australia 280 Wickham Road Highett VIC 3190 Australia 1300 793 216 midea.net.au...
