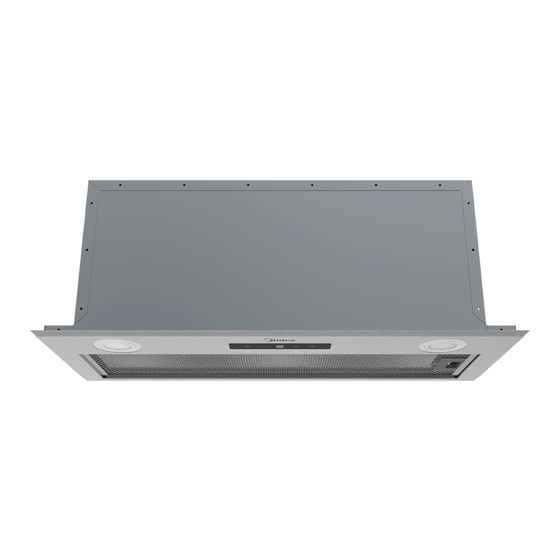

The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Table of Contents
Related Manuals for Midea 330173
Summary of Contents for Midea 330173
- Page 1 Cooker Hood USER MANUAL 330173 330174 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW PRODUCT INSTALLATION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. - Page 4 WARNING This appliance is not intended for use by persons (including children) with reduced ● physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Specifications
The cooker hood and its filter should be cleaned regularly according to the instruction. ● SPECIFICATIONS Product Model 330173/330174 Voltage 220V-240V~/50Hz Rated Power 293 W Lighting Power 1.5 W ×... -
Page 6: Product Overview
PRODUCT OVERVIEW Measurement unit：mm Φ150 Electric Hob Gas Hob Min.500mm Min.650mm... -
Page 7: Product Installation
PRODUCT INSTALLATION Installation Here two venting modes, extraction-air mode and recirculation mode, before installing select one mode. Recirculation mode Extraction-air mode... - Page 8 1. Press the lock catch of metal 2. Remove the stainless steel frame by unfastening the 4 screws (M4*10). Filter, remove the Filter. 3. Unfastening the screws 4. Disconnect the wires to the (ST4*10), remove the lid of Light at the connectors. terminal box, disconnect the wires to the Commands at the connectors.
- Page 9 7. Reconnect the wires to 8. Replace the metal Filter. the Commands and Light. 9. Install the air outlet pipe(optional).
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS Speed Adjustment. See Below Fig Light Minus Digital screen Plus Power After the hood is switched on, a beep sound heard and all key lights are lightened for 1 s, indicating the hood has been powered on. Under the condition the hood power-on: independently control the light on and o free from the e ect of other keys. -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Of The Filter Removing the metal filter according to Installation (page 7). ● Put it into a dishwasher with detergent, set the temperature below 60 degrees. ● Please do not use abrasive detergent for it will damage the hood. ●... - Page 12 Replacing The Lamp Press the lock catch of metal Filter, Push the lamp from inside, to remove remove the Filter. the Lamp. Disconnect the wires to the Lamp. Connect the wires of the new Lamp. Push the new lamp and fix it to the hole. Max Power Voltage Picture...
-
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible reason Solution The blades are blocked. Check the blades ● The capacitor is damaged. Replace capacitor. ● Light on, but motor The motor is damaged. Replace motor. ● does not work The internal wiring of motor Replace motor. ●... -
Page 14: Trademarks, Copyrights And Legal Statement
Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. -
Page 15: Data Protection Notice
