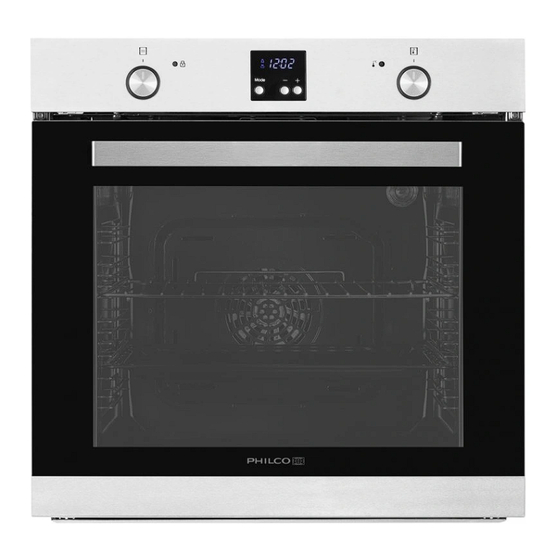

Built-in Oven
OWNER'S MANUAL
POP 688 BX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POP 688 BX and is the answer not in the manual?

Questions and answers

Related Manuals for Philco POP 688 BX

Summary of Contents for Philco POP 688 BX

  • Page 1 Built-in Oven OWNER’S MANUAL POP 688 BX...
  • Page 2 IMPORTANT / NOTE Operating the system correctly Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ..........................2 1.1 General Safety Warnings................................2 1.2 Installation Warnings ................................. 4 1.3 During Use ..................................... 5 1.4 During Cleaning and Maintenance ............................6 2. INSTALLATION AND PREPARATION FOR USE ....................8 2.1 Instructions for the Installer ..............................8 2.2 Installation of the Oven ................................

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual. 1.1 General Safety Warnings • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental...
  • Page 5 • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces. • Do not use steam cleaners for cleaning the appliance. WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp. CAUTION: Accessible parts may be hot when cooking or grilling.

  • Page 6: Installation Warnings

    • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. • Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

  • Page 7: During Use

    1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

  • Page 8: During Cleaning And Maintenance

    • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and...
  • Page 9 Disposal of your old machineThis This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...

  • Page 10: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. • Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible.
  • Page 11 Installation under a worktop Installation in a wall unit EN - 9 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 12: Electrical Connection And Safety

    After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. 2.3 Electrical Connection and Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the...

  • Page 13: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer 5. Oven Function Control Knob 6.

  • Page 14: Use Of Product

    4. USE OF PRODUCT 4.1 Oven Controls Oven function control knob Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see ´Oven Functions`. Oven thermostat knob After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.
  • Page 15 Grilling Function: The oven’s thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid.

  • Page 16: Cooking Table

    4.2 Cooking Table Dishes Puff Pastry 2-3-4 170-190 35-45 Cake 2-3-4 170-190 30-40 Cookie 2-3-4 170-190 30-40 Stew 175-200 40-50 Chicken 2-3-4 45-60 Puff Pastry 2-3-4 170-190 25-35 Cake 2-3-4 150-170 25-35 Cookie 2-3-4 150-170 25-35 Stew 175-200 40-50 Chicken 2-3-4 45-60 Puff Pastry 2-3-4 170-190...

  • Page 17: Use Of The Digital Timer

    4.3 Use of the Digital Timer Time adjustment The time must be set before you start using the oven. Following the power connection, the symbol “A” and “000” will flash on the display screen. 1. Press the “+” and “-” buttons simultaneously. The dots in the middle of the screen will start to flash. 2. Adjust the time using the “+” and “-” buttons while the dots are flashing. 3. After a few seconds, the dots will stop flashing and will remain illuminated. Audible warning time adjustment The audible warning time can be set to any time between 0:00 and 23:59 hours. The audible warning time is for warning purposes only, the oven will not be activated with this function.
  • Page 18 2. Select the desired time period using the “+” and “-” keys while is flashing. 3. The symbol will remain illuminated, the time will be saved and the warning will be set. When the timer reaches zero, an audible warning will sound and the symbol will flash. Press any key to stop the sound and the symbol will disappear. Semi-automatic time adjustment (cooking period) This function helps you to cook for a fixed period of time.
  • Page 19 4. The current time of day will reappear on the screen, and the symbols “A” and will remain illuminated. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbol “A” will flash. Turn both control knobs to the “0” position and press any button on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function. Semi-automatic time adjustment (finishing time) This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven. 1.
  • Page 20 When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbol “A” will flash. Turn both control knobs to the “0” position and press any key on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function. Full-automatic programming This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 10 hours after the current time of day can be set. Prepare the food for cooking and put it in the oven.
  • Page 21 6. Select the desired finishing time using the “+” and “-” buttons. 7. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this. 8. The current time will reappear on the screen, ´and the symbols “A” and will remain illuminated. The operating time will be calculated and the oven will automatically start so that cooking will finish at the set finishing time. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbol “A” will flash. Turn both control knobs to the “0”...

  • Page 22: Accessories

    4.4 Accessories The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven. • Allow at least a 1 cm space between the fan cover and accessories. • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns. • The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
  • Page 23 The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers. WARNING: Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. The Water Collector In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

  • Page 24: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE 5.1 Cleaning WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.
  • Page 25 • It is advisable to wipe the oven down with a sponge soaked in warm water, after each cooking operation or pyrolytic cleaning cycle has been carried out. • During the pyrolytic operation, a smell and some fumes will emanate due to the destruction of food residue within the oven. This is normal. Oven cleaning fumes could be fatal to birds, children and pets so all should be kept away until the operation is complete. • The area where the oven is installed should be kept well-ventilated, especially during the pyrolytic cleaning function, and any doors leading into the area should be closed to avoid passing the smell and fumes throughout.
  • Page 26 3. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you. Removal of the Inner Glass You must remove the oven door glass before cleaning, as shown below. 1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

  • Page 27: Maintenance

    If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up. 5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

  • Page 28: Troubleshooting & Transport

    6. TROUBLESHOOTING & TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Oven does not switch on. Power is switched off. Check whether there is power supplied.

  • Page 29: Technical Specifications

    7. TECHNICAL SPECIFICATIONS DATA SHEET: Philco Philco trademark: Brand PHILCO Model POP 688 BX Type of Oven ELECTRIC Mass 34,3 Energy Efficiency Index - conventional 104,1 Energy Efficiency Index - fan forced 94,5 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,87 Energy consumption (electricity) - fan forced kWh/cycle 0,79 Number of cavities...
  • Page 30 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical &...
  • Page 31 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 29 Electrolux Home Products., Inc. Copyright © 2020, Fast ČR, a. s. Revízia 02/2020...
