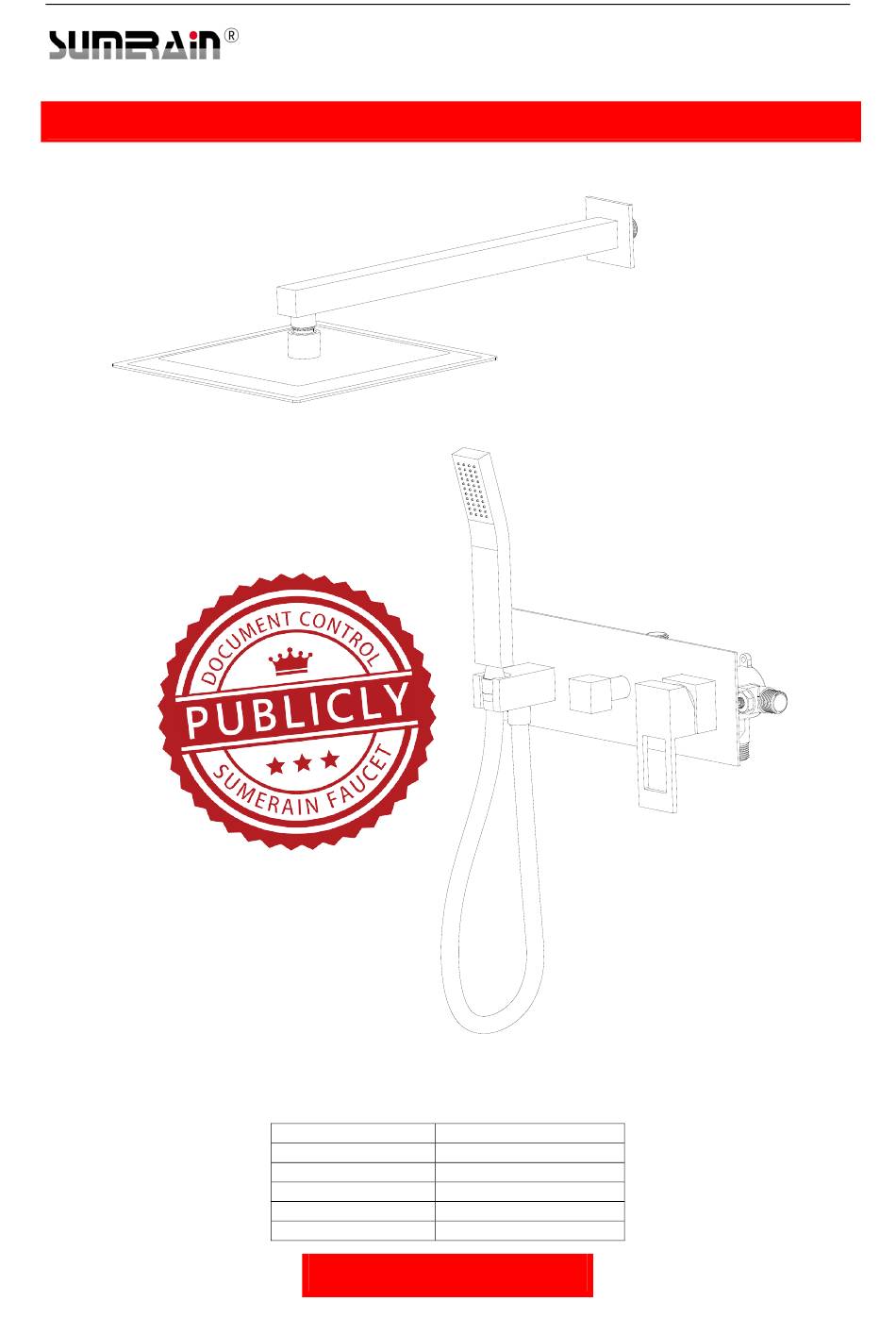

- Page 1 S3238IB-XX Version: 1.4 INSTALLATION GUIDE WALLMOUNT WATERFALL TUB FAUCET MODEL FINISH S3238IB-CH CHROME S3238IB-BN BRUSHED NICKEL S3238IB-OB OIL RUBBED BRONZE S3238IB-MB MATTE BLACK S3238IB-BG BRUSHED GOLD HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 FUNCTIONS AND SPECIFICATION Shower faucet Faucet type Feature Concealed shower faucet Theme Modern, Contemporary Mounting type Wall mounted Finish Chrome/Brushed nickel/Matte Black/Brushed Gold/ Oil Rubbed Bronze Number of Handles Handles Material Metal Handle style Lever and knob Escutcheon included Escutcheon Width 4-1/8 Inch [105mm] Escutcheon Length 12 Inch [305mm]...
- Page 5 DEMENSION FRONT VIEW OF FAUCET TOP VIEW OF FAUCET...
- Page 6 LEFT VIEW OF FAUCET...
-
Page 7: Installation Steps
Shower arm flange PFC32181CH No.3 Escutcheon SUS304 PCP21210CH Shower arm SUS304 PPI32380CH Set screw SUS304 PSC05050XX Shower head ASSEMBLE PTR00001CH Zn Alloy Handle(lever) PHD32180CH No.3 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... -
Page 8: Installation
4. PLANNING AND INSTALLATION INSTRUCTIONS Attentions: The faucet has to be installed, rinsed and checked in compliance with the applicable regulations in order to guarantee proper shower function! Operating pressure at the control valve: Max. 1Mpa. Recommended operating pressure: 3 bar pressure. Hot water temperature: Max 60 degree centigrade (140 Fahrenheit). - Page 9 5.3 Secure the rough-in valve assembly to the mounting rack with screws. Make sure the valve body is level. horizontal...
- Page 10 5.4 Apply Teflon tape on the thread of rough-in valve’s cold and hot water supply inlets and then connect to water supply system. North America Connector standard: NPT 1/2-14 Europe and Others Connector standard: G1/2 5.5 Connect top outlet to shower pipe with proper fittings. North America Connector standard: NPT 1/2-14 Europe and Others Connector standard: G1/2...
- Page 11 5.6 Done the finish wall. 5.7 Showerhead installation. 5.7.1 Attach shower arm escutcheon to the shower arm...
- Page 12 5.7.2 Apply Teflon tape on the thread of shower arm, secure the shower arm into the pipe elbow inside the wall by rotating clockwise. Connector standard: NPT1/2 [North America] G1/2 [UK, Europe etc] 5.7.3 Seal the wall around the shower arm escutcheon with waterproof sealant...
- Page 13 5.7.4 Put the screen washer into the connector of showerhead and secure the showerhead on the shower arm by hand rotating clockwise.
- Page 14 5.8 Trim set installation 5.8.1 Apply Teflon tape on the thread of nipple and screw the thread into the rough-in valve inside the wall. 5.8.2 Remove the plastic guard. 5.8.3 Attach the escutcheon over the valve body and seal the wall around the plaster shield with waterproof sealant WARNING: Failure to seal the wall can lead to possible water damage.
- Page 15 5.8.4 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided. (Please don’t over tighten), Then attach the screw cover onto handle. 5.8.5 Place Knob onto the diverter valve stem and tighten set screws by using the Allen wrench that is provided.
- Page 16 5.8. 6 Attach shower holder onto the nipple and tighten set screws by the Allen wrench that is provided. 5.8.7 Connect the hand shower to shower holder with shower hose.. ASSEMBLE FINISHED...
-
Page 17: Function Inspection
6. INSPECTION 6.1 Turn on hot and cold water supply and check all connection for ensuring no leaking anywhere. 7. FUNCTION INSPECTION 7.1 Turn on the handle, the water outflow from the showerhead and then turn off the handle, the water stop out flowing. 7.2 Turn left the handle, the hot water outflow from the showerhead and then turn right the handle, the cold water outflow from the showerhead. - Page 18 7.3 Switch the diverter Knob, the water will rush from the hand shower. INSTALL FINISH...
- Page 19 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
