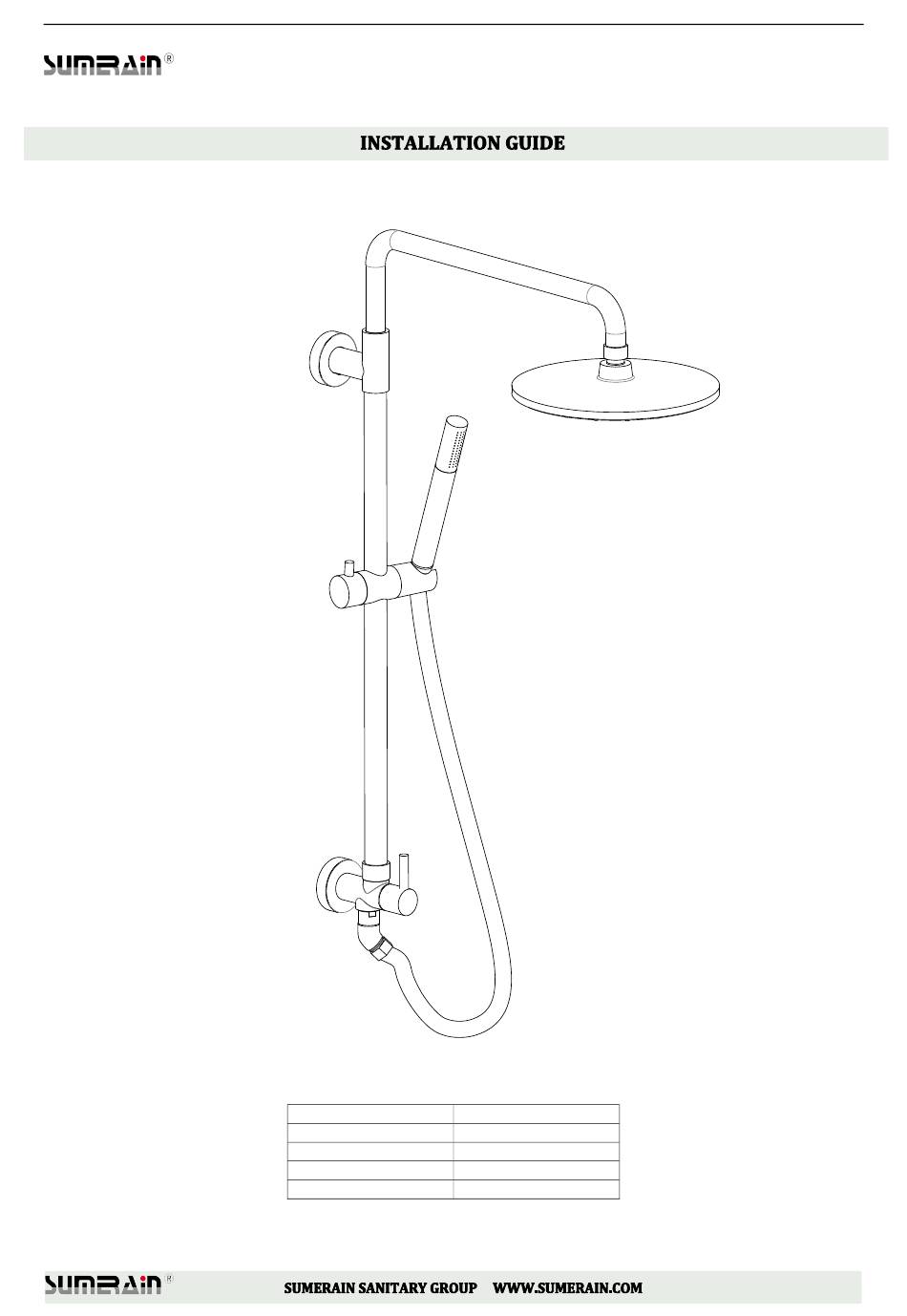

- Page 1 MODEL: S3235X Version: V1.2 SHOWER SYSTEM MODEL FINISH S3235C CHROME S3235N BRUSHED NICKEL S3235D OIL RUBBER BRONZE S3235BG Brushed Gold HOT LINE: +1-866-203 0866...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
- Page 4 Faucet type Rain shower system with hand shower Feature 2-function shower system Theme Modern, Contemporary Mounting type Wall mounted Number of Handles Handles Material Metal Handle style Knob Shower Arm Reach 16-17/32’’ Showerhead Width 9-1/16’’ Faucet Body Material Brass Diverter included Shower Arm Material Stainless Steel Slide Bar Material...
- Page 5 FRONT VIEW OF SHOWER...
- Page 6 SIDE VIEW OF SHOWER...
-
Page 7: Before Proceeding
1. BEFORE PROCEEDING WARNING: (a) Read all the instructions completely before proceeding.SUMERAIN recommends calling a professional if you are uncertain about installing this product!, this product should be installed in accordance with all local and state plumbing and building codes. -
Page 8: Checking The Contents Of The Box
3235023 Mounting base 1 PCS 3235024 Adhesive sticker 1 PCS 3235025 Adhesive 1 PCS 3235026 Hand shower 1 PCS 3235027 Shower hose 1 PCS If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 9 4. INSTALLATION GUIDE 4.1 Remove your existing showerhead. 4.2 Remove your existing shower arm. 4.3 Apply generous amount of PTFE Thread Sealant Tape to the NPT ends of supply nipple and install to the existing outlet elbow by S12 Allen Key.
- Page 10 4.4 Slide hand shower holder off shower pipe 4.5 Install shower pipe to diverter valve.
- Page 11 4.6 Remove covering of 3M Tape and position mount on marked locations of mounting base. 4.7 Apply adhesive (glue) on the area as indicated in below figure (Black pattern).
- Page 12 4.8 Insert mounting base into the on/off valve and secure with set screw. 4.9 Install the shower pipe assembly to on/off valve, position diverter body and on/off valve body so shower pipe is plumb (vertical).
- Page 13 4.10 Push diverter valve body over supply nipple until flush against fitting. Remove covering of 3M Tape and apply pressure to mount for 30 seconds by pushing firmly against the wall. To ensure proper adhesion, allow one hour before using your Shower pipe system and keep area around the mount as dry as possible for the first 24 hours.
- Page 14 4.12 OPTIONAL: Secure mounting base with permanent wall anchors. Mark hole locations in mounting base. Drill 11/4" deep holes using 6mm (1/4") masonry/tile drill bit. Insert wall anchors(not included) and secure mounting base with screws. CAUTION: LIVE PLUMBING IN WALL 4.13 Slide escutcheon over diverter valve body and slide escutcheon over on/off valve body.
- Page 15 4.14 Position shower pipe parallel to wall by sliding diverter valve body on supply nipple. Secure diverter valve body to supply nipple with set screw; Sliding on/off valve body on mounting base and secure it to mounting base with set screw; 4.15 Push escutcheons onto finish wall and seal with silicon sealant.
- Page 16 4.16 Loosen set screw on diverter valve body and adjust the shower arm to desired position. 4.17 Secure swivel joint onto bottom of on/off valve body. Swivel joint should move freely side to side. CAUTION : DO NOT OVERTIGHTEN...
- Page 17 4.18 Insert flow restrictor and rubber washer into ends of shower head. 4.19 Tighten shower head securely to shower arm.
- Page 18 4.20 Connect hex head of shower hose end to swivel joint. 4.21 Connect tapered end of shower hose to hand shower.
- Page 19 4.22 Place hand shower into adjustable hanger(holder). 4.23 Install Finish...
- Page 20 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
