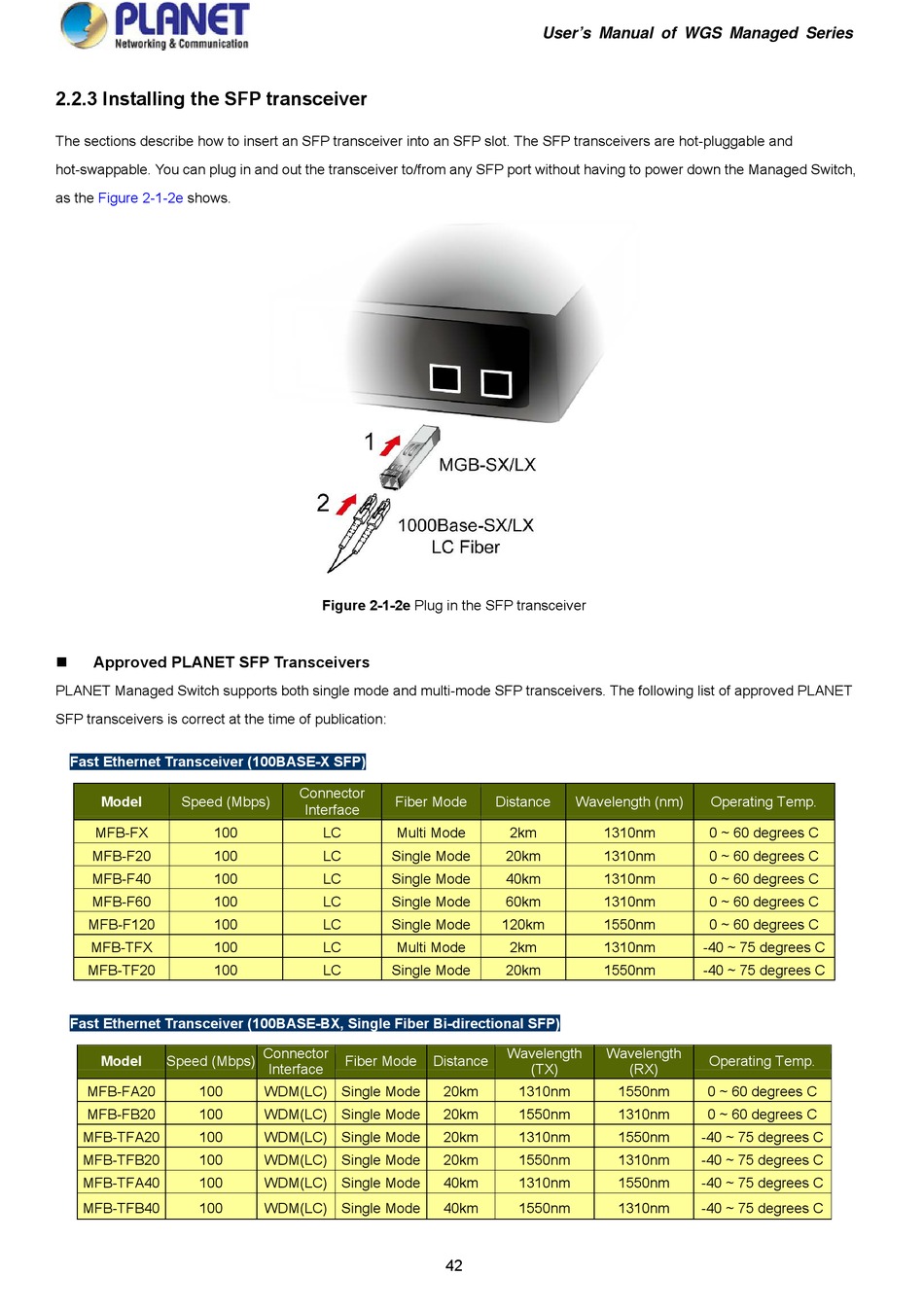

2.2.3 Installing the SFP transceiver

The sections describe how to insert an SFP transceiver into an SFP slot. The SFP transceivers are hot-pluggable and
hot-swappable. You can plug in and out the transceiver to/from any SFP port without having to power down the Managed Switch,
as the Figure 2-1-2e shows.
Approved PLANET SFP Transceivers

PLANET Managed Switch supports both single mode and multi-mode SFP transceivers. The following list of approved PLANET
SFP transceivers is correct at the time of publication:
Fast Ethernet Transceiver (100BASE-X SFP)
Model Speed (Mbps)
MFB-FX 100
MFB-F20 100
MFB-F40 100
MFB-F60 100
MFB-F120 100
MFB-TFX 100
MFB-TF20 100
Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP)
Model Speed (Mbps)
MFB-FA20 100
MFB-FB20 100
MFB-TFA20 100
MFB-TFB20 100
MFB-TFA40 100
MFB-TFB40 100
Figure 2-1-2e Plug in the SFP transceiver
Connector
Fiber Mode
Interface
LC Multi Mode
LC Single Mode
LC Single Mode
LC Single Mode
LC Single Mode
LC Multi Mode
LC Single Mode
Connector
Fiber Mode Distance
Interface
WDM(LC) Single Mode
WDM(LC) Single Mode
WDM(LC) Single Mode
WDM(LC) Single Mode
WDM(LC) Single Mode
WDM(LC) Single Mode
User's Manual of WGS Managed Series
Distance Wavelength (nm)
2km 1310nm
20km 1310nm
40km 1310nm
60km 1310nm
120km 1550nm
2km 1310nm
20km 1550nm
Wavelength Wavelength
(TX)
20km 1310nm
20km 1550nm
20km 1310nm
20km 1550nm
40km 1310nm
40km 1550nm
42
Operating Temp.
0 ~ 60 degrees C
0 ~ 60 degrees C
0 ~ 60 degrees C
0 ~ 60 degrees C
0 ~ 60 degrees C
-40 ~ 75 degrees C
-40 ~ 75 degrees C
Operating Temp.
(RX)
1550nm 0 ~ 60 degrees C
1310nm 0 ~ 60 degrees C
1550nm -40 ~ 75 degrees C
1310nm -40 ~ 75 degrees C
1550nm -40 ~ 75 degrees C
1310nm -40 ~ 75 degrees C
