Info: The most current version of these instructions can be found online at
grahamfield.com.
SAFETY GUIDELINES - PLEASE READ BEFORE USE
WARNING: Important: Read and understand these instructions before installing or
using the 2960B Bariatric Trapeze. Ensure that the Trapeze is installed as described
in the following paragraphs before use. If you do not understand any part of these
warnings, cautions or instructions, contact a healthcare professional for direction in
the use of this product. If the Trapeze is not properly installed, personal injury and/or
property damage could result.
WARNING: The fixed trapeze, when used in conjunction with a bed, can assist an
individual weighing up to 600 lb.
WARNING: If components are damaged or missing, contact your GF authorized
distributor immediately. DO NOT use substitute parts.
WARNING: Notice for California Customers- California Proposition 65 WARNING:
This product contains a chemical known to the State of California to cause cancer
and reproductive or developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper installation, assembly or use of this product.
INTENDED USE
The 2960B Bariatric Trapeze is intended to assist in repositioning oneself in bed.
WARNING: The Trapeze is intended to be used ONLY as an assistive device — that is,
to enable patients to more easily and safely reposition themselves. It is not intended
to bear entire body weight.
ASSEMBLY
Trapeze Assembly - Refer to Picture on Next Page
Tools needed:
/
" wrench, blade screwdriver
9
16
2960B-INS-LAB-RevF17

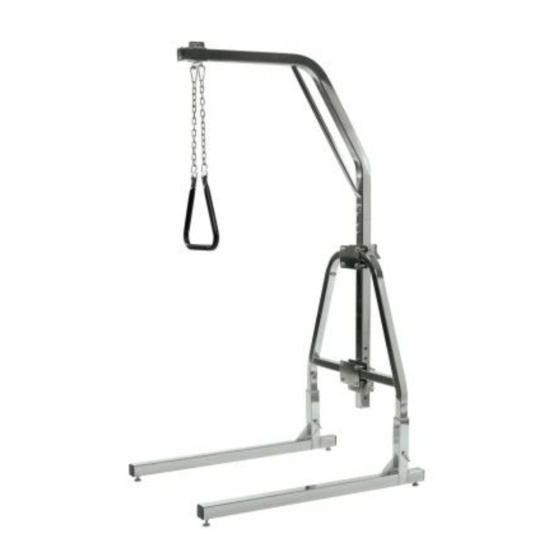

2960B: BARIATRIC TRAPEZE:
ASSEMBLY AND OPERATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.
1
Advertisement
Related Manuals for Graham Field Lumex 2960B
Summary of Contents for Graham Field Lumex 2960B
- Page 1 2960B: BARIATRIC TRAPEZE: ASSEMBLY AND OPERATION INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE USE Info: The most current version of these instructions can be found online at www. grahamfield.com. SAFETY GUIDELINES - PLEASE READ BEFORE USE WARNING: Important: Read and understand these instructions before installing or using the 2960B Bariatric Trapeze.
- Page 2 1. Use screwdriver to remove the screw, labeled in picture at lower right, at top end of trapeze arm. 2. Slide bracket onto trapeze arm with chains downward as shown at lower right. 3. Adjust bracket to desired position; use the Assemble Bolts, Washers T-screw on top of the bracket to tighten it.
- Page 3 TRAPEZE OPERATION WARNING: Before use, ensure that trapeze is correctly and securely assembled, and that all clamps and fasteners are tight. WARNING: The trapeze is intended to be used ONLY as an assistive device — that is, to enable patients to more easily and safely reposition themselves. It is not intended to bear entire body weight.
- Page 4 ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL RESPECTS.
