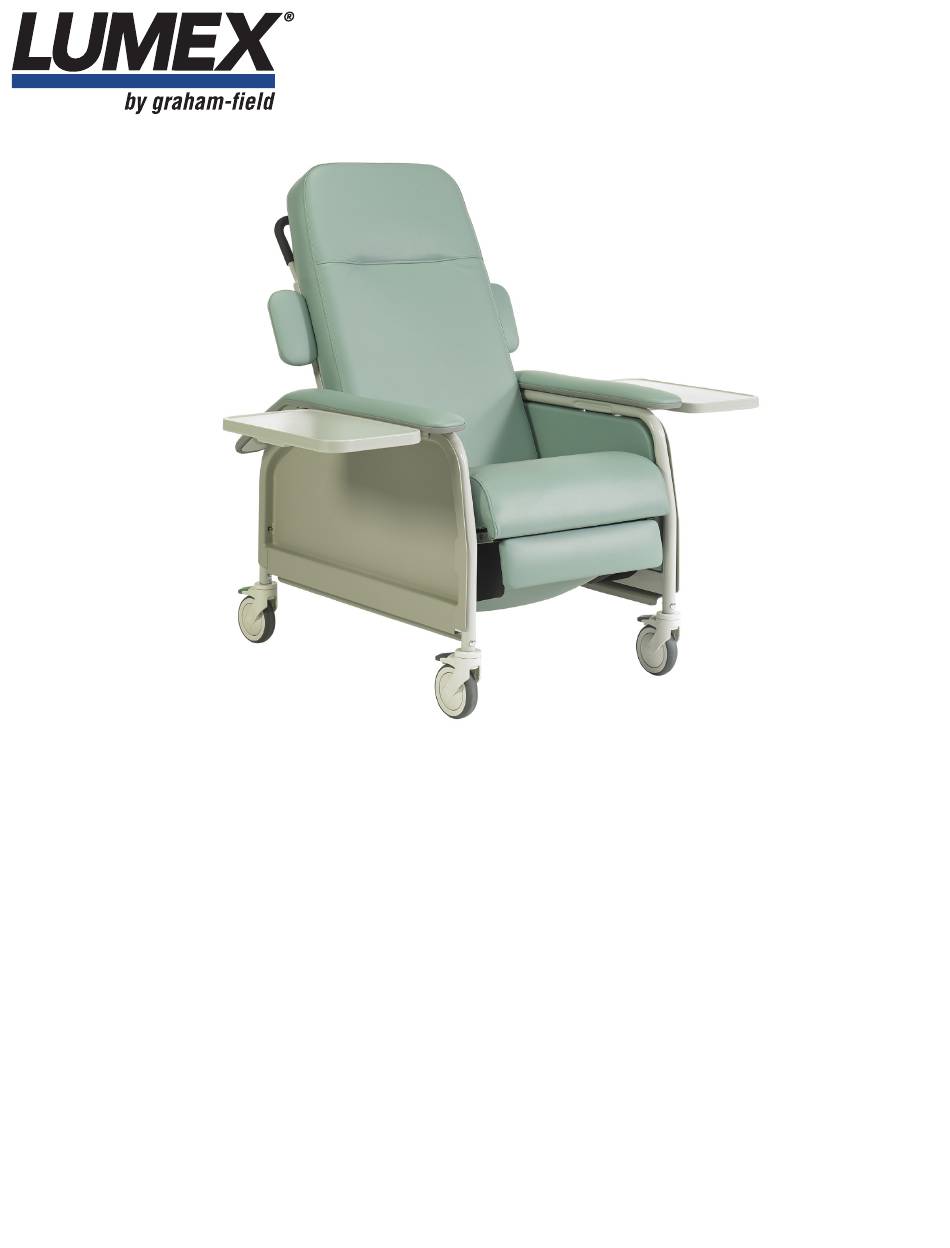

- Page 1 C LI NI CAL CARE R EC LI NE RS SE R I ES FR 57 7 R G , F R57 7 R GH (W ITH HE AT & MASSAGE) , FR 577RG HO ( W IT H H E AT O NLY ) ASS EM BLY A ND O P E RATI NG INSTR UCTI O NS SAVE THIS MANUAL FOR FUTURE USE.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ...................................3 INTENDED USE ................................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ..............3 WARNINGS ................................3 ASSEMBLY ....................................5 UNPACKING ...................................5 PRODUCT DESCRIPTION .............................5 UPHOLSTERED BACK ASSEMBLY ........................5 OPERATION ..................................8 TENTE CASTERS ................................8 ® SIDE TABLE OPERATION ..............................8 TO RAISE TABLE ..............................8 TO LOWER TABLE ..............................8 SIDE PANEL OPERATION ..............................9 TO REMOVE SIDE PANEL ............................9... -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex Clinical Care Recliners Series FR577RG (Models FR577RG, FR577RGH, and FR577RGHO). Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, please call Graham-Field / Lumex Technical Support at 1.770.368.4700. - Page 4 WARNING: This product has a maximum weight capacity of 350 lb (158.76 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times to prevent unwanted movements. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back upholstered seat upholstered armrest padded push handle... - Page 6 3. Remove cardboard shipping retainers and tape from around gas spring cylinder. Rotate the gas spring hinge section so that it is perpendicular to the upholstered back, as shown at right. gas spring hinge Rotate HInge panel tabs side panel 4.
- Page 7 8. Raise the upholstered back to vertical position. Tuck the plastic skirt at rear of upholstered back behind cross brace of seat frame. Align the hinges at the bottom of the gas spring with the holes in the U-brackets on the seat frame cross brace.
-
Page 8: Operation
OPERATION WARNING: Disconnection of the Device: In case of emergency, always disconnect the device by removing the power cord plug from the power outlet. TENTE CASTERS ® WARNING: Casters must be locked at all times to prevent unwanted movements. black actuator tab green actuator tab All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE. -
Page 9: Side Panel Operation
SIDE PANEL OPERATION panel tabs For easy cleaning and access to the side panel side / underside of the recliner, Lumex Clinical Care Recliners feature easy-to- remove side panels. To Remove Side Panel Depress the two push buttons located on the lower sides of frame. -
Page 10: Third Position (Second Recline Position)
First Recline Position (TV Position) Third Position (Second Recline Position) The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. To Achieve Third Position / Second Recline Position: Second Recline Position (Full Recline Position) •... -
Page 11: Gas Spring Troubleshooting Guide
GAS SPRING TROUBLESHOOTING GUIDE Info: The gas spring has been pre-adjusted at the factory. The gas spring on your recliner provides counterbalancing forces, and is self-locking for infinite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the padded push handle on the back of the recliner, shown at right. -
Page 12: Lumex Fr577Rgh With Heat And Massage Feature
RECLINERS WITH HEAT AND MASSAGE OR HEAT ONLY FEATURE HEAT AND MASSAGE: FR577RGH; HEAT ONLY: FR577RGHO INSTALLATION AND OPERATING GUIDE WARNING: Important! Read and understand these instructions before assembling or using the Specialty Healthcare Seating Heat and Massage / Heat Only Unit. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. -
Page 13: Heat And Massage Installation Instructions
Handheld Heat & Massage Power Cord Handheld Heat Only Power Cord Pendant Connectors Connector Pendant Connectors Connector Connector Connector Heat and Massage Feature — Heat Only Feature — Control Module and Transformer Unit Control Module and Transformer Unit Showing All Connections Correctly Made Showing All Connections Correctly Made 2. - Page 14 ball lock pin left side table 2. Remove the left side table, shown at right, from the recliner to prevent damage to it during setup: Withdraw the ball lock pin, shown at right, and set ball lock pin and table aside. 3. Place a protective cover or drop cloth on your workbench or floor to protect the recliner frame finish and upholstery.
-
Page 15: Heat And Massage Unit Operation Instructions For Gen 3 Unit
Heat and Massage Unit Operation Instructions for Gen 3 Unit 1. Plug the power cord into any grounded outlet. Heat and Massage Handheld Pendant 2. The Heat and Massage Unit is operated using the handheld pendant, shown above. Faceplate Selector Switch, Heat and Massage Handheld Pendant 3. - Page 16 4. Press the left switch to start the Massage function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 17: Heat And Massage Unit Troubleshooting Guide
Heat and Massage Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check brakes on casters. • Check and clean lock recline mechanism. •... -
Page 19: Cdc Recommendations
The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions. Results may vary under actual conditions. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. -
Page 20: Disposal And Key To Symbols
• Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offi ces). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. •... -
Page 21: Ce Certification
CE CERTIFICATION (SERIES FR77RG ONLY) Info: CE Certifi cation applies ONLY to Series FR577RG Clinical Care Recliner. CE Certifi cation DOES NOT apply to Clinical Care Recliners with Heat and Massage (Series FR577RGH) or Clinical Care Recliners with Heat Only (Series FR577RGHO). GF Health Products, Inc. -
Page 22: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (GF) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 23: Index
INDEX Assembly 5 NOTICE statement, significance 3 Cable tension, adjusting 11 Operation 8 Care and maintenance 18 Caster, directional (swivel) 8 Product description 5 Caster, locking 8 Caster operation 8 CAUTION statement, significance 3 Recliner operation 9 CE Certification 21 Side panel, install 9 Disposal 20 Side panel operation 9... - Page 24 Manufactured By: GF Health Products, Inc. 1 Graham-Field Way, Atlanta, GA 30340 Made in USA +1 770.368.4700 © 2012, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Lumex is a registered trademark of GF Health Products, Inc. The most current and complete product information can be found on our website.
