APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

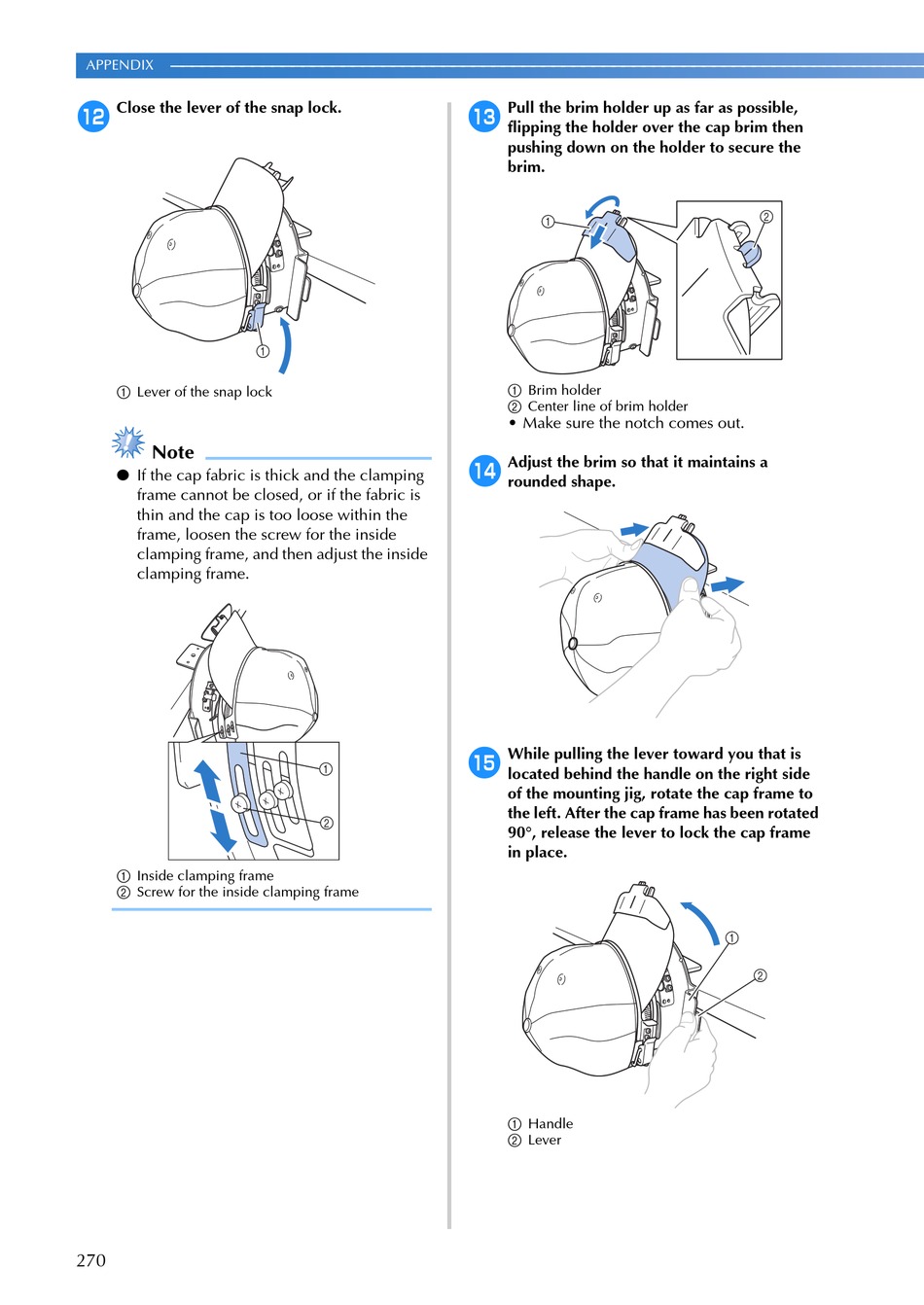

b Close the lever of the snap lock.
1 Lever of the snap lock
Note
● If the cap fabric is thick and the clamping
frame cannot be closed, or if the fabric is
thin and the cap is too loose within the
frame, loosen the screw for the inside
clamping frame, and then adjust the inside
clamping frame.
1 Inside clamping frame
2 Screw for the inside clamping frame
270
c Pull the brim holder up as far as possible,
flipping the holder over the cap brim then
pushing down on the holder to secure the
brim.
1 Brim holder
2 Center line of brim holder
• Make sure the notch comes out.
d Adjust the brim so that it maintains a
rounded shape.
e While pulling the lever toward you that is
located behind the handle on the right side
of the mounting jig, rotate the cap frame to
the left. After the cap frame has been rotated
90°, release the lever to lock the cap frame
in place.
1 Handle
2 Lever
