WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
— Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas fitter.
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
must be installed for the protection of children and
other at-risk individuals.
Installation & Maintenance Manual
®
C
US
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.

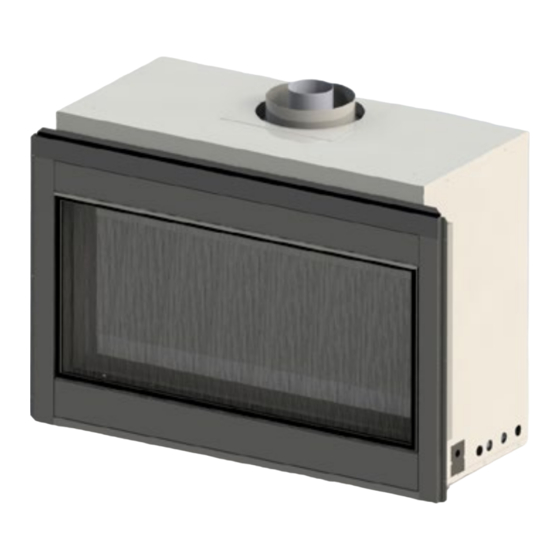

Phenom
INDOOR GAS FIREPLACE
P38, PL38 25,000 BTU/hr Natural Gas or Propane Gas
P42, PL42 32,000 BTU/hr Natural Gas or Propane Gas
P52, PL52 40,000 BTU/hr Natural Gas or Propane Gas
NOTICE
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for suture reference.
CAUTION
Installation and service must be performed by a qualified installer,
service agency or the gas fitter.
DANGER
Read and understand this manual. Improper installation, adjustment,
alteration, service or maintenance can cause serious injury, property
damage or even death. For assistance or additional information
consult a qualified installer, service agency or the gas supplier.
WARNING
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
XG0199 - 170223
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Montigo Phenom PL38
Summary of Contents for Montigo Phenom PL38
- Page 1 Installation & Maintenance Manual Phenom INDOOR GAS FIREPLACE P38, PL38 25,000 BTU/hr Natural Gas or Propane Gas P42, PL42 32,000 BTU/hr Natural Gas or Propane Gas P52, PL52 40,000 BTU/hr Natural Gas or Propane Gas NOTICE ® Installer: Leave this manual with the appliance. Consumer: Retain this manual for suture reference.
-
Page 2: Safety Alert Key
Introduction Congratulations on your purchase of a Montigo Fireplace. With over 30 years of experience, Montigo is committed to providing you with a gas fireplace that is not only a beautiful addition to your space, but that is also designed and manufactured to the highest safety, reliability and engineering standards. -
Page 3: Table Of Contents
General Contents Safety Alert Key ......................2 Fuel Type ......................32 Introduction ......................... 2 Gas Pressure ...................... 32 Section A: Before You Begin ................4 Section 5-3: GAS CONNECTION ................ 32 Installation Checklist ................... 4 Section 6: Finishing ....................33 Standard Installation Checklist ................ -
Page 4: Section A: Before You Begin
NOTICE • Should it be impossible to meet the venting requirements laid out in Section 3: Venting, please contact your Montigo dealer regarding the use of a Montigo Power Vent. Do not use this appliance if any part has been under water. -
Page 5: Standard Installation Checklist
General Standard Installation Checklist This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained within this installation manual. Customer Date Installed: Install Address: Location of Fireplace: Installer: Model (circle one): P38DFN-F, P38DFL-F, PL38DFN-F, PL38DFL-F, Dealer Phone: P42DFN-F, P42DFL-F, PL42DFN-F, PL42DFL-F, P52DFN-F, P52DFL-F,... -
Page 6: Rating Plate Sample
General Rating Plate Sample Figure 1.1 Rating Plate for PL52 XG0199 - 170223... -
Page 7: Section 1: Product Dimensions
General Section 1: Product Dimensions P/PL 38 Dimensions 4 " 5" 8" 16 " 8 " 8 " 4 " 16 " 16 " 2 " 8 " 4 " 16 " 16 " 2 " 8 " POWER SUPPLAY 2"... -
Page 8: P/Pl 52 Dimensions
General P/PL 52 Dimensions 1203 8 " 10" 5" 16 " 8 " 16 " 1362 8 " 16 " 1194 47" 22" 16 " 16 " POWER SUPPLY 16 " SUPPLY 8 " 39" 4 " 16 " 16 " 1321 8 "... -
Page 9: Section 2: Framing
Installation Section 2: Framing In Wall and Corner Dimensions WARNING When this appliance is installed directly on ANY combustible other than wood flooring (carpet, vinyl, etc.). It must be installed on an equivalent wood or metal panel. This material must extend the full width and depth of the appliance. - Page 10 Installation Combustible Header Combustible Combustible Header Shelf Combustible Shelf Non Combustible Non Combustible Stud 1/2'' Above Top Stud 1/2'' Above Top RHS101 For 5/8 venting RHS102 RHS102 For 5/10 venting RHS102 RHS101 REAR VENT REAR VENT NG ONLY N.G ONLY 90° Elbow Figure 3.c Combustible Framing for shelves over the fireplace, Rear vent. Figure 3.d Combustible Framing for shelves over the fireplace, Top vent. P38, PL38 P42, PL42 P38, PL38...
-
Page 11: Clearances
Figure 4.f Securing the Nailing Flange Extension. The supplied nailing extension must be placed along the top edge of the Do not install nailing flange when installing a Montigo surround, use fireplace and securely fastened into place, as shown in figure 4.c. Note: equivalent non-combustible. -
Page 12: Section 3: Venting
Installation Section 3: Venting Montigo supplies a variety of direct venting and termination options. Flue Cover Plate Flue Cover Plate The direct vent termination location MUST be selected such that it is the highest point in the venting assembly. It should also be selected such... -
Page 13: (Pvtk1Ss)
Installation Section 3-2: Installing a Roof Mounted Direct Vent Termination for 5''/8'' (PVTK1SS) This section applies to installations where the direct vent termination will be roof mounted. Section 3-2-1: Venting Layout PVTK1 Termination Selection of components and details of venting lay out should adhere 2' min Storm collar to the following guidelines:... -
Page 14: 5"/ 8" Piping For P52 And Pl52 Units
Installation 5"/ 8" Piping for P52 and PL52 units PVTK1 FOR USE OF 5"/ 8" PIPING YOU MUST HAVE A MINIMUM VERTICAL PVTK1 Termination Termination RISE OF 8 FEET FROM THE TOP OF THE UNIT. Storm collar 2' min. Roof flashing PVTK1 Termination PVTK1 Termination PEXT Sections... -
Page 15: Section 3-3: Installing A Wall Mounted Termination 5''/8
NOTE: If subject to a highly corrosive environment A Termination with a MOSR Frame is installed from the inside of the i.e. Seaside, Montigo recommends using Stainless Steel Termination. structure. These are commonly used in high-rise construction. -
Page 16: Installing A Wall Mounted Termination 5''/10
This section applies to installations where the direct vent termination will be wall mounted. NOTE: If subject to a highly corrosive environment i.e. seaside, Montigo recommends using stainless steel termination. Installation of termination with built in frame under 8' from the top of the unit. -
Page 17: Section 3-3-1: Venting Layout: Wall Mounted Termination
Installation Section 3-3-1: Venting Layout: Wall Mounted Termination PROPANE GAS VENT RUN Top Venting Graph P38, PL38: Measure the vertical height from the fireplace hearth to the centre of Acceptable vent run the termination and the horizontal run from the fireplace flue collar within non-shaded area. -
Page 18: Rear Venting Graph P38, Pl38
Installation Rear Venting Graph P38, PL38: PROPANE GAS VENT RUN Measure the vertical height from the fireplace hearth to the centre of the termination and the horizontal run from the fireplace flue collar Acceptable vent run to the wall flange of the termination. Plot on the Venting Graph Figure within non-shaded area. -
Page 19: Top Venting Graph P42, Pl42
Installation NATURAL GAS VENT RUN Top Venting Graph P42, PL42: Measure the vertical height from the fireplace hearth to the centre of Acceptable vent run the termination and the horizontal run from the fireplace flue collar within non-shaded area. to the wall flange of the termination. Plot on the Venting Graph Figure 10 or 10.b with an 'X'. -
Page 20: Rear Venting Graph P42, Pl42
Installation Rear Venting Graph P42, PL42: NOTE: 12'' MAX horizontal Measure the vertical height from the fireplace hearth to the centre of run with no vertical lift the termination and the horizontal run from the fireplace flue collar PXT Extension PXT Extension to the wall flange of the termination. Plot on the Venting Graph Figure 11 or 11.b with an 'X'. -
Page 21: Top Venting Graph (5''/8'') P52, Pl52
Installation Top Venting Graph (5''/8'') P52, PL52: 44" Max. (NG) 7’ Max. for min Vertical Measure the vertical height from the fireplace hearth to the centre of the termination and the horizontal run from the fireplace flue collar Heat Heat Shield to the wall flange of the termination. Plot on the Venting Graph Figure Shield Flex section Flex section... -
Page 22: Top Venting Graph (5''/10'') P52, Pl52
Venting Graph for Rear vent, wall mounted terminations 56'' Note: If power venting, vent run must be reduced to 5"/8" or 4"/7". Contact 20'' your Montigo dealer to discuss power venting options. Unacceptable vent run within shaded area. 168 180 Horizontal Run (In.) Figure 13. -
Page 23: 45° Corner Installation 5''/8
Installation 45° Corner Installation 5''/8'': 45° or less Corner Installation 5''/8'': Attach a PEL-45 (45° elbow) directly onto the flue collar. Cut the PXT-20 Use a PTO-4 termination and a PFL-1 or PFL-2 (12" or 24" compressed to suit, and attach it to the PEL-45. Slide the fireplace into position and length) and a frame, if appropriate. -
Page 24: Section 3-3-2: Venting Components
RXT - 20 (20" f/f Section) possible hot spots. REXT - 1 (12" f/m Section) • Montigo recommends the use of a flex section for the first section of REXT - 2 (24" f/m Section) REXT - 3 (36" f/m Section) venting connected directly to the fireplace, offering greater flexibility REXT - 4 (48"... -
Page 25: Section 3-3-2.2: Alternate Venting Components
Installation Section 3-3-2.2: Alternate Venting Components 5"/8" The following components are approved for use with Montigo products. Please contact your local Montigo dealer for further information. Component Montigo P/N Duravent P/N ICC P/N MetalFab P/N Selkirk P/N Flexmaster P/N NOTES Duravent adaptor is designed... -
Page 26: Flexmaster As Alternate Venting
Flexmaster Flex includes all and any prepackaged vent kits by Montigo containing Flexmaster venting. All Montigo prepackaged vent kits may be used on any Montigo residential unit fireplace. When using a Power vent you must use Montigo pipe only. VERTICAL THROUGH THE ROOF: HORIZONTAL FLEX RUN REQUIREMENTS: Follow venting graph for each model as required. -
Page 27: Section 3-3-3: Heat Shields 5''/8
Installation Section 3-3-3: Heat Shields 5''/8'' Installing a Wall Mounted RHS8 heat shield Installing a Wall Mounted RHS101 Heat shield The RHS8 Heat shield CANNOT be used when the Termination is WITHIN The RHS101 heat shield MUST be used where the RHS8 Termination (36" Min. horizontal and 46" Min. vertical) from the fireplace, or directly (Figure 15.c and 15.d) CANNOT be used. -
Page 28: Heat Shields 5''/10'' (For P52Df And Pl52Df)
Installation Heat Shields 5''/10'' (For P52DF and PL52DF) Installing a Wall Mounted RHS102 Heat shield Installing a Wall Mounted RHS104 Heat shield The RHS102 Heat Shield (Figure 16 and 16a) MUST be used in all Installing a Wall Mounted RHS 104 Heat shield. The RHS104 Heat shield cases where the venting passes through a wall. -
Page 29: Section 4: Wiring
Installation Section 4: Wiring BATTERY BATTERY PACK PACK 1.5V AA type 1.5V AA TYPE 1.5V AA type 1.5V AA TYPE SPARK SPARK GREEN GREEN 1.5V AA TYPE 1.5V AA type MAIN WHITE WHITE MAIN Power BLACK Power 1.5V AA type 1.5V AA TYPE BLACK BLACK... -
Page 30: Installation Of The Wall Switch
Figure 18. Wiring diagram for PL38DF, PL42DF, PL52DF with SIT Proflame BASIC Electronic Ignition Installation of the wall switch Montigo supplies 14' of low voltage wire to be plugged into the control board. Connect to a standard single pole ON/OFF switch to the location of your choice. -
Page 31: Pod - Pilot On Demand
Installation POD - Pilot on Demand What is POD and CPI mode? Installing the CPI Jumper Cable This fireplace is equipped with an “On Demand” intermittent pilot 1). Access the control box. ignition system (IPI) which also includes a continuous pilot ignition (CPI) mode with an integrated seven day timer. In IPI mode, the pilot will light before the main burner, when the appliance is turned on using a wall switch, remote or from a thermostat. -
Page 32: Fuel Type
• To check pressures, control valves have a provision to remove a 1/8” N.P.T. plug to be fitted with a hose barb. • Montigo requires a service shut off valve be located in an accessible 4 " location to isolate the gas supply. -
Page 33: Section 6: Finishing
Installation Section 6: Finishing Finishing Around the Fireplace P42,PL42 COMBUSTIBLE MANTLES AND FACINGS Combustible mantels and mouldings may be safely installed over the top and on the front of the fireplace provided that they do not project Combustible header beyond shaded area shown in Figure 21.a - 21.c Combustible construction allowed in shaded area Fireplace Facing... -
Page 34: Finishing The Fireplace
Installation Finishing the Fireplace Flush Finishing the Fireplace NOTE: National Canadian Gas Association mantel test requirements A noncombustible finishing material may be installed over the face of are for fire hazard prevention to combustible materials. the unit as shown below. Please be aware that the temperature of the fireplace face will be extremely hot and could be subject to cracking in New technology, to meet consumer and government demands for the seams of concrete board or tile installed directly on the face. -
Page 35: Section 7: Screen Installation And Removal
Installation Section 7: Screen Installation and Removal Removing the Screen Replacement Screens: Grasp each top outer corner of the screen with your thumb and finger For replacement part order numbers, please refer to section and pull towards yourself. When the upper Screen Studs are free, lift "Replacement Parts:" on page 46. the screen at an angle from the lower slots from which the Screen Bottom Tabs are held. -
Page 36: Section 8: Installing & Removing The Door
Installation Section 8: Installing & Removing the Door Removing the door: STEP 4: The doors are removed in a few simple steps. Follow these below to Ensure the tool is firmly remove the horizontal access panel, unlatch the door buckles and, in the lower end of the remove the door. Replace in reverse order. slot, (as shown), Then pull toward you. -
Page 37: Section 9: Installing The Accessories
Figure 24.c Completed Speckled Stone installation WARNING: This appliance is intended for use only with the included Montigo burners and accessories. Never install or add any additional or alternative media, rock wool or other material in this appliance. The use of additional or alternative materials may pose potential safety hazards, damage to the appliance, and void manufacturer’s warranty. -
Page 38: Optional Log Set
Installation Optional Log Set The Fireplace has the option of installing a drift wood log set. Once the base media of fireglass, firestones, or speckled stones has been placed the log set can be installed. Ensure logs are securely placed and will not tip or fall. Log Kit Installation Log kits used to create sequence shown: 1 LGS58, 1 LGS59 LGS59... - Page 39 Installation Ports Figure 26.e Figure 26.h STEP 8: Place log 2 from LGS59 in front of pilot. Place log 3 from STEP 11: Completed Installation LGS59 on top of log 2. See figure 26e. Ports Figure 26.f Figure 26.i STEP 9: Place log 4 from LGS59 in front of ports just to the right STEP 12: Watch for sooting for 30 minutes.
- Page 40 Operation DANGER HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and must be installed for the protection of children and other at-risk individuals.
-
Page 41: Remote Operation (Optional For Pl Units)
Operation Remote Operation (Optional for PL Units) The Proflame 2 System consists of the following elements: 1. Pilot Assembly Blue back lit LCD display 2. Proflame Gas Valve. 3. Proflame 2 Control Module On/Off key 4. Wiring Harness Thermostat key 5. - Page 42 Operation Initializing the System for the first time Temperature Indication Display 1. Set master override switch to off position. With the system in the "Off" position, press the Thermostat Key and the Mode Key at the same time. Look at the LCD screen on 2.
- Page 43 Operation Remote-Flame Control Room Thermostat (Remote Control Operation) When you turn on the fireplace it starts on high. The proflame 2 has six (6) flame levels. Each time you press the Down Arrow Key The Remote Control can operate as a room thermostat. The once the flame height will reduce by one step.
- Page 44 Operation Disabling Thermostat Fan Speed Control Fan Speed Control The fireplace is equipped with optional hot air circulating fans. The fireplace is equipped with optional hot air circulating fans. Some jurisdictions and bedroom installations require the The speed of the fans can be controlled by the Proflame system. The speed of the fans can be controlled by the Proflame system.
-
Page 45: Section 10: Cleaning And Maintenance
Operation Section 10: Cleaning and Maintenance General Pilot Burner Adjustment. 1. Locate Pilot Adjustment Screw. (See figure 28) • Have the fireplace and installation inspected yearly. The inspection 2. Adjust pilot screw to provide properly sized flame as shown. must include, but is not limited to, the following: 3. -
Page 46: Replacing Light Bulbs
Contact the local dealer for repairs or service bulbs are not working If your fireplace still does not operate correctly, consult your local Montigo dealer. All service and repairs should be performed by a qualified Technician. All spare parts, optional fans, and optional trim finishes are available from your local Montigo dealer. XG0199 - 170223... -
Page 47: Replacement Parts
Appendix Replacement Parts Replacement Parts List - Proflame 1 Part P38DF P42DF P52DF NG Gas Valve (with stepper motor) RGC3033 RGC3033 RGC3033 Propane Gas Valve (with stepper motor) RGC3034 RGC3034 RGC3034 NG Pilot Assembly RPA035 RPA035 RPA035 Propane Pilot Assembly RPA036 RPA036 RPA036 Ignitor Probe Assembly RGC3075 RGC3075 RGC3075... -
Page 48: Appendix A: Venting Terminations
Appendix Appendix A: Venting Terminations Covered Covered Alcove Detail Alcove Detail Vinyl Siding 2’ 2’ 2’ 2’ 17.5’’ 29.5’’ 11.5’’ 17’’ Must use Vinyl Siding Termination Shield Location Canada* USA** clearance to the termination frame above grade, veranda, porch, deck, or balcony 12 inches 12 inches clearance to top of doors or operable windows... -
Page 49: Appendix B: Warranty
(collectively referred to herein as "The Companies"), warrants the If the components of the appliance covered by this warranty Montigo gas appliance (referred to herein as 'the appliance') to are found to be defective within the time frame stated (see The... -
Page 50: Appendix B: Warranty Continued
Montigo dealer (www.Montigo.com) or contact Montigo direct at techsupport@ montigo.com. Ensure you have your sales receipt and the model and serial number of your appliance. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF If you cannot locate the installing dealer, or nearest dealer/ distributor, you must notify The Companies in writing. -
Page 51: Appendix C: Amendment
Appendix Appendix C: Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as 4. INSPECTION. The state or local gas inspector of the side wall follows: horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes... -
Page 52: Indoor Fireplace In Protected Outdoor Applications
Appendix Indoor fireplace in protected outdoor applications This fireplace may be installed into outdoor locations provided they are suitably protected from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing, Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. - Page 53 Notes XG0199 - 170223...
- Page 54 Installation & Maintenance Manual PL38DF, PL42DF, PL52DF PL38DF, PL42DF, PL52DF P38DF, P42DF, P52DF P38DF, P42DF, P52DF Single Sided Gas Fireplace Single Sided Gas Fireplace XG0199 - 170223...
