Warning:
Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance

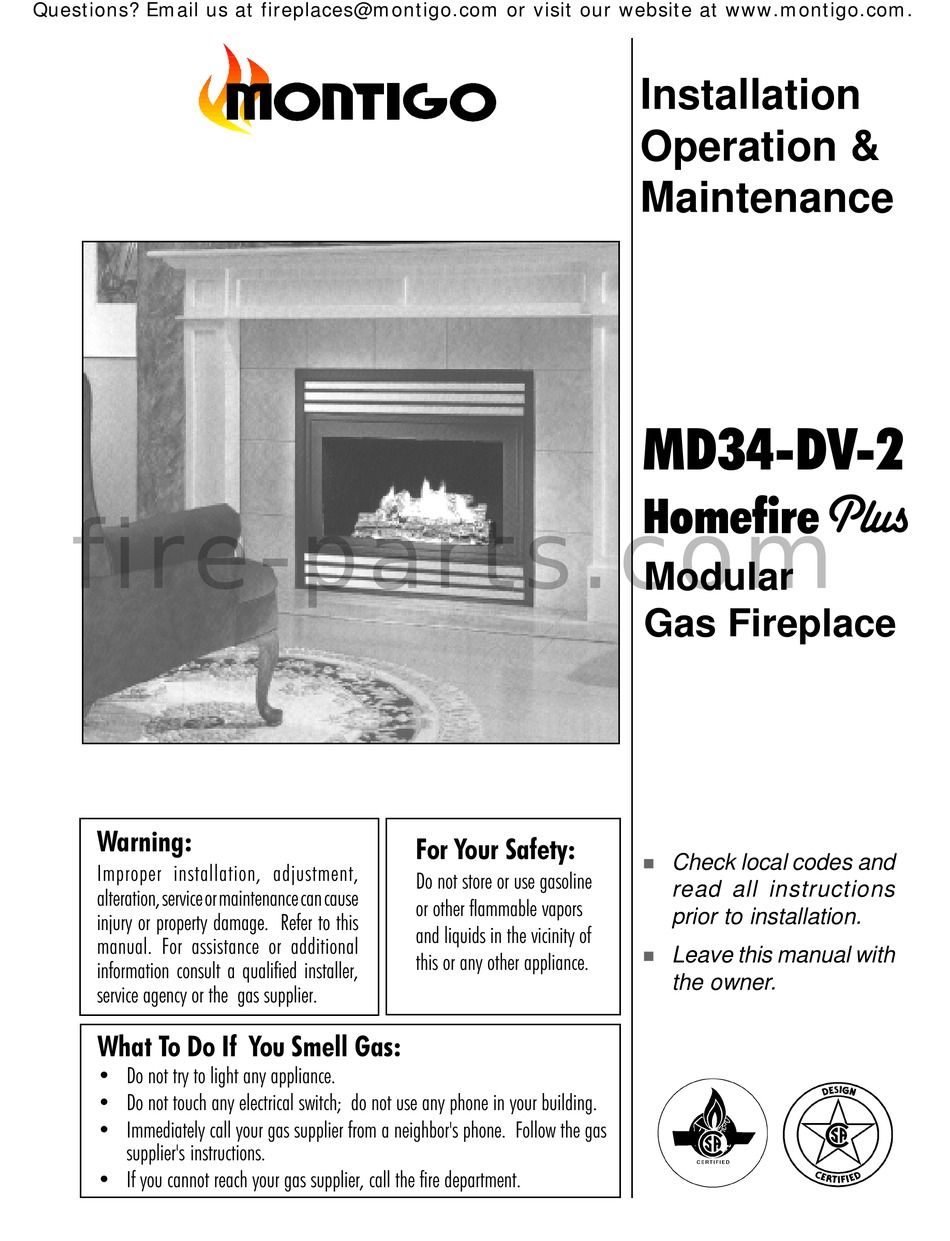

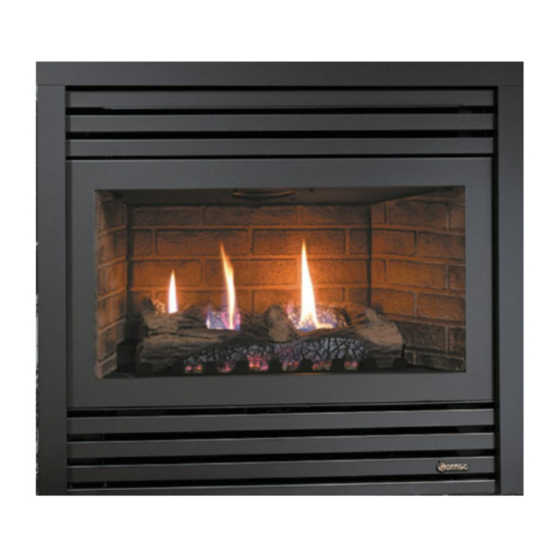

MD34-DV-2
Homefire
Modular
Gas Fireplace
Check local codes and
n
read all instructions
prior to installation.
Leave this manual with
n
the owner.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Montigo Homefire Plus MD34-DV-2
Summary of Contents for Montigo Homefire Plus MD34-DV-2
- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance MD34-DV-2 Homefire f i r e - p a r t s . c o m Modular Gas Fireplace Warning: For Your Safety: Check local codes and...
-
Page 2: Table Of Contents
Installing the Logset ............ 12 Warranty and Installation Information: Removing and Installing the Insert ......13 The Montigo warranty will be voided by, and Montigo disclaims any responsibility for, the following actions: Removing and Installing the Door ......13 Modification of the fireplace and/or components including Direct-Vent Operation .............. -
Page 3: Installation
MD34-DV-2 Homefire Installation Installing The Fireplace Shell Framing The fireplace may be installed in any location that maintains proper clearances to air conditioning ducts, electrical wiring and plumbing. Safety, as well as efficiency of operation, must be considered when selecting the fireplace location. Try to select a location that does not interfere with room traffic, has adequate ventilation, and offers an * When sheetrock is accessible pathway for Direct Vent installation. -
Page 4: Installing The Gasline
Use only certified Montigo vent components. (Use of other the main operating gas valve is located behind the removable brass trim parts will void the Montigo warranty, and may impede the at the bottom of the unit and need only be attached to the gas line with an operation of the fireplace.) -
Page 5: Terminations
MD34-DV-2 Homefire Installation Installing Terminations with Built-In Frames Installing Heat Guards over Terminations MTO-3F MTKOG Frame the termination opening to 11" x 11". Ensure that the two long mounting brackets are facing the bottom of the termination. (See inset). This will provide more Fasten the termination to the studs using a minimum of 4 heat protection at the top of the termination, where tempera- screws. -
Page 6: Top Vent Through-The-Wall Installations
MD34-DV-2 Homefire Installation Top Vent Top Vent Venting Runs Heat Shields Due to high flue temperatures, heat shields For the MD34-DV-2, there are two types of installations: A) Through- are required on all 34 Series Modular The-Wall Installations and B) Vertical (Through-The-Roof) Installations. Direct Vent installations (except those with A) Through-The-Wall Installations vertical terminations) at the point where the... - Page 7 MD34-DV-2 Homefire Installation Top Vent Example 1: 150" max. For our shortest venting configuration use components A and F 30" max. (see Figure 9a). Heat Shield Termination Termination Solid Sections Heat Shield Exterior MEL-90F/F Elbow Wall Flex Section Hearth Figure 10. Extended Installation using a combination of solid and flex venting.
-
Page 8: Top Vent Through-The-Roof Installations
MD34-DV-2 Homefire Installation Top Vent B. Vertical (Through-The-Roof) Installations Vertical Terminations must be installed: A maximum of two offsets (each offset has two 90° bends) may be • minimum 2' (two feet) above the highest point where made and shall not exceed total length of 25% of the vertical vent height, when measured center to center of piping. -
Page 9: Rear Vent Through-The-Wall Installations
MD34-DV-2 Homefire Installation Rear Vent Rear Vent Venting Runs The MD34-DV-2 Rear Vent has three possible installations which do 2. 45° Corner Installation. not require vertical lift: Attach an EEL-45 (45° elbow) directly onto the flue collar. Cut the EXT-18 to suit, and attach it to the EEL-45. Slide the 1. -
Page 10: Rear Vent Multi-Elbow Installations
MD34-DV-2 Homefire Installation Rear Vent B. Multi-Elbow Installations Installation Of Rear Vent DV For more diffiicult installation situations, the MD34-DV-2 Rear Vent may MD34-DV-2 Rear Vent versions are supplied with an EXT-18 (female/ be installed with 2 - 90° elbows and up to 15' of horizontal run. If using female) section. -
Page 11: Facing
MD34-DV-2 Homefire Installation Finishing Around the Fireplace We recommend careful consideration be given to the effects of Combustible mantels and mouldings may be safely installed over elevated mantel temperatures which may be in excess of product the top and on the front of the fireplace provided that they do not design, for example: candles, plastic or pictures. -
Page 12: Installing The Logset
MD34-DV-2 Homefire Installation E m be r tray B a ck b u rn er tu be Wiring for the optional Fan Kit F ro nt b urne r tub e B a ck log All 34 Series Modular fireplaces feature an optional fan kit for F ro nt lo g circulating heat into the living space. -
Page 13: Removing And Installing The Insert
MD34-DV-2 Homefire Installation Removing and Installing Removing and Installing the Insert the Door You may remove the insert to protect it from theft and damage Removing the Door: during construction. Remove the trim (as described on the next page) to access the door 1. - Page 14 MD34-DV-2 Homefire Operation - Model MD34-DV-2 MD34-DV-2 with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
- Page 15 MD34-DV-2 Homefire Operation - Model MD34-DV-I-2 MD34-DV-I-2 with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
-
Page 16: Operation
MD34-DV-2 Homefire Operation Maintenance Lighting Instructions CAUTIONS See pages 14 and 15. Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with a vacuum. Adjusting the Burner Doors and logs can get very hot. Handle only when cool. Raising or lowering the Flame Height The MD34-DV-2 fireplace is equipped with an adjustable burner, General... - Page 17 MD34-DV-2 Homefire Maintenance Gas Control Valve Troubleshooting MD34-DV-I-2 HONEYWELL SV 9500 /SV9600 Power Generator Troubleshooting Sequence Pilot Adjustment Screw NOTE: Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. START INSET CHECK: · Turn Gas Supply off ·...
-
Page 18: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. -
Page 19: Termination Locations
MD34-DV-2 Homefire Appendix A - Termination Locations f i r e - p a r t s . c o m A = clearance to the termination frame above grade, veranda, porch, deck, or M = clearance to mechanical air supply inlet balcony [16 inches (41 cm) minimum] [*6 feet (1.8 m) minimum] N = †... - Page 20 - p a r t s . c o m XG0106B Rev. 07 - 07/02 Montigo Del Ray Corp. Canadian Heating Products Inc. Langley, BC V4W 4A1 Ferndale, WA 98248...
