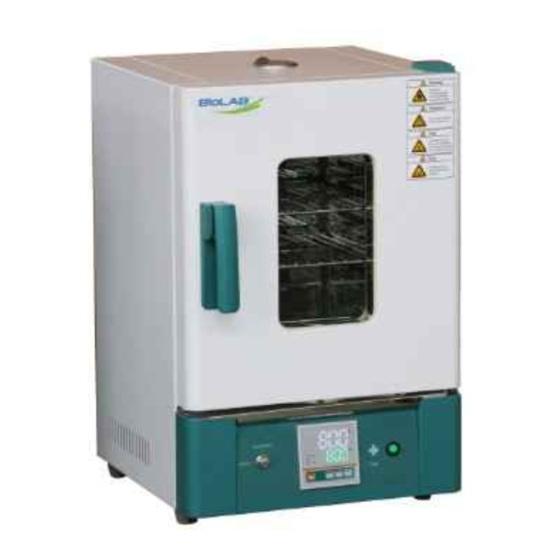

  • Page 1 Operation Manual BIDP 100 series Dual Purpose Incubator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.

  • Page 2: Table Of Contents

    Dual Purpose Incubator Index 1. Introduction................................03 2. Characteristics..............................03 3. Product structure diagram and parameters.....................04 4. Working conditions............................06 5. Attentions................................08 6. Operation instruction............................07 7. Fault treatment..............................08 8. Meter operation instruction..........................09 9. Meter Instructions of BIDP-205........................17 10. Fault treatment..............................21 www.biolabscientific.com...

  • Page 3: Introduction

    Dual Purpose Incubator Introduction The new Dual Purpose Incubator is widely used in labs of industrial enterprises, scientific research institutions, colleges and health and medicine units for drying, baking, melting, sterilizing and curing etc. Characteristics This equipment serves a double purpose as drying oven and incubator. 1.

  • Page 4: Product Structure Diagram And Parameters

    Dual Purpose Incubator Product structure diagram and parameters 1.Structure diagram 2. Main technical parameters Model BIDP-101 BIDP-102 BIDP-103 BIDP-104 BIDP-105 Cycle Forced convection Mode Temp. Incubator: RT+5-80℃; Drying oven:80-300℃ range Temp. Resolution 0.1℃ Ratio Temp.Moti ±1℃ Temp. Incubator:±1.0℃ Uniformity Drying oven:±2.5% Inner Mirror Stainless Steel Chamber...
  • Page 5 Dual Purpose Incubator Power 0.8kW 1.2kW 1.6kW 2.3kW 3.0KW rating Exhaust Φ28mm top(with function of test hole) hole Temp. control PID Two temperature section intelligent PID mode Timer 0-9999min(with timing wait function) Operation Fixed temperature operation, function timing function, auto stop. Sensor Pt100 Inner...

  • Page 6: Working Conditions

    Dual Purpose Incubator Shelf Shelf frame 3. Temperature profile Note: according to the different model type, the time of warming up is different Working conditions The drying oven work under the following conditions: 1. Temperature ranges between 5~40 ; ℃ 2.

  • Page 7: Attentions

    Dual Purpose Incubator Attentions 1. Install the outer ground protection to ensure safety of machine and experiment; supply power as the machine nameplate required. 2. This equipment is forbid to use in inflammable and explosive, poisonous and strong corrosive experiments. 3.

  • Page 8: Fault Treatment

    Dual Purpose Incubator 4. Working time: Decide the drying time according to humidity of sample. Note: for example, if the sample humidity is big, the sample on each layer should not be too thick to ensure intensive drying of sample. 5.

  • Page 9: Meter Operation Instruction

    Dual Purpose Incubator 2. Detached temperature 2. Change the detached limiter sensor is broke. temperature limiter sensor Temperature 1. Exhaust port is fully 1. Shut off the exhaust port. cannot reach opened 2. The container is 2. Decrease amount of sample to the setting overfilled, hot air cannot improve convection condition.
  • Page 10 Dual Purpose Incubator Button function 1) 【 SET 】： In normal state, press this button to enter the setting state. 2) ◄ 【 /AT 】： SHIFT” button. In the setting state, click this button to shift the set value. “ In normal state, press this button for 6 seconds to enter the auto-tuning selection state.
  • Page 11 Dual Purpose Incubator 1-4. When over temperature alarm, the buzzer beeps continuously, "ALM" indicator is lit, the heat output is cut off. If the over temperature alarm is caused by the change of the temperature setting value, "ALM" indicator is lit, but the buzzer does not beep. 1-5.
  • Page 12 Dual Purpose Incubator time function. Differential Adjustment of differential (0 ～ 1000S) 200 time function. Control The temperature control cycle. (1 ～ 60S) cycle It is usually used to correct Temperature (-50.0 ～ 50.0 ) ℃ errors in low temperature deviation measurement.
  • Page 13 Dual Purpose Incubator 0: Continue to control the Timer end (0 ～ 1) temperature mode 1: Stop temperature control Automatic judge door Door (0 ～ 1) opening. parameter 0: invalid; 0: valid Power Percentage of max heating (0 ～ 100%) 100 percentage power output.
  • Page 14 Dual Purpose Incubator Wiring “ ” ： Represents the charged output, should be directly connected to the load. “ ” ： Represents the switch output without charge. 4. AT function When the temperature control effect is not ideal for system tuning. Self tuning process temperature can have bigger overshoot, the users in a system setting before please consider this factor.
  • Page 15 Dual Purpose Incubator Parameter list-1: Parameter Instruction of the (Setting range) Name indicator Parameter’s function factory set value when Lc=3 ,then we Password can see and modify parameters When temperature is beyond “SP+AL”, the Alarming Alarm indicator turns (0 ～ 100 ) ℃...
  • Page 16 Dual Purpose Incubator Note 1 ： If the selection of relay output, heating control cycle should be selected in 20 seconds, the other models for 5 seconds. Note2 ： if FCD-300X series, a timing function for 2, other models for 0. Parameter list-2: Parameter Instruction of the...

  • Page 17: Meter Instructions Of Bidp-205

    Dual Purpose Incubator Meter Instructions of BIDP-205 1. Brief introduction 1.Shape size ： 170mm*60mm ； 2.Range of temperature:1) FCH-20xx ： 0 ～ 400.0℃ ； 2) FCD-31xx ： 0 ～ 100.0℃ ； Range of time: 0 ～ 9999 Minute(Hour); 3.Temperature display value of basic error: < 0.5%; 4.Working environment ：...
  • Page 18 Dual Purpose Incubator 4. Operation and using 1) Temperature and time settings: Press the “Set” button, the controller runs into the temperature setting state. Re-press the “Set” button, the controller runs into the time setting state. In setting state, you can use the “◄”...
  • Page 19 Dual Purpose Incubator 6. Internal parameters settings Press the “Set” button for 3 seconds, controller will display the password prompt “Lc”. Adjust the password to the required value, then press the “Set” button again, it will run into the internal parameter setting state. if press the “Set” button for another 3 seconds, it will return to the running state.
  • Page 20 Dual Purpose Incubator Note 1 ： If the selection of relay output, heating control cycle should be selected in 20 seconds, the other models for 5 seconds. Parameter list-2: Parameter Instruction of the (Setting range) Name indicator Parameter’s function factory set value when Lc=9,then we can see Password and modify parameters...

  • Page 21: Fault Treatment

    Dual Purpose Incubator 7. Wiring Fault treatment Phenomena Causation Treatment Method 1.No power 1.Plug is poor contact or line 1. Connect the plug and supply broke line. 2. Fuse protector is broke. 2. Change the fuse protector. 2. No 1. Low setting temperature 1.
  • Page 22 Dual Purpose Incubator 3. No Detached tem. limiter is low ℃ above setting temperature temperature. rising alarm 2. Detached temperature 2. Change the detached limiter sensor is broke. temperature limiter sensor 4. Temperature 1. Exhaust port is fully 1. Shut off the exhaust port. cannot reach the opened setting point.
